ECKELMANN Case Controller UA 4 E Series - Contr. Type UA 131 E; UA 131 E LS - Menu Tree

Firmware V3.13
21.04.2021
228/466

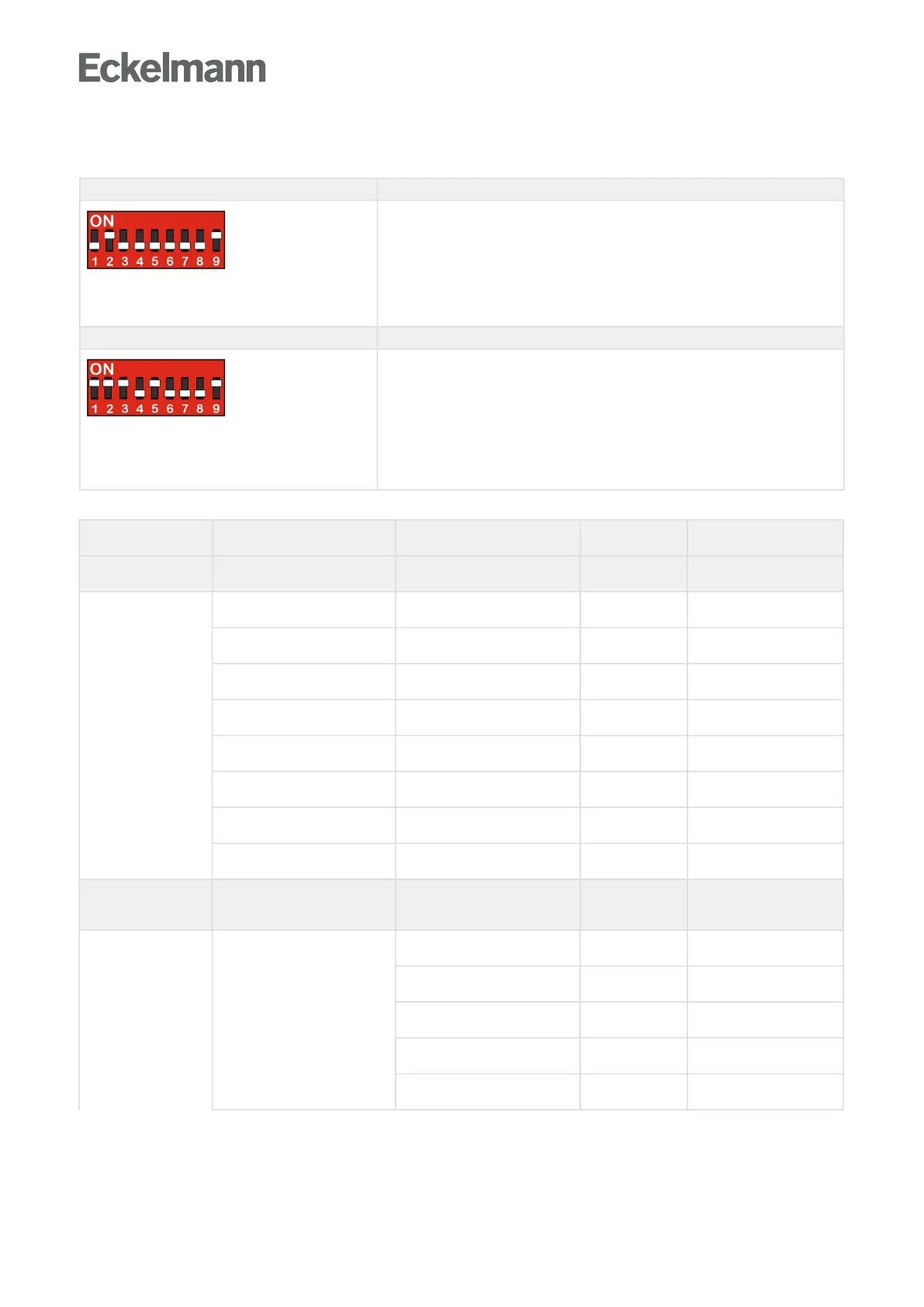

9.2 Contr. Type UA 131 E / UA 131 E LS - Menu tree
DIP switch S3 UA 131 E
1: OFF
2: ON
3: OFF
4: ON/OFF = Master-/Salve-Modus ON/OFF
5: OFF
6: ON/OFF = Funktionsweise der Analogausgänge 0..10 V
7..8: OFF
9: ON
UA 131 E LS
1: ON
2: ON
3: ON
4: ON/OFF = Master-/Salve-Modus EIN/AUS
5: ON = Betrieb mit bis zu vier Rückluftfühlern - nur UA 131 E LS
6: ON/OFF = Funktionsweise der Analogausgänge 0..10 V
7..8: OFF
9: ON
Main Menu Submenu 1 Submenu 2 Menu No. Menu Name
Actual Values 1 ACT VALUES
Temperature Sensors 1-1 TEMPERATUR
Cooling Zone 1 1-2 COOLING 1
Defrost Zone 1 1-3 DEFROST 1
Fan 1-4 FANS
Alarm 1-5 ALARM
Frame Heater 1-6 MODE
Cooling Zone 2 1-7 COOLING 2
Defrost Zone 2 1-8 DEFROST 2
Setpoints

2 SETPOINTS
Cooling 2-1 COOLING
Zone 1 2-1-1 COOLING 1
Zone 2 2-1-2 COOLING 2
Zone 1T Toggle 2-1-3 COOLING 1A
Zone 2T Toggle 2-1-4 COOLING 2A
