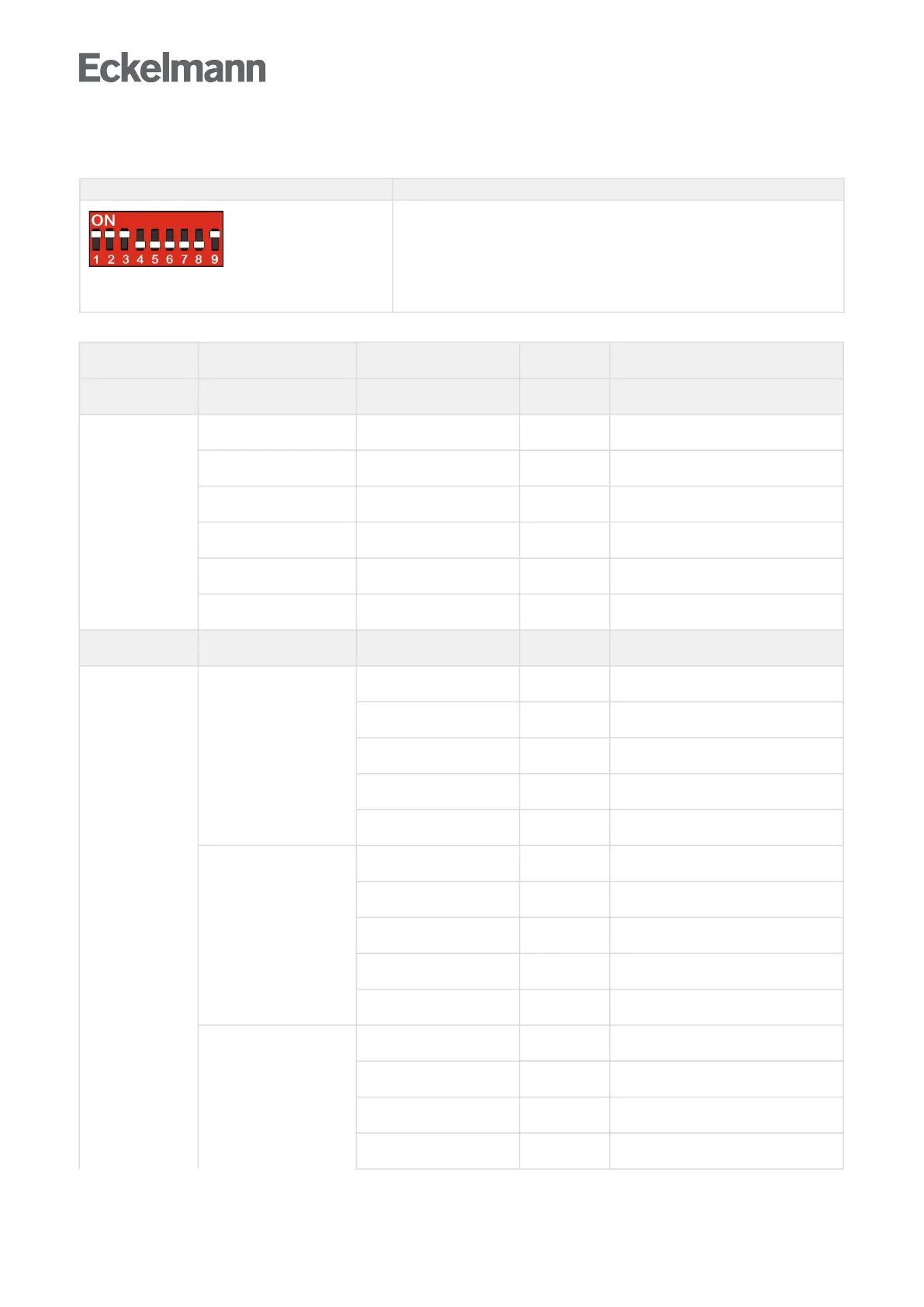

9.7 Controller type KR 160 E - menu tree
DIP switch S3 KR 160 E - only UA 400 E CC / UA 410 E AC
1: ON
2: ON
3: ON
4..5: OFF
6: ON/OFF = Funktionsweise der Analogausgänge 0..10 V
7..8: OFF
9: ON
Level 1 Level 2 Level 3 Menu No. Menu Name
Actual Values 1 ACT VALUES
Temperature Sensors 1-1 TEMPERATUR
Cooling Zone 1 1-2 COOLING 1
Defrost Zone 1 1-3 DEFROST 1
Alarm 1-5 ALARM
Cooling Zone 2 1-7 COOLING 2
Defrost Zone 2 1-8 DEFROST 2
Setpoints 2 SETPOINTS
Cooling 2-1 COOLING
Zone 1 2-1-1 COOLING 1
Zone 2 2-1-2 COOLING 2
Zone 1T Toggle 2-1-3 COOLING 1A
Zone 2T Toggle 2-1-4 COOLING 2A
Defrost 2-2 DEFROST
Zone 1 2-2-1 DEFROST 1
Zone 2 2-2-2 DEFROST 2
Zone 1T Toggle 2-2-3 DEFROST 1A
Zone 2T Toggle 2-2-4 DEFROST 2A
Alarm 2-4 ALARM
Zone 1 2-4-1 ALARM 1
Zone 2 2-4-2 ALARM 2
Zone 1T Toggle 2-4-3 ALARM 1A
