ECKELMANN Case Controller UA 4 E Series - Terminal Assignment of the 24 V DC Transistor Outputs

Firmware V3.13
21.04.2021
168/466

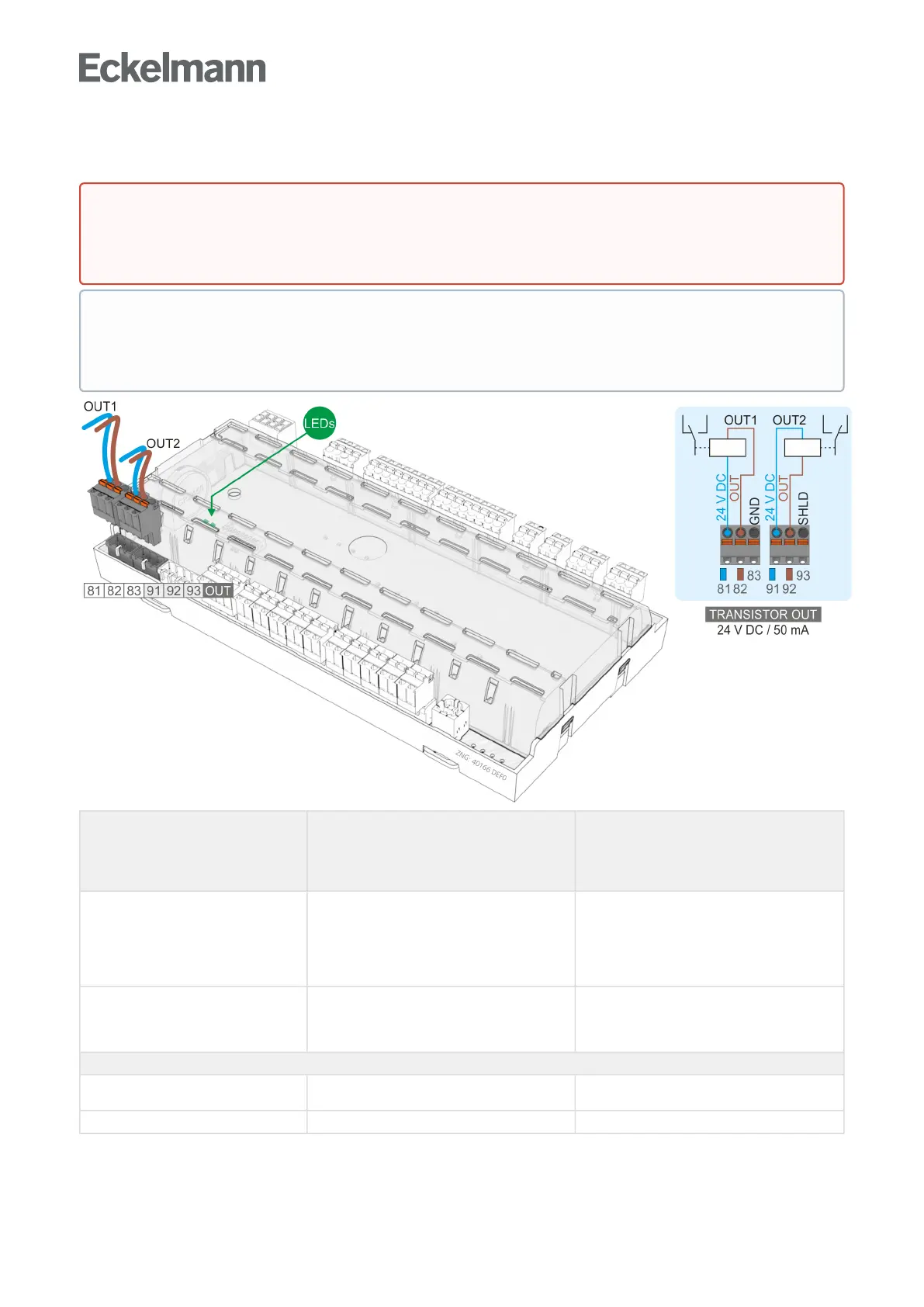

7.8 Terminal assignment of the 24 V DC transistor outputs
Controller type
Transistor output 1
81: 24 V DC / max. 50 mA
82: OUT1
83: GND
Transistoroutput 2
91: 24 V DC / max. 50 mA
92: OUT2
93: SHIELD
UA 121 E
UA 131 E
UA 131 E LS
UR 141 NE
UR 141 TE
Lighting control
(terminals 81/82)
Frame heater
(terminals 91/92)
UA 141 E Switching on and off of
external consumers
(terminals 91/92)
Only UA 410 E AC
UK 100 E –
KR 160 E  –
DANGER
Warning about dangerous electrical voltage!
If mains power is connected to the transistor outputs, this results in destruction of the controller!

ACHTUNG
Destruction of the transistor outputs!Duetothemaximumcapacityof50mAofthetransistor
outputs, 24 V DC coupling relays must be used for controlling the load.

