4 Application of UA 4xx E

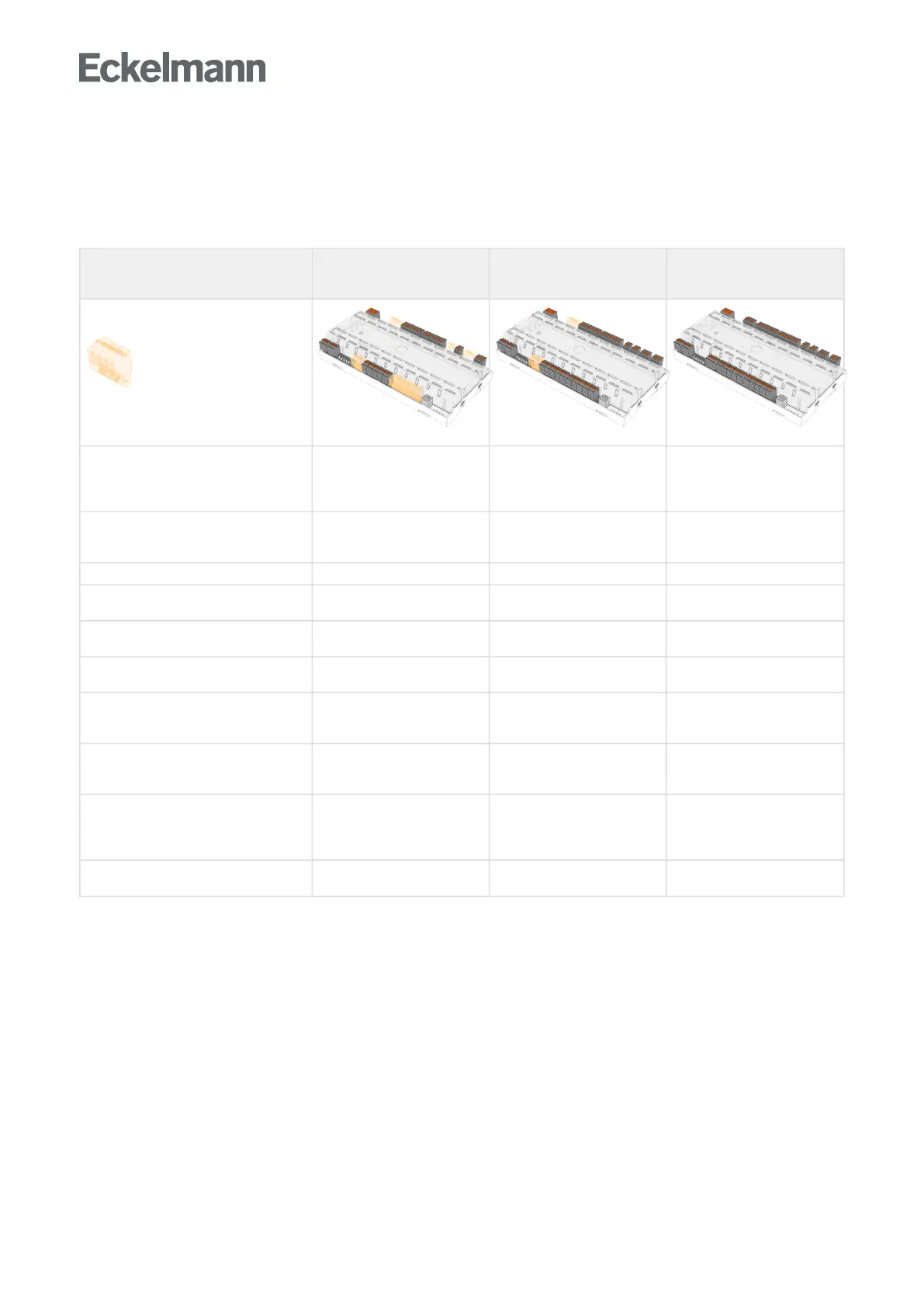

4.1 Versions
Distinguishing features of the UA 4xx E case controller for DIN rail mounting; for further details, see
chapter Hardware.
UA 401 E CC
UA 400 E CC * UA 410 E AC *
(complete design)
Mounting variants
= terminals not mounted
For details, see chapter Terminal
diagram.
Supported Temperature zones
Single-zone operation Single-zone operation
Two-zone operation
Single-zone operation
Two-zone operation
Standalone operation
For integration in the CAN bus of the
E*LDS system
•
• •
Number of temperature sensors 5 10 10
Alarm relay -
• 1
Analogue inputs 4..20 mA
-
- 2
Analogue outputs 0..10 V
-
- 2
Integrated real-time clock,
power reserve using battery (lithium cell)
-
- •
Integrated archive memory for data
recording
-
- •
Sub cooler UK 100 E / cascade
controller KR 160 E,
for details, see chapter Controller types.
- - •
Replacement controller for UA 300 E AC
-
- •
Abbreviations used
CCstandsforCAN bus and Cabinet / DIN rail mounting(C=withCANbusandC=DINrailmounting).
ACstandsforAll in one and Cabinet / DIN rail mounting(All=withCANbusandreal-timeclockandC=
DIN rail mounting).
