6.3 Terminal assignment for 230 V AC power supply

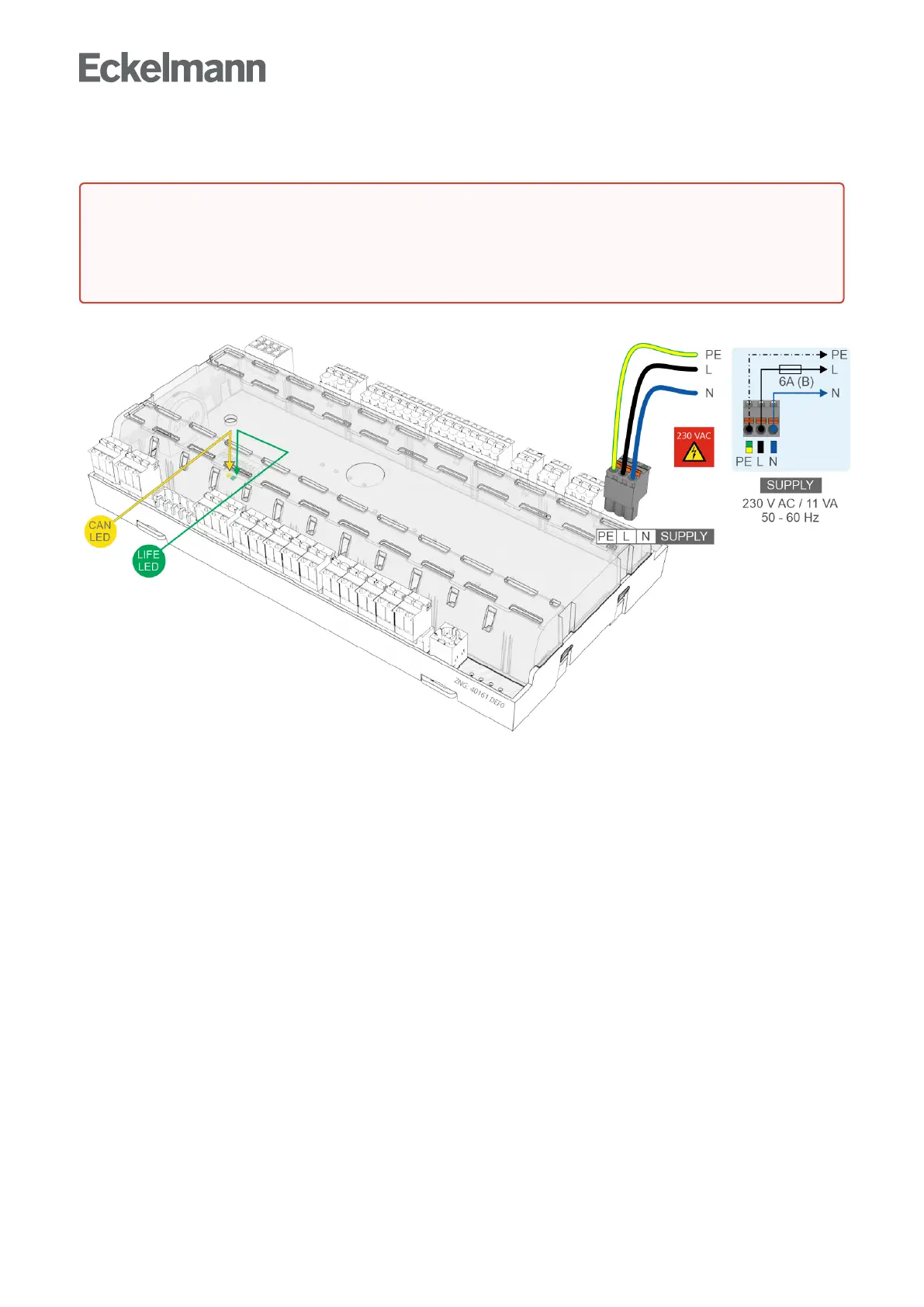

The power supply cable is connected to the case controller using the right hand terminal block PE/L/N:
The case controller can now be supplied with power. If power is being received the active lamp (LIFE LED)
flashes for approximately 10 seconds following actuation. If the case controller is also connected to the CAN
bus,thentheCANbusLEDflashes.FormoredetailsseechapterStatus LEDs.
DANGER
Warning - hazardous electrical voltage!
Danger of electric shock! BEFORE and AFTER connection it must checked that the 230 V AC
supply cable is off load!

