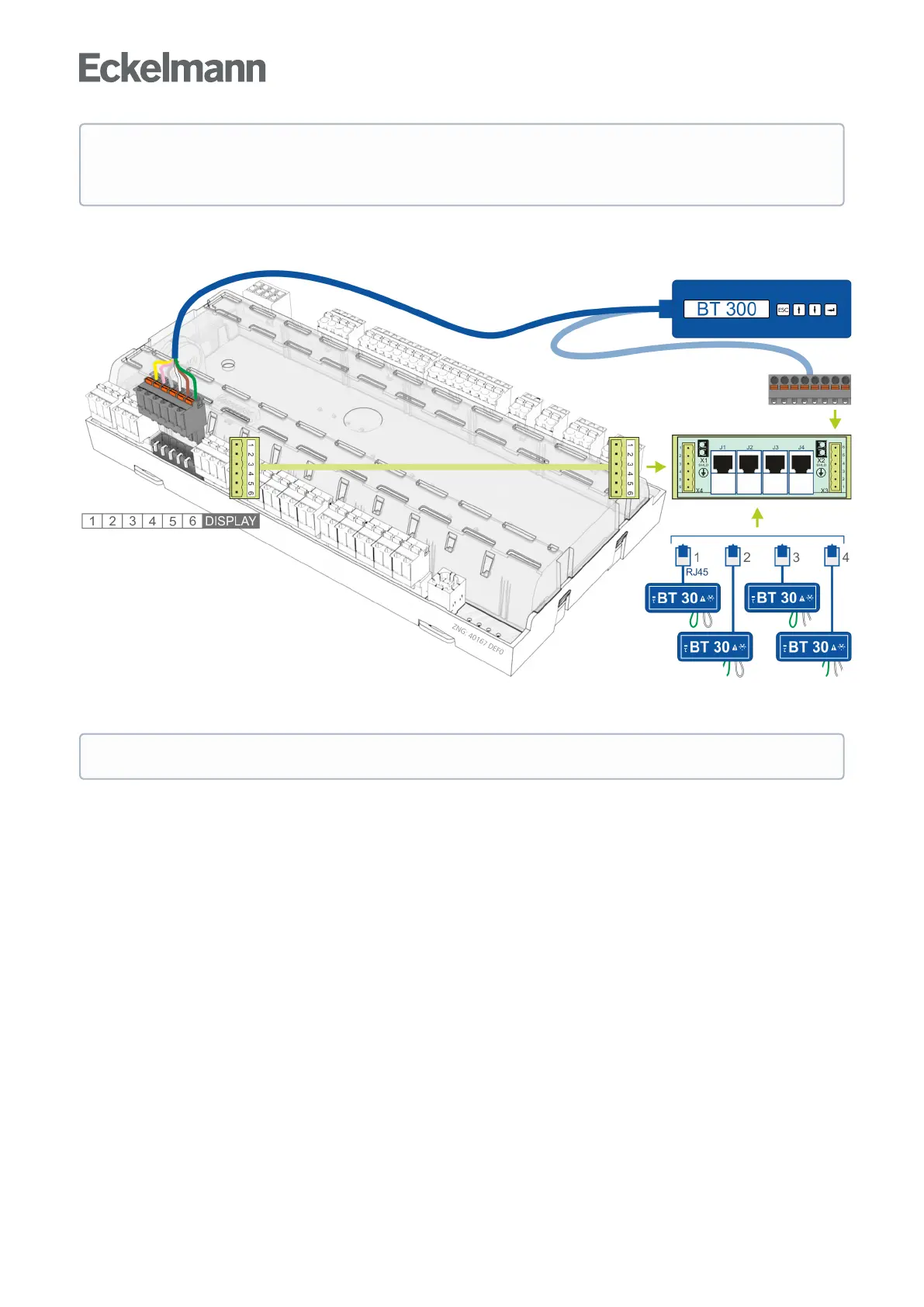

7.9 Terminal assignment of the DISPLAY interface
An operator interface of the BT 300 series (e.g. for service purposes) and/or up to four BT 30 temperature
displayscanbeconnectedtotheDISPLAYinterface.
If any transistor output is activated by the controller, the associated green LED lights; for details see
chapter Status LEDs. For further details about the function of the transistor outputs, see chapter
Function of the relay and transistor outputs.
