Serinus® 10 User Manual 3.2

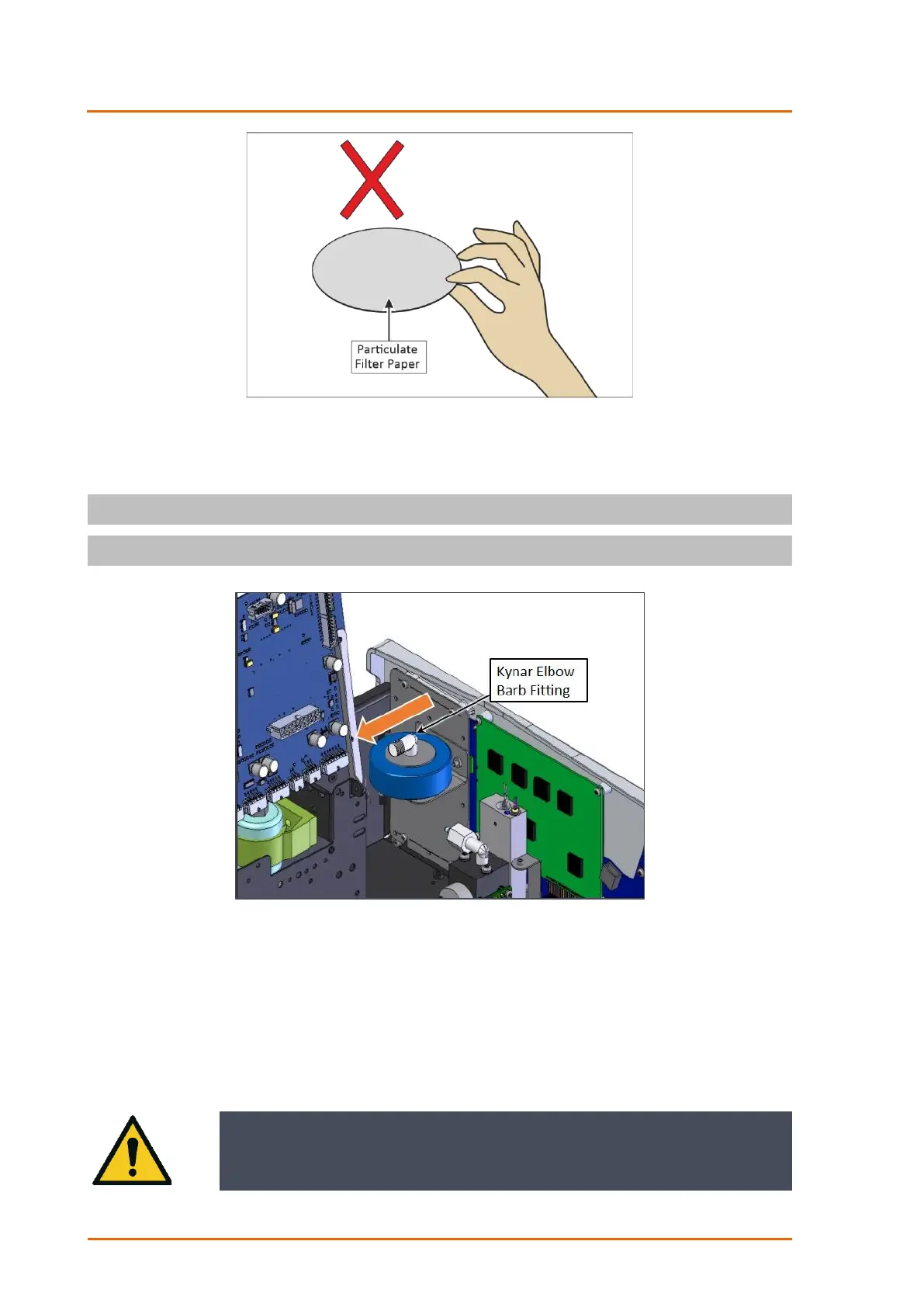

Figure 119 – Avoid to Touch Particulate Filter Paper
9. Replace the sample filter holder sealing cap and re-assembly the retaining ring by turning it
clockwise.
Note: Make sure O-ring and particulate filter paper are installed correctly
Note: Make sure that Kynar Elbow Barb Fitting is in the right direction, refer to Figure 120.
Figure 120 – Kynar Elbow Barb Fitting Direction
10. Reconnect the Kynar nut with barb adapter and tubing to the top of the sample filter holder.
11. Close the lid of the instrument and perform a leak check (refer to Section 6.4.3).
6.4.2 Clean Chassis Fan Filter
The chassis fan filter is located on the rear of the instrument. If this filter becomes contaminated with
dust and dirt it may affect the cooling capacity of the instrument.
CAUTION
Do not insert a rod or finger into the cooling fans, otherwise injury may result.
