6. Slowly move side to side and pull the detector block away from the tube removing it completely.
CAUTION
Be careful while installing or removing the tube, as it may fracture and cause
serious injury to the user.

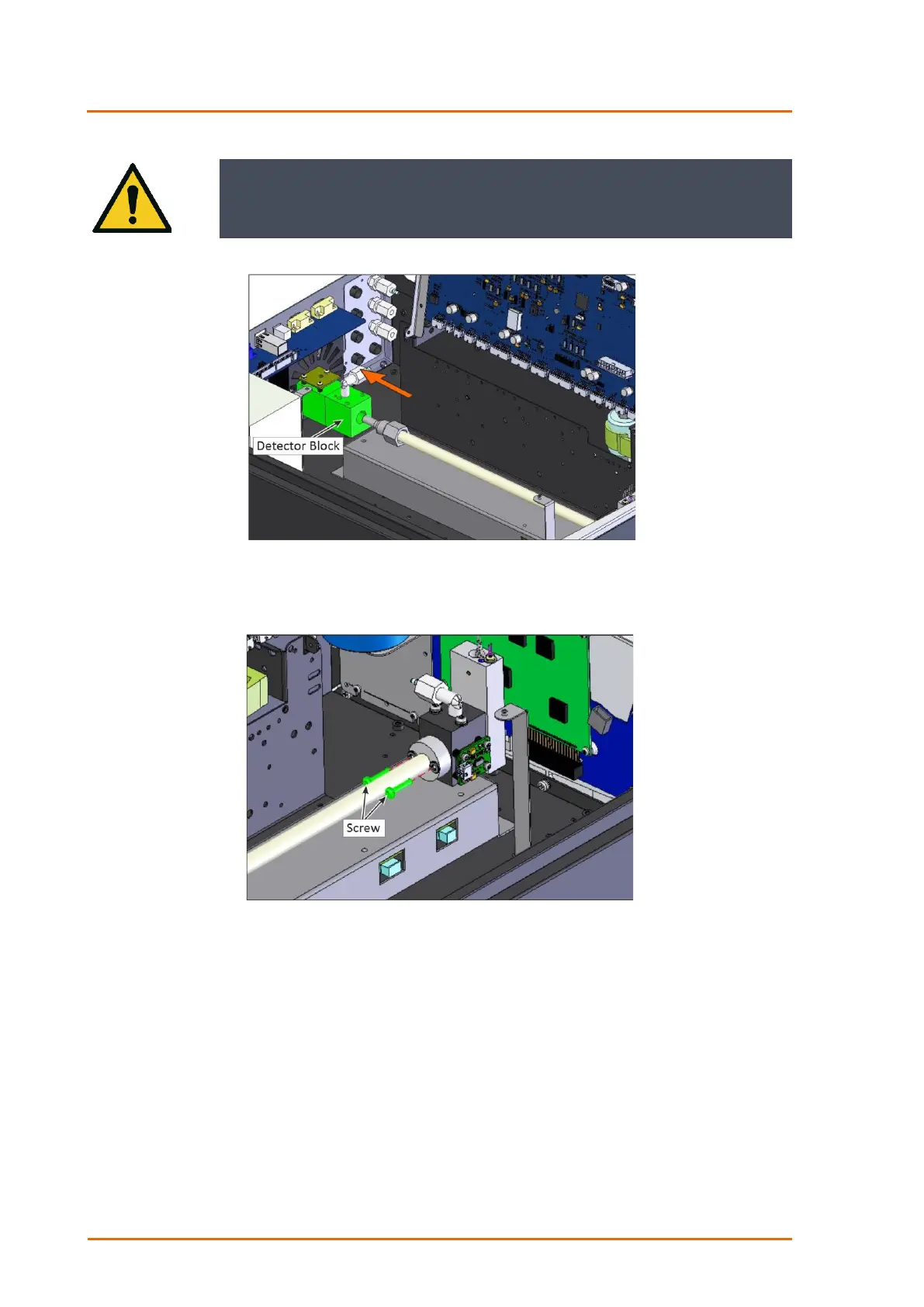

Figure 134 – Removing Detector Block from Optical Cell
7. Remove the two retaining screws at the other end of the Optical Bench (UV lamp end).
Figure 135 – Remove Retaining Screw
