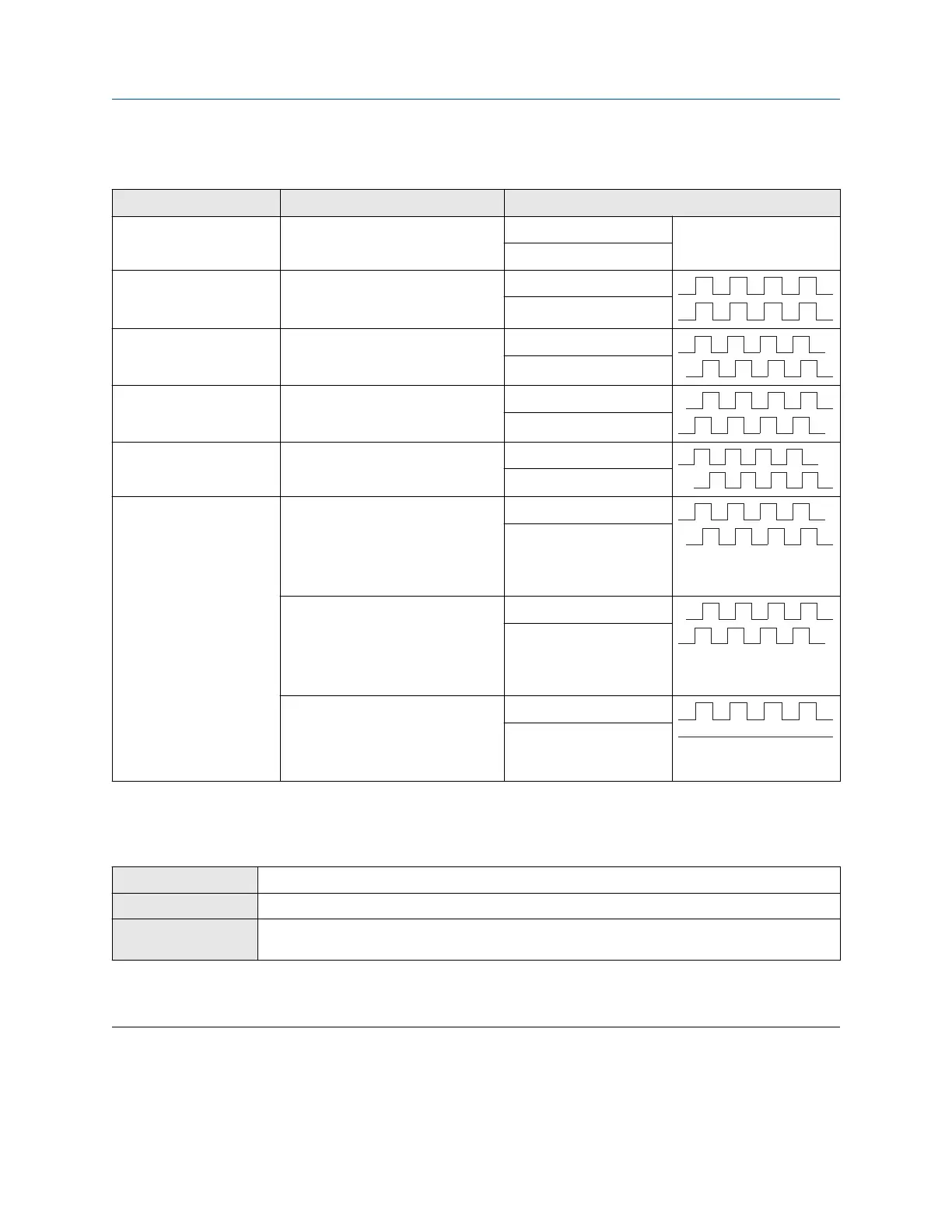

Options for Frequency Output Mode
Option Process condition and effect Channel behavior
Independent No relationship between the two
outputs
Frequency Output 1
Frequency Output 2
In-Phase
50% duty cycle
Signals are aligned Frequency Output 1
Frequency Output 2
90° Phase Shift
50% duty cycle
Frequency Output 1 leads
Frequency Output 2 by 90°
Frequency Output 1
Frequency Output 2
–90° Phase Shift
50% duty cycle
Frequency Output 1 lags
Frequency Output 2 by 90°
Frequency Output 1
Frequency Output 2
180° Phase Shift
50% duty cycle
Frequency Output 1 leads
Frequency Output 2 by 180°
Frequency Output 1
Frequency Output 2
Quadrature
(1)
50% duty cycle
Forward flow, as determined by the
setting of Sensor Direction and
actual flow direction
Frequency Output 1 leads
Frequency Output 2 by 90°
Frequency Output 1
Frequency Output 2
Reverse flow, as determined by the
setting of Sensor Direction and
actual flow direction
Frequency Output 1 lags
Frequency Output 2 by 90°
Frequency Output 1
Frequency Output 2
Fault
Frequency Output 1 performs the
configured fault action
Frequency Output 2 is driven to 0
Frequency Output 1
Frequency Output 2
(1) Quadrature mode is used only for specific Weights & Measures applications where required by law.
8.4.5 Configure Frequency Output Fault Action
Display
Menu > Configuration > Inputs/Outputs > Channel x > Frequency Output x > Fault Action
ProLink III Device Tools > Configuration > I/O > Outputs > Frequency Output x > Fault Action
Field Communicator Configure > Manual Setup > Inputs/Outputs > Channel x > Frequency Output x > FOxFault Settings > FOx
Fault Action
Frequency Output Fault Action controls the behavior of the Frequency Output if the transmitter detects a
fault condition.
Important
• The fault action is implemented only if Alert Severity is set to Failure. If Alert Severity is set to any other
option, the fault action is not implemented.
Integrate the meter with the control system Configuration and Use Manual
March 2019 MMI-20025166
154 Micro Motion Model 5700 Transmitters with Configurable Outputs
