Arrow Keys
Mode switches by turning ON/OFF the “F5-8” lamp.
Press the <F1-4 / F5-8> key to turn ON/OFF the “F5-8” lamp.
F5-8
Mode
Key
Function
OFF Normal mode
↑
+1 the value
Move the cursor up
↓
−1 the value
Move the cursor down
←
Move the cursor to the left
Jog key switch: J4, J5, J6 - J7, J8, J9
→
Move the cursor to the right
Jog key switch: J4, J5, J6 - J7, J8, J9
ON Scroll mode
<<
+10 the value
Move to previous page
>>
−10 the value
Move to next page
Function Keys
Press the <F5-8> key to turn ON/OFF the “F5-8” lamp. The display will be changed.

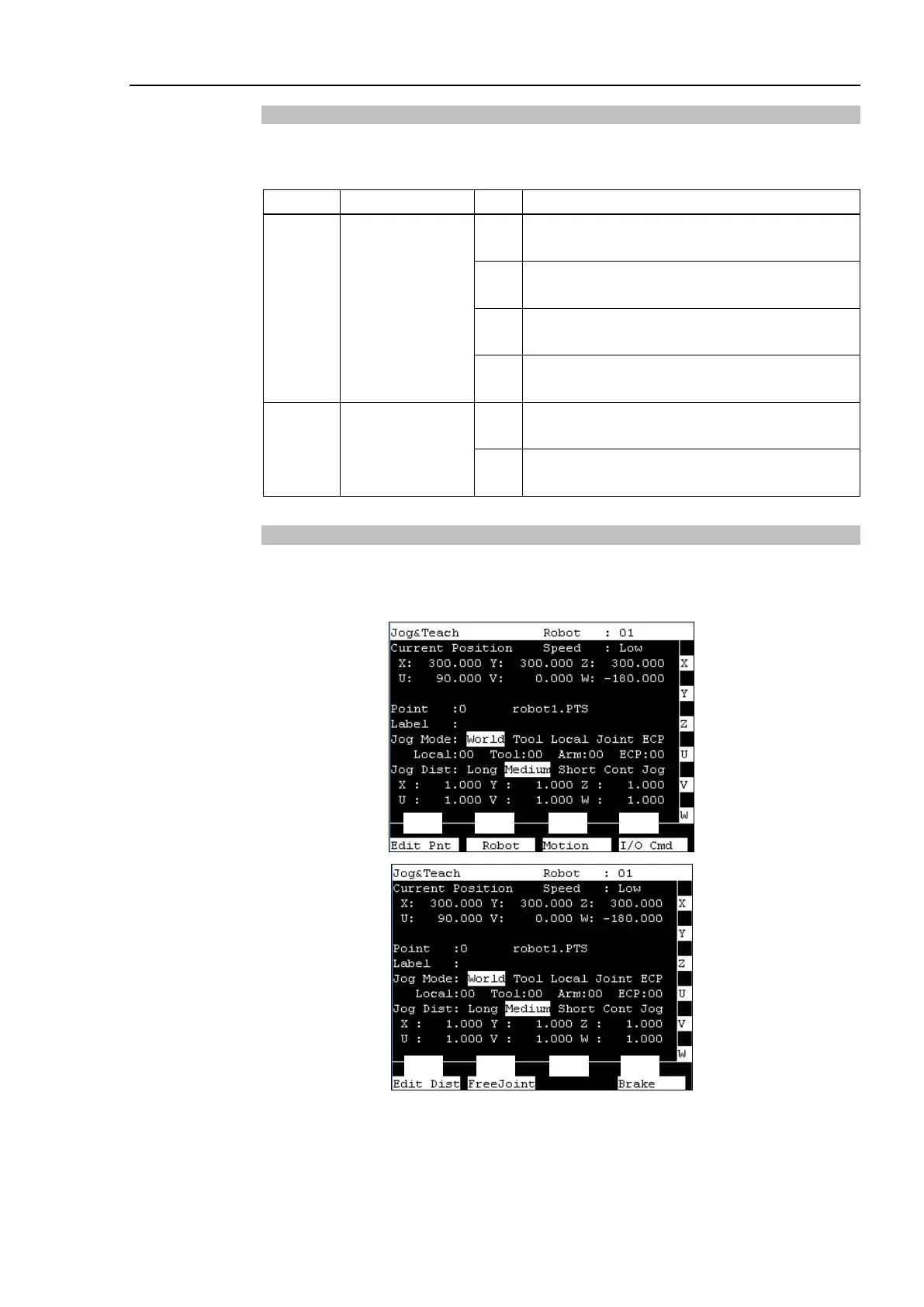

Example : Jog&Teach Screen
“F5-8” OFF
<F1>
<F2>
<F3>
<F4>
“F5-8” ON
<F5>
<F6>
<F7>
<F8>
Example : Press the <F3> key to display the Motion screen.
When a function key is not assigned to a screen, the key is invalid. Example : <F7>

