Maintenance 3. Controller Structure

128 RC620 Rev.8

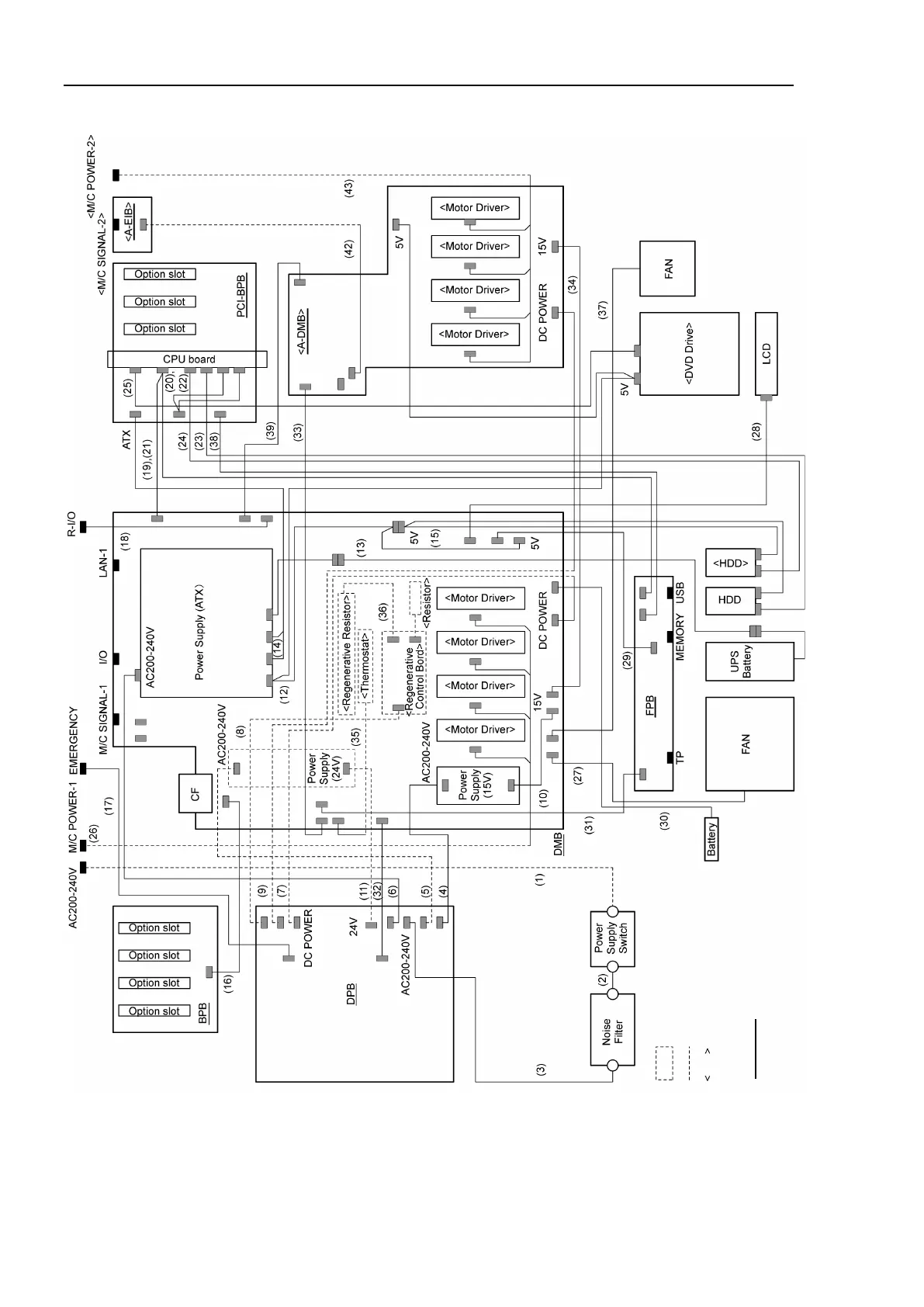

When connecting 2 units of the 4-axis manipulator

Parts installed in the bottom side

Wires in the bottom side

Parts (not) installed depending

on the specification

Underlined

Plate name

For RC620-UL:

Power Supply Switch is not available.
