Maintenance 5. Firmware Update

RC620 Rev.8 141

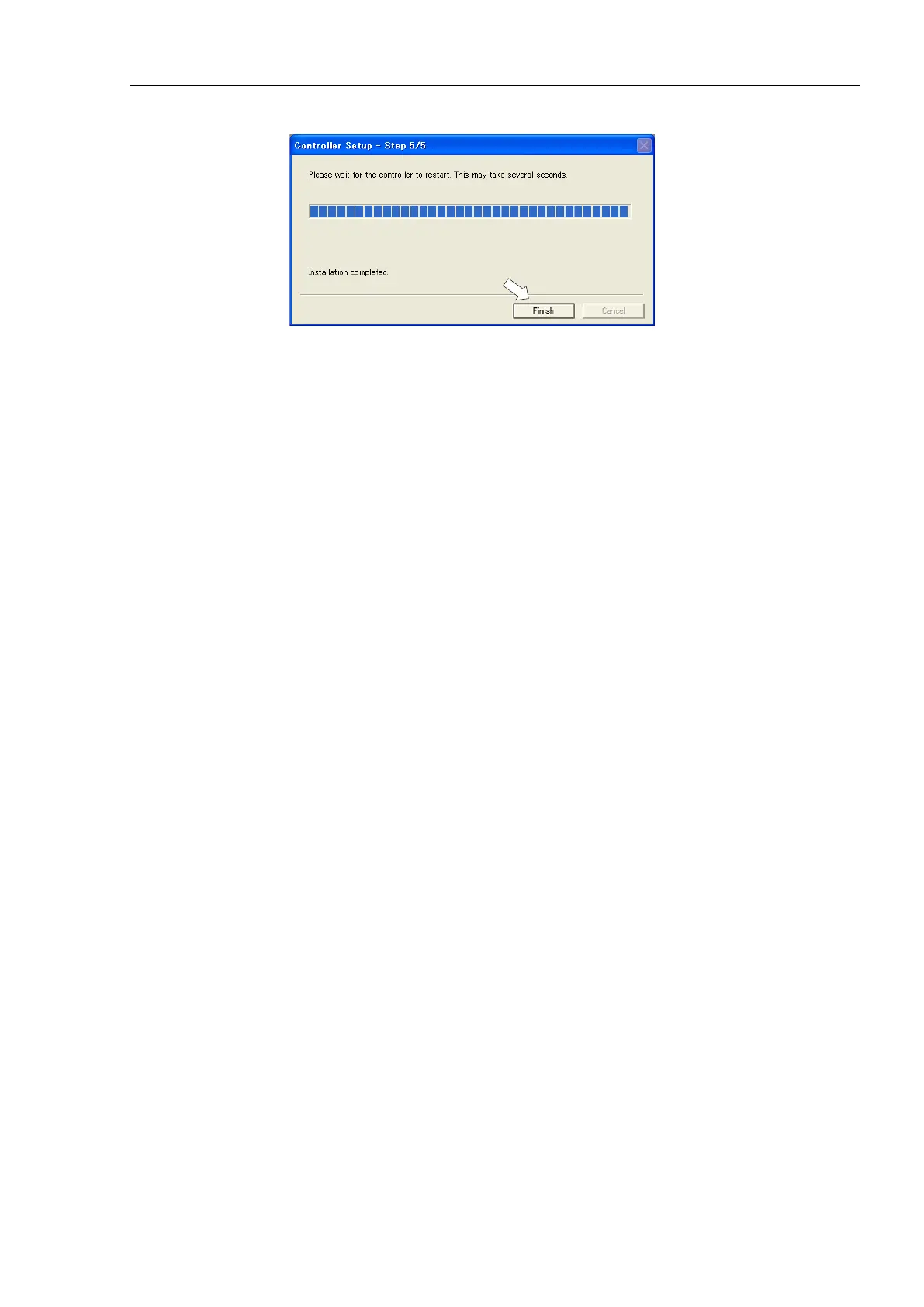

(11) The following dialog appears after the Controller reboot. Click the <Finish> button.

The firmware upgrade is complete.
