MB1 User Manual
© 2016 Expert Electronics
TRANSCEIVER OPERATIONS

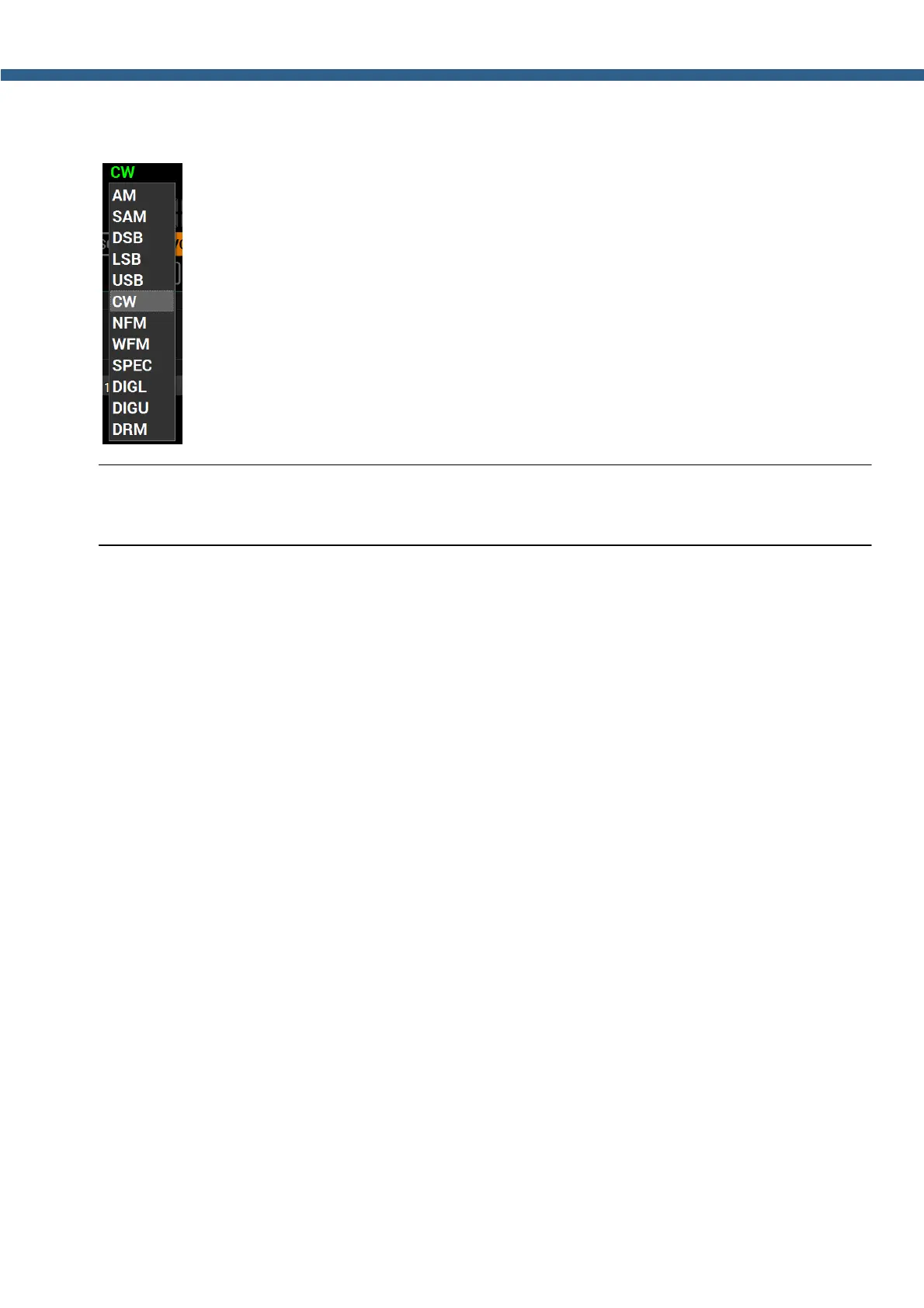

Select the required mode type from the drop down menu.
Note:
(
You can operate this menu with mouse or your fingers, touching the screen.
The list of the supported mode types in the MB1 transceiver (new modes may be added
in the future software releases):
· AM - Amplitude modulation.
· SAM - Synchronous amplitude modulation.
· DSB - Double Side Band.
· LSB - Lower Side Band.
· USB - Upper Side Band.
· CW - CW mode.
· NFM - Narrow FM.
· WFM - Wide FM. Supports receiving of the stereo signals.
· SPEC - Spectrum mode.
· DIGL - Digital Lower Side Band (for working in digital modes).
Connect third-party software (is not supplied) to the transceiver software for working in digital
modes.
· DIGU - Digital Upper Side Band (for working in digital modes).
Connect third-party software (is not supplied) to the transceiver software for working in digital
modes.
