MAIN SCREEN DESCRIPTION
5.3.4.2 RX2 receiver

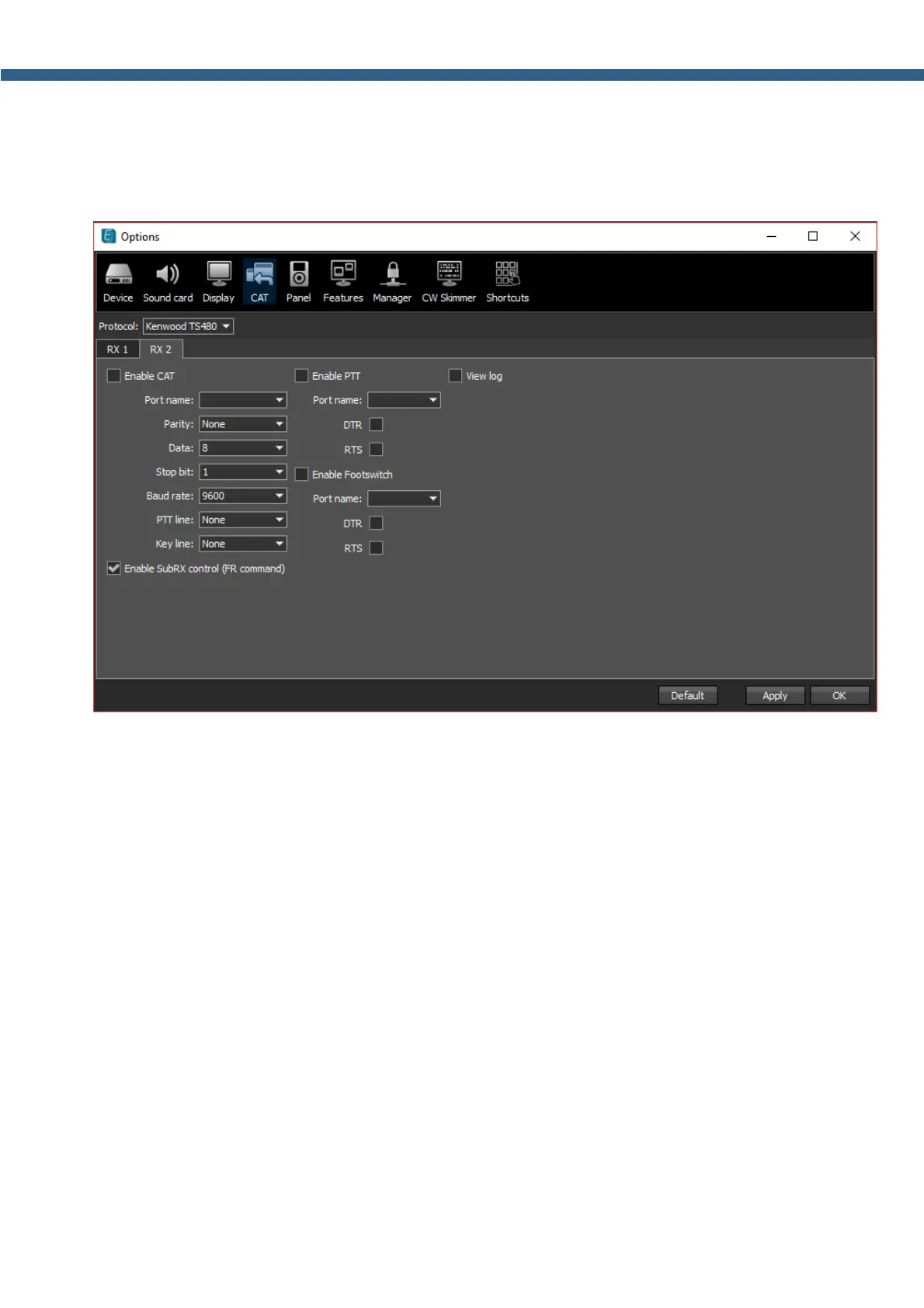

RX2 tab contains a САТ-system settings and control of the transceiver's PTT command via
COM-ports for the RX2 receiver.
· Protocol - Exchange protocol menu with external devices.
Select the required exchange protocol with external devices or software from the list.
· Enable CAT – Checkbox to enable control of the transceiver via the CAT-system.
· Port name – COM-port number.
· Parity – Parity.
· Data – Amount of data in bits.
· Stop bit – Amount of stop bits.
· Baud rate – Port speed.
· PTT line – COM-port line to activate the TX mode.
· Key line - COM-port line for the CW mode.
· DTR/RTS – COM-port line for the PTT mode.
