CHAPTER 32
PAGE 11
PAGE DATE: 14. August 2015
MAINTENANCE MANUAL EXTRA 330LX
Thread parallel to edge
Thread parallel to edge
Thread parallel to edge
Thread parallel to edge
Orientation
Vorgelat Scheufler T30 or T35
Vorgelat Scheufler T30 or T35
Outer Layer
1 Layer CCC447
Orientation ±45°
Outer Layer
1 Layer CCC447
Orientation ±45°
Inner Layer
1 Layer CCC447
on whole plane
Orientation ±45°
Inner Layer
1 Layer CCC447
Orientation ±45°
First Reinforcement Layer
1 Layer CCC447
Measurements see sketch
Orientation 0°/90°
First Reinforcement Layer
1 Layer CCC447
Measurements see sketch
Orientation 0°/90°
Second Reinforcement Layer
1 Layer CCC447
Measurements see sketch
Orientation 0°/90°
Second Reinforcement Layer
1 Layer CCC447
Measurements see sketch
Orientation ±45°
Third Reinforcement Layer
1 Layer CCC447
Measurements see sketch
Orientation 0°/90°
Third Reinforcement Layer
1 Layer CCC447
Measurements see sketch
Orientation ±45°
Fourth Reinforcement Layer
1 Layer CCC447
Measurements see sketch
Orientation 0°/90°
Fourth Reinforcement Layer
1 Layer CCC447
Measurements see sketch
Orientation 0°/90°
Frame
2 Layers CCC452
on whole plane
Orientation ±45°
Drain hole Ø 6 mm

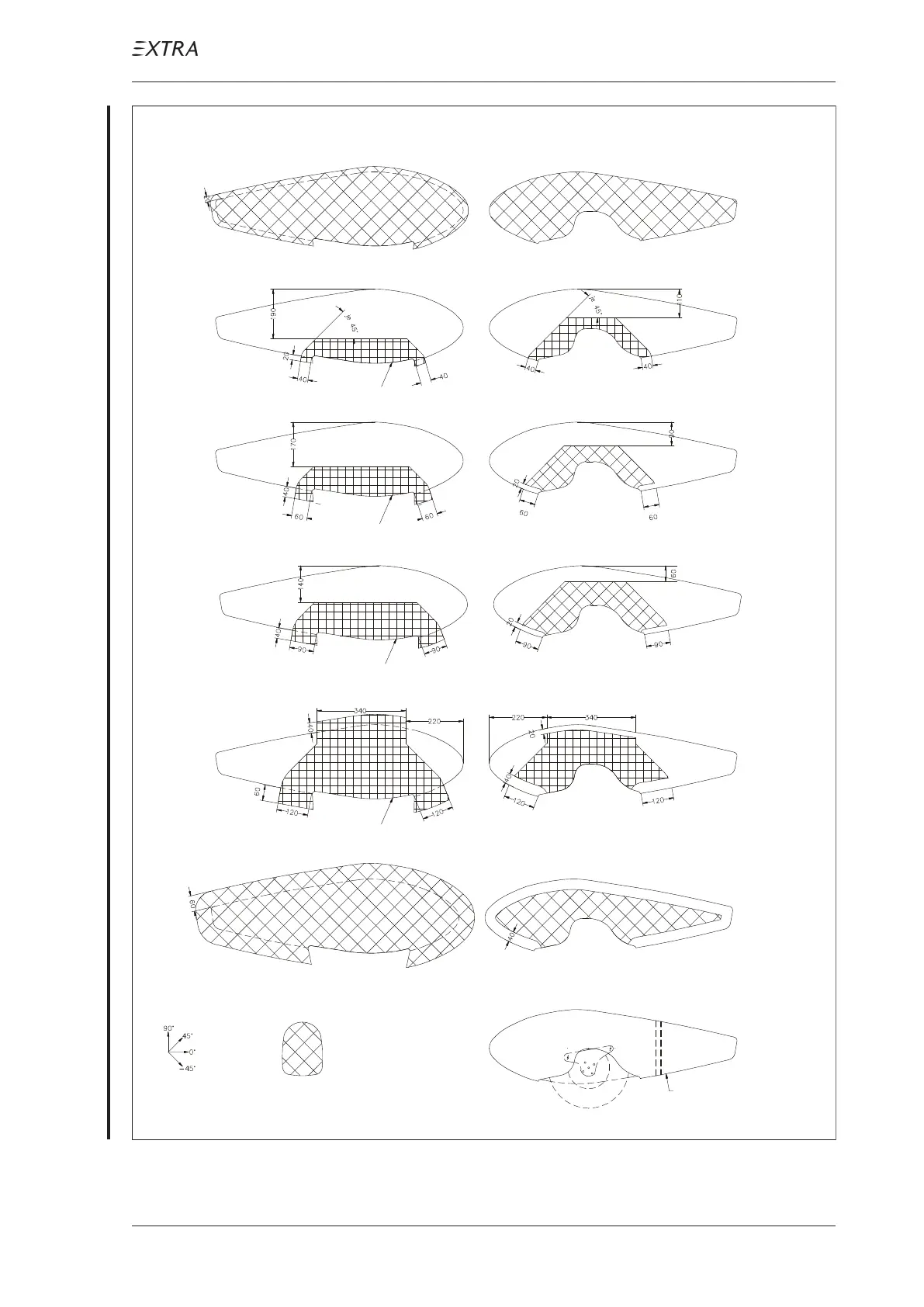

Figure 5 Layer Sequence Wheel Fairing
