-OR-
Rotate either to
select audio and video,
or video only.
Rotate either to
select ChA, ChB or
A+B.
Rotate either to
select recording
resolution.
Rotate either to
select frame rate.
Rotate = to change video bitrate.
Rotate ] to change audio bitrate.
OUTPUT MODE
<AUDIO/VIDEO>
AUDIO OUTPUT
<CH B ONLY>
RESOLUTION
<1280x720>
FRAME RATE
<30>
VID BITRATE AUD
<5000> <320>
Rotate either to
select streaming
resolution.
Rotate either to
select streaming
frame rate.
Rotate = to change video bitrate.
Rotate ] to change audio bitrate.
RESOLUTION
<512x288>
FRAME RATE
<15>
VID BITRATE AUD
<350> <192>
Menu
1(;7
RECORD/STREAM
CONFIGURATION
Rotate either to
select encoder type.
Rotate either to
select mode.
RECORDING
<ON>
ENCODER
<ARCHIVE>
RECORD TO 433.71 GB
<INTERNAL>
Rotate = to select internal or external location.
Rotate ] to select a volume on the external location.
-OR-
-OR-
1(;7
1(;7
1(;7 1(;7
1(;7
Rotate either to
toggle streaming
on or off.
Rotate either to
select push or pull.
Rotate = to select octet.
Rotate ] to change address.
Rotate = to select octet.
Rotate ] to change address.
Press 1(;7 to select and move
to next submenu.
Rotate either to select protocol.
Press 1(;7 to select and move
to next submenu.
STREAMING
<ON>
STREAM PROTOCOL
<UNI RTP/UDP>
STREAM PROTOCOL
<UNI RTP/UDP>
STREAM METHOD
<PUSH>
STREAM METHOD
<PULL>
DESTINATION IP
XXX.XXX.XXX.XXX
MULTICAST IP
XXX.XXX.XXX.XXX
STREAM PROTOCOL
<MULTI RTP/UDP>
-OR-
-OR-
1(;7
1(;7
1(;7 1(;7
1(;7
Rotate either to
toggle streaming
on or off.
Rotate either to
select push or pull.
Rotate = to select octet.
Rotate ] to change address.
Rotate = to select octet.
Rotate ] to change address.
Press 1(;7 to select and move
to next submenu.
Rotate either to select protocol.
Press 1(;7 to select and move
to next submenu.
STREAMING
<ON>
STREAM PROTOCOL
<UNI RTP/UDP>
STREAM PROTOCOL
<UNI RTP/UDP>
STREAM METHOD
<PUSH>
STREAM METHOD
<PULL>
DESTINATION IP
XXX.XXX.XXX.XXX
MULTICAST IP
XXX.XXX.XXX.XXX
STREAM PROTOCOL
<MULTI RTP/UDP>
Rotate either to select protocol from
this list:
UNI TS/UDP MULTI TS/UDP
UNI TS/RTP MULTI TS/RTP
UNI ES/RTP MULTI ES/RTP
Rotate either to select protocol from
this list:
UNI TS/UDP MULTI TS/UDP
UNI TS/RTP MULTI TS/RTP
UNI ES/RTP MULTI ES/RTP
Rotate either to
select encoder type.
ENCODER
<CONFIDENCE>
1(;7
1(;7
1(;7

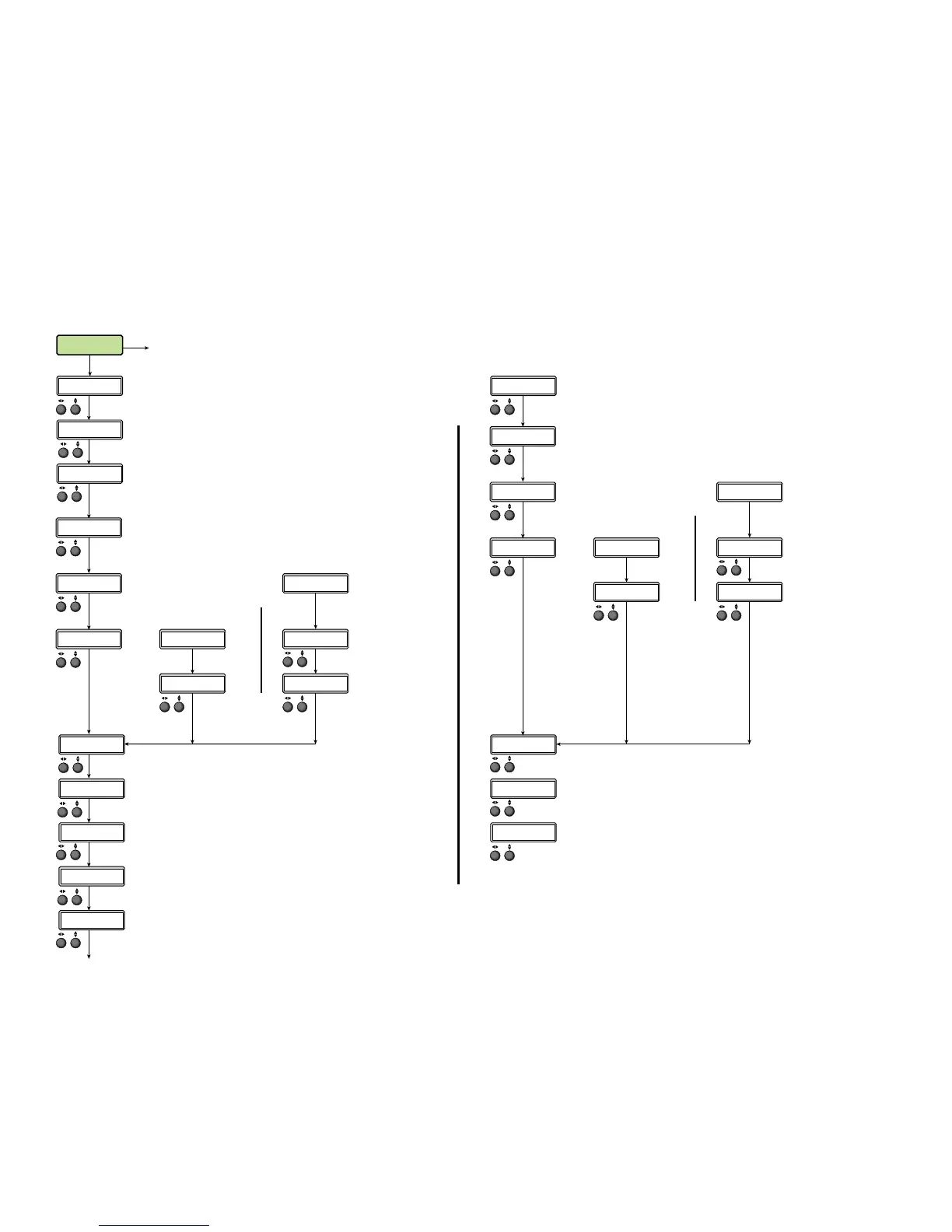

Front Panel Menu Diagrams (Record/Stream Configuration)
SMP351 • Reference Information 206
