Front Panel Operation
This section of the manual discusses the operation of the SMP351 from the front panel.
Topics covered include:
• Front Panel Features
• Layout Presets
• SMP351 Power Up Procedure
• Front Panel Menu Operation
• Front Panel Lockout (Executive Modes)
Front Panel Features
USB STORAGE
SMP 351
PRESENTATION CAPTURE RECORDER
([WURQ
CONFIG
ADJUST
AUDIO
CHANNEL A
CHANNEL B
LR
1
2
3
4
5
LAYOUT
PRESET
SWAPSWAP NEXT
MENU
NEXTMARK
I/O
1
2
3
4
%%&&''(())**++,,--$$

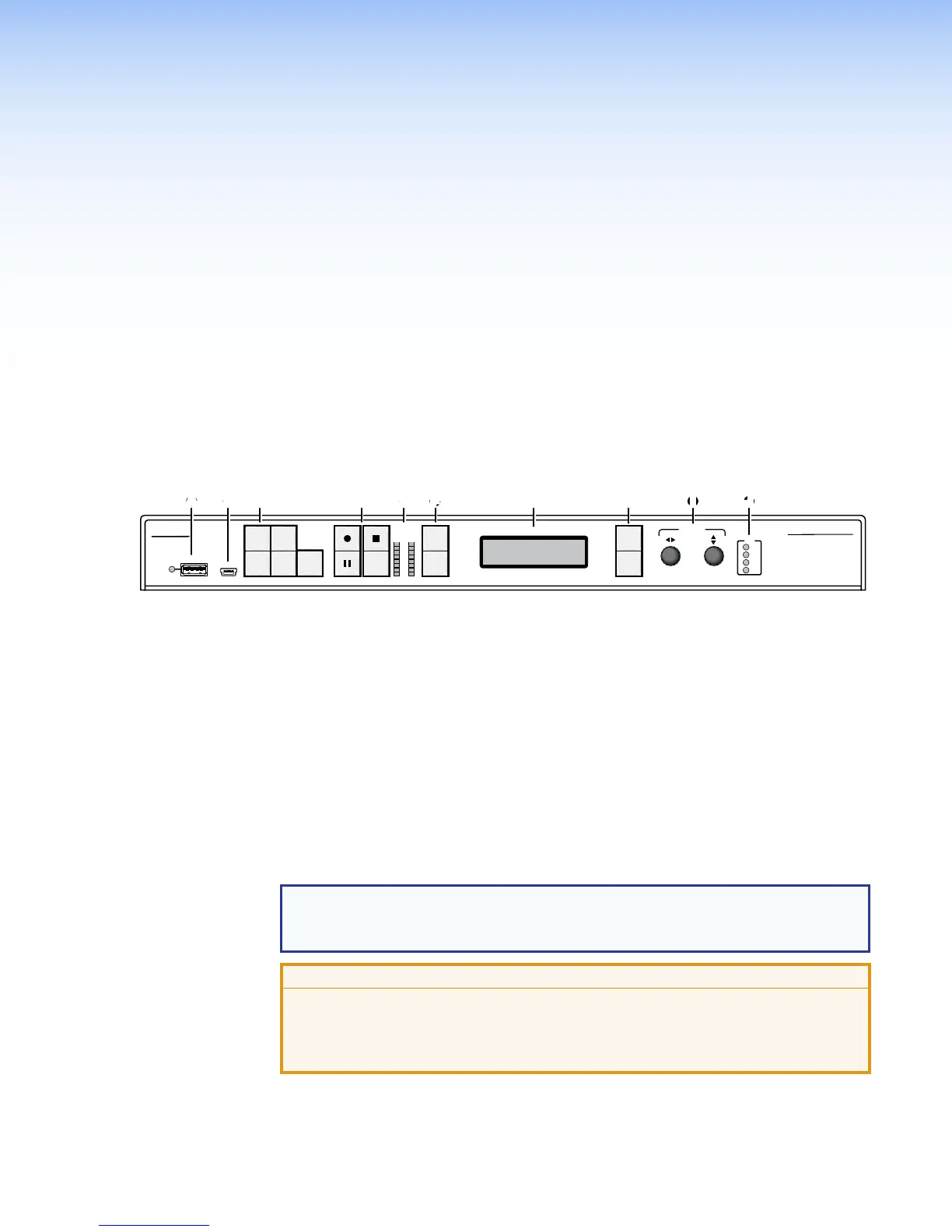

Figure 8. SMP351 Front Panel
A
Type A USB connector and activity LED for
external storage
F
Layout Preset and Swap
B
Mini Type A USB connector for configuration
G
Menu display
C
Input buttons for source selection
H
Menu Navigation (MENU and NEXT)
D
Record controls with LED indicators
I
Adjust knobs (left
[
and right
{
E
Audio level indicators
J
I/O display
A
USB storage port and activity LED – Connect a USB compatible media device to
this port. The green LED blinks during both reading and writing of data. The storage
device can be any standard external hard drive or USB flash drive formatted with a
compatible file system.
NOTES:
• The SMP351 can detect and record to USB storage devices using FAT32,
VFAT long file name extensions, EXT2, EXT3, or EXT4 file systems.
ATTENTION:
• Disconnecting a USB device while recording to it may result in corrupt or lost
data.
• Déconnecter un périphérique USB alors qu’un enregistrement y est effectué,
peut engendrer une altération ou une perte de données.
B
Config port — Connect a control device to this port with a USB mini-B cable (not
supplied). Use this port to send SIS commands to the SMP351 for device configuration
and control (see Remote Communication and Control on page156).
SMP351 • Front Panel Operation 18
