Input/Output Settings
The controls within the Input/Output Settings page within the Configuration tab
provide a way to select a number of settings for video input and test the output and select
options for audio output mode, mute, and levels.
A user must be logged in as an administrator to see or change these settings. The page is
divided into three panes:
Input/Output Configuration – Change the name for each input, select the video
format for input 3 (and for input 5 on 3G-SDI models), select an aspect ratio type,
enable and disable Auto-Image, AutoMemory, HDCP authorization, and audio gain for
each HDMI input
Preview Output Configuration – Provides a way to set the refresh rate for the local
output
OSD Configuration – Select and output one of several video test patterns for use
during setup, set up the content of the universal on-screen display, select a font for the
input switching OSD and universal OSD, and set a display period for the input switching
OSD.
To open this page, click the Configuration tab at the top of the SMP351 embedded
Web pages and click the Input/Output Settings tab on the second tier of tabs.

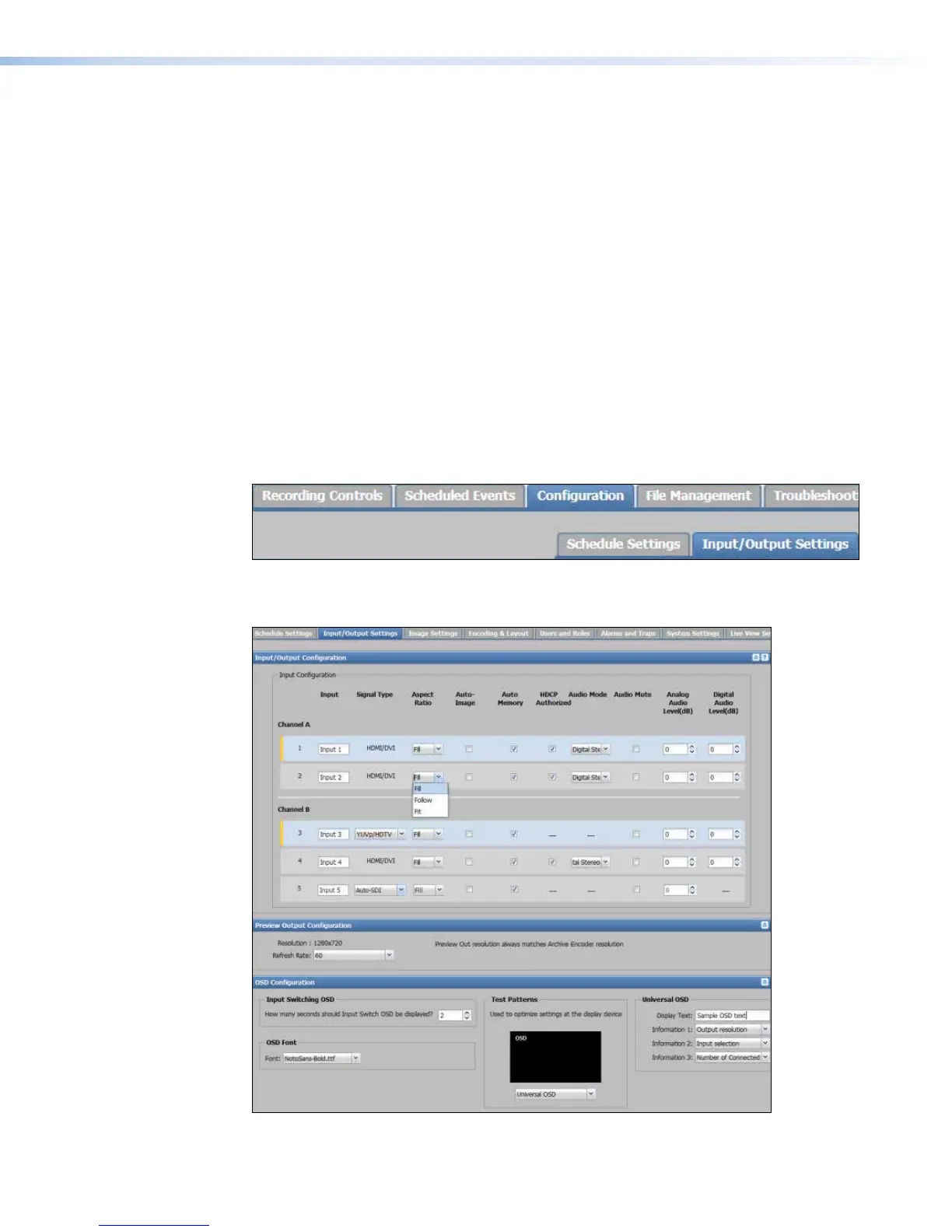

Figure 48. Input/Output Settings Tab
The Input/Output Settings page opens.
Figure 49. Input/Output Configuration Page
SMP351 • Web-Based User Interface 75
