1(;7
1(;7
1(;7
1(;7
1(;7
1(;7
1(;7
1(;7
1(;7
1(;7
1(;7
1(;7
0HQX
1(;7
-OR-
RECORD/STREAM
CONFIGURATION
Rotate either to
select encoder type.
Rotate either to
select mode.
Rotate either to select audio
and video, or video only.
Rotate either to
select ChA, ChB or A+B.
Rotate either to
select recording resolution.
Rotate either to
select frame rate.
Rotate either to select
push or pull streaming.
Rotate either to select
protocol to follow stream
method.
Rotate = to select octet.
Rotate ] to change address.
Rotate = to change video bitrate.
Rotate ] to change audio bitrate.
Rotate either to
select mode.
Rotate = to select internal or external location.
Rotate ] to select a volume on the external location.
RECORDING
<ON>
ENCODER
<ARCHIVE>
RECORD TO 71.75 GB
<INTERNAL>
OUTPUT MODE
<AUDIO/VIDEO>
AUDIO OUTPUT
<CH B ONLY>
RESOLUTION
<1280x720>
FRAME RATE
<30>
VID BITRATE AUD
<5000> <384>
STREAM METHOD
<PULL>
STREAM PROTOCOL
<MULTI RTP/UDP>
MULTICAST IP
XXX.XXX.XXX.XXX
STREAMING
<ON>
1(;7
1(;7
1(;7
1(;7
1(;7
1(;7
1(;7
1(;7
Rotate either to
select streaming
resolution.
Rotate either to
select streaming
frame rate.
Rotate = to change video bitrate
Rotate ] to change audio bitrate.
Rotate either to
select push or pull
streaming.
Rotate either to
select protocol to follow
stream method.
Rotate = to select octet.
Rotate ] to change address.
Rotate either to
select encoder type.
Rotate either to
select mode.
ENCODER
<CONFIDENCE>
RESOLUTION
<512x288>
FRAME RATE
<15>
STREAM METHOD
<PULL>
STREAM PROTOCOL
<UNI RTP/UDP>
STREAMING
<ON>
VID BITRATE AUD
<350> <192>
DESTINATION IP
XXX.XXX.XXX.XXX
Record and Stream Configuration Menu
This menu allows the user to configure
the archive (recording) and confidence
encodes.
Use either ADJUST knob to change the
selections. Press NEXT to enter changes
and move to the next submenu. Press
MENU to enter changes and return to the
main menu.

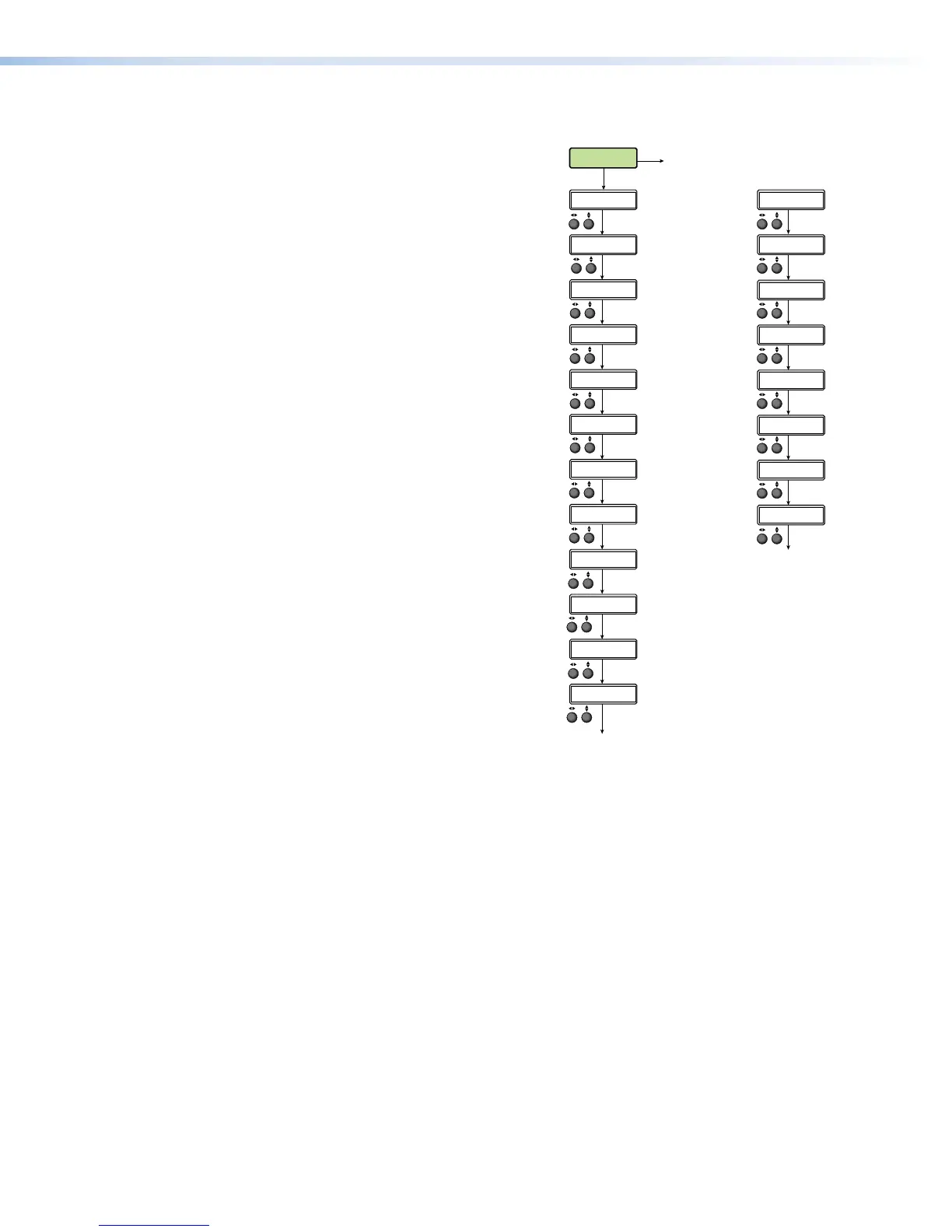

The flow chart on the right shows all
possible submenus for the RECORD/
STREAM CONFIGURATION menu.
Subsequent submenus are hidden or
displayed depending on previous submenu
selections (see the image at right).
Encoder select menu
This submenu determines the purpose
of the encoded stream. The subsequent
encoder configuration submenus are
dependent this setting. Select one of the
following:
• Archive – Provides the highest quality
stream but uses the most bandwidth
and resources. The settings also apply
to the recordings.
• Confidence – Provides a lower
quality stream, typically for confidence
monitoring.
Recording and streaming mode
The encoder mode submenu is the second submenu in the Record/Stream
Configuration menu. The displayed name is based on the encoder purpose selected in
the Encoder submenu.
• Recording (for archive only) – On or off.
• Streaming – On or off.
• Off – Streaming and recording (when available) can be shut off separately.
For Archive, the default selection is Recording On, Streaming On.
For Confidence, the Streaming selection is On (default) or Off.
Subsequent submenus are available based on the encoder select and encoder mode
selections.
SMP351 • Front Panel Operation 29
