Menu Overview
After start-up, when no adjustments are actively being made, the Default Display Cycle
(see figure 13) runs on the LCD (
G
on the previous page). The screen progressively cycles
through the input and output format information, showing the number and video format of
the active input and the current output resolution.
NOTE: If a signal is not present on the currently selected input, NO SIGNAL appears in
place of the input type. For example, IN#4 NO SIGNAL.
If there is an active recording, TIME RECORD displays the current length of the recording.
TIME REMAIN shows the time remaining for an active scheduled recording.
EXTRON
ELECTRONICS
2
sec.
EXTRON
SMP 351 FW V1.00
45
sec.
SMP 351
INITIALIZING
LOADING
FIRMWARE
30
sec.
~4
sec.
Power
On
NOTE: The information shown in the default display cycle differs
depending on the active input and the type of video signal.
Time Record displays only during a recording.
Time Remain displays the remaining time in the event and the
estimated recording time available during an unscheduled
recording.
Default Display Cycle
2
sec.
HH:MM:SS
TIME RECORD
2
sec.
2 sec.
In#1 1024x768@60
In#3 720p@60
2 sec.
ARCHIVE 2.0 MB
1280x720@10 fps
HH:MM:SS
TIME REMAIN

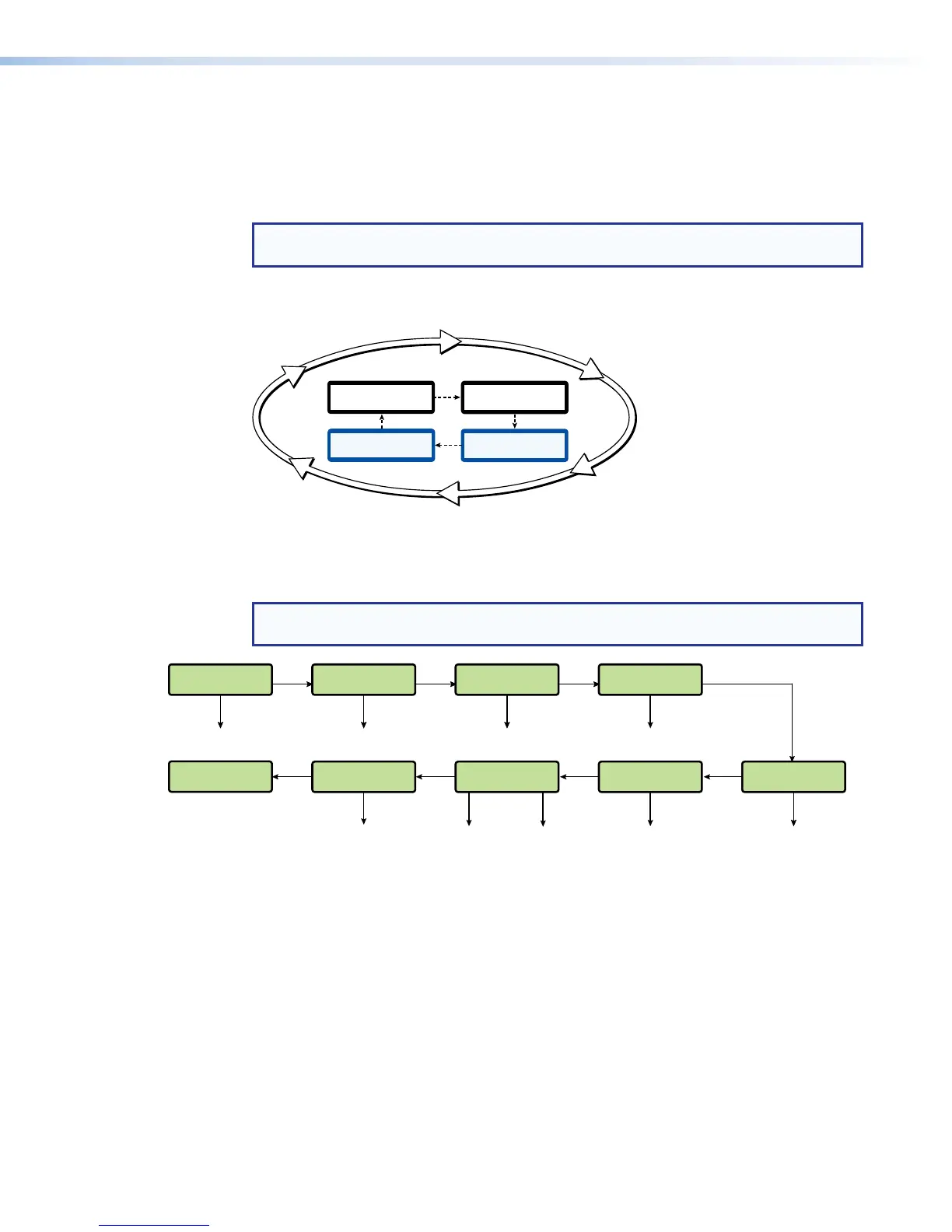

Figure 13. Default Display Cycle
Press the MENU button once to bring up the first main (top level) menu, as shown below.
Each successive MENU button press cycles to the next main menu.
NOTE: From any menu or submenu, after 20 seconds of inactivity, the SMP351
times-out to the default display cycle.
Next
Next
Next
Next Next
NextNextNext Next
NextNext
+
Input 5
for Edit Menu
Next
MenuMenu
(to submenus) (to submenus) (to submenus) (to submenus)
(to submenus) (to submenus) (to submenus)
(to submenus)
Menu
MenuMenu
Menu Menu Menu
Menu Menu
Menu Menu Menu
INPUT
CONFIGURATION
ADVANCED
CONFIGURATION
VIEW COMM
SETTINGS
BACKGROUND
RECALL
CONTROL
PRESETS
RECORD/STREAM
CONFIGURATION
EXIT MENU?
PRESS NEXT
STATUS
Figure 14. Top Level Menus
The flowchart above provides an overview of the menu system.
The top level menus are displayed one at a time, in order, on the LCD panel by pressing the
MENU front panel button.
To return to the default cycle from a top level menu or submenu, press MENU repeatedly until
EXIT MENU? appears, then press NEXT. Alternatively, the menu times out after 20seconds
of inactivity and returns to the default cycle.
Press NEXT when a menu displays to access its submenu. Within the submenu, press
MENU to exit the submenu and return to the currently active menu or press NEXT to move to
the next submenu.
Submenu details with configuration and options for each setting are on the following pages.
A complete schematic of the menus and submenus is in the reference section (see Front
Panel Menu Diagrams on page205).
SMP351 • Front Panel Operation 23
