Extron electronics SMP 351 User Manual

Comm Settings (View and Edit) Menu

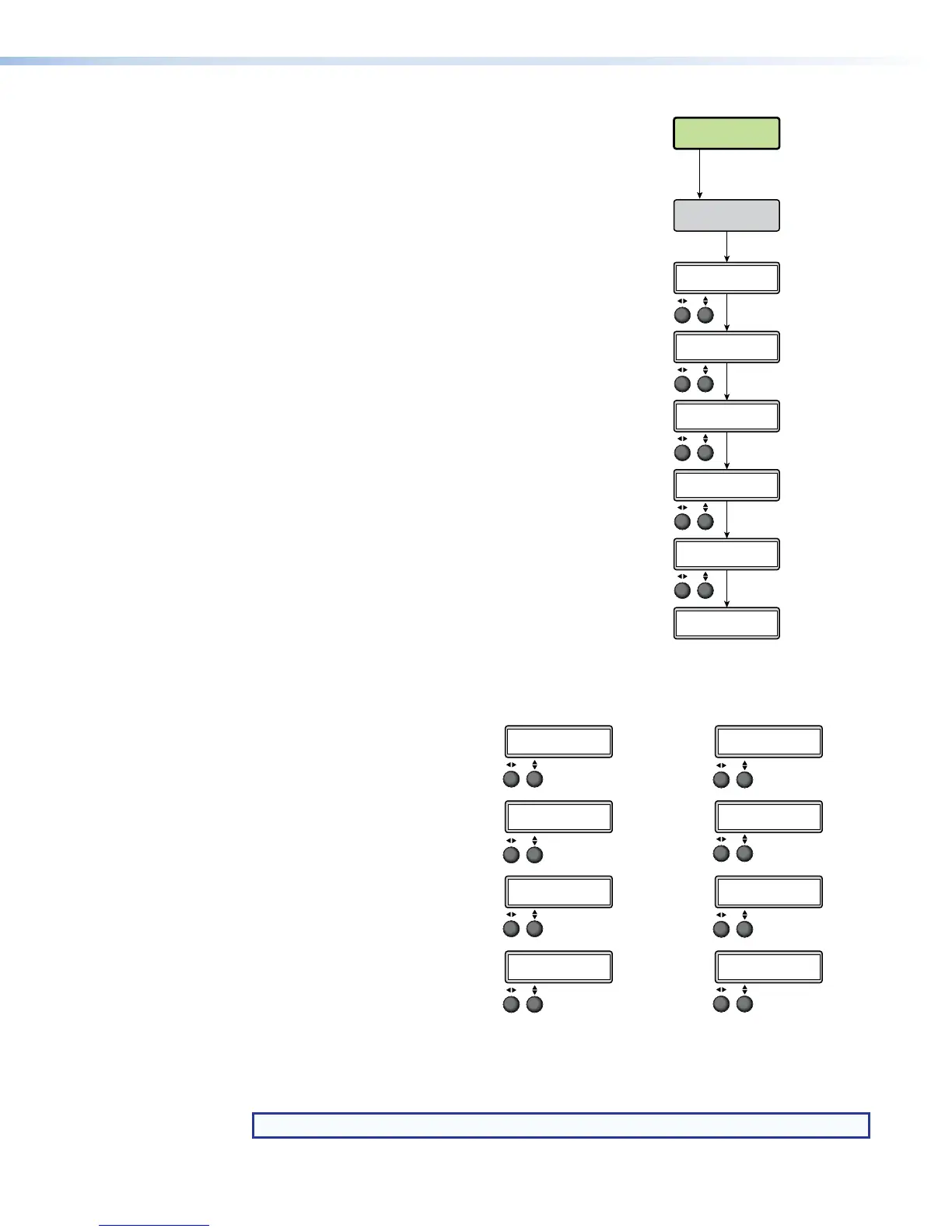

The two Comm Settings menus provide a status of the
current serial port and IP settings for the communications
ports. A hidden menu allows changes to the settings.
The main menu defaults to the VIEW COMM SETTINGS
submenus for viewing all communication port settings.
Press NEXT to cycle through the submenu.
The VIEW COMM SETTINGS submenu is read-only.
To make changes, press and hold NEXT and INPUT5
simultaneously for 3 seconds in the VIEW COMM
SETTINGS menu or any of the submenus. The VIEW
COMM SETTINGS menu changes to the EDIT COMM
SETTINGS menu.
1(;7
1(;7
1(;7
1(;7
1(;7
1(;7
VIEW COMM
SETTINGS
This is set at the factory and cannot be
changed. (Skipped in “Edit” mode.)
Rotate either to toggle
DHCP mode On or Off.
Rotate = to select octet field.
Rotate
] to change address.
“Hidden” Menu*
Press and hold
INPUT 5 + NEXT
for 3 seconds.
Rotate either to change mask.
Rotate
= to select octet field.
Rotate
] to change address.
Rotate either to change
the baud rate.
SERIAL PORT
9600 RS232
DHCP MODE
<OFF> On
MAC ADRESS
005A6078CEC
IP ADDR
192.168.254.254
GATEWAY
000.000.000.000
SUBNET
255.255.000.000
EDIT COMM
SETTINGS
Change an address
To change the IP address, Subnet Mask address, and
Gateway IP address:
Enter the EDIT COMM SETTINGS menu and navigate to
the desired address (IP address shown).
1. Make the octet selection with the left (
[
) ADJUST
knob. The selected octet blinks (shown in Bold in the
illustration at lower right).
2. Change the selected octet value using the right (
{
)
ADJUST knob.
3. Make the next octet selection with the left (
[
)
ADJUST knob. The selected octet blinks (shown in
Bold in the illustration at lower right).
4. Change the selected octet value using the right (
{
)
ADJUST knob.
5. Make the next octet
selection with the left (
[
)
ADJUST knob. The selected
octet blinks (shown in Bold
in the illustration at right).
6. Change the selected octet
value using the right (
{
)
ADJUST knob.
7. Make the next octet
selection with the left (
[
)
ADJUST knob. The selected
octet blinks (shown in Bold
in the illustration at right).
8. Change the selected octet
value using the right (
{
)
ADJUST knob.
When you are done with the changes, press MENU to cancel the changes and return to the
EDIT COMM SETTINGS menu or NEXT to submit the value. The network connection restarts
to reflect the changes after pressing NEXT from the GATEWAY submenu.
NOTE: The subnet mask is changed using either ADJUST knob.
Rotate = to select octet.
Rotate ] to change address.
Rotate = to select octet.
Rotate ] to change address.
IP XXX.XXX
XXX.XXX
IP 192.XXX
XXX.XXX
IP 192.XXX
XXX.XXX
IP 192.168
XXX.XXX




Rotate = to select octet.
Rotate = to select octet.
Rotate ] to change address
.
Rotate ] to change address
.
IP 192.168
XXX.XXX
IP 192.168
254.XXX
IP 192.168
254.XXX
IP 192.168
254.254




SMP351 • Front Panel Operation 42
