Chapter 5 I/O Expansion Unit
Page 5-21

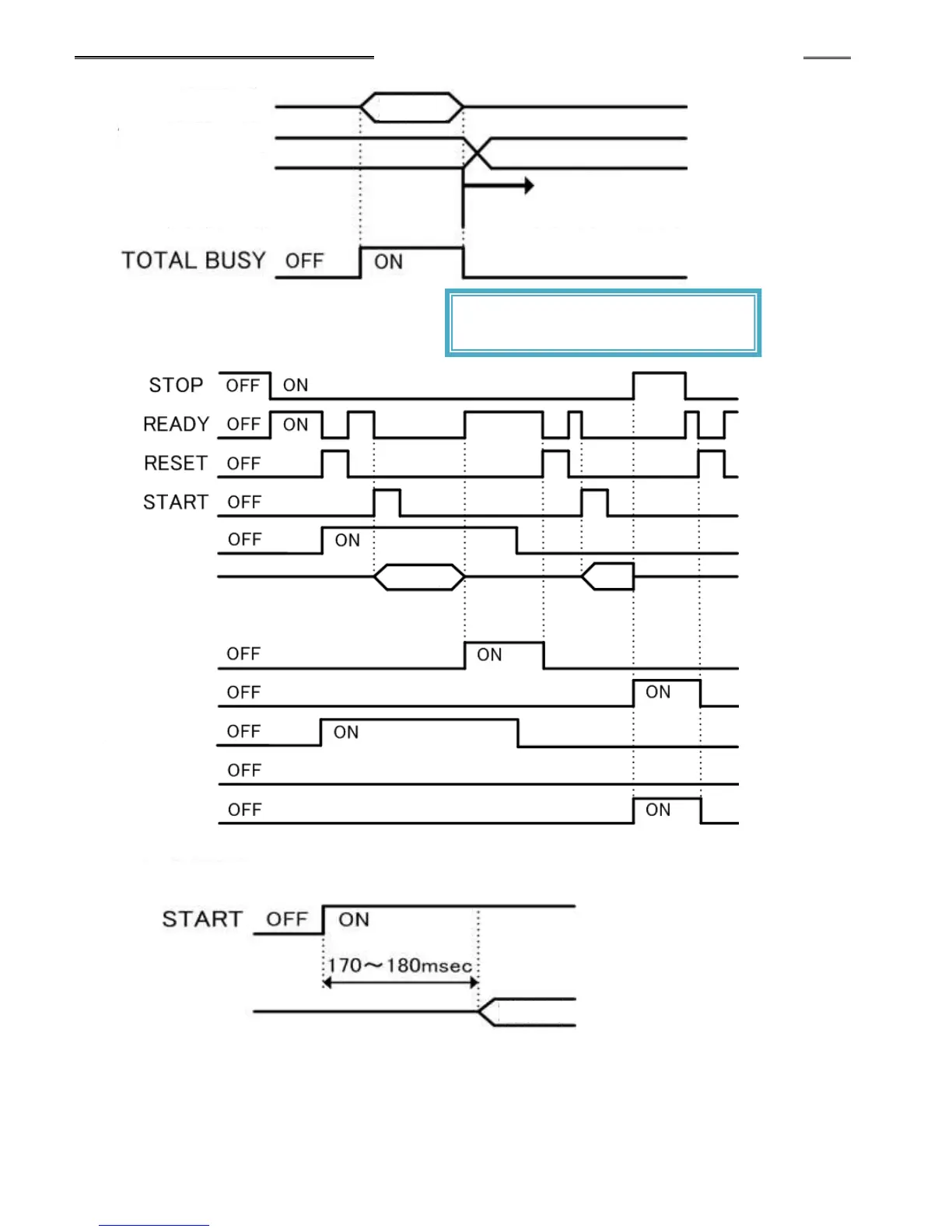

●Fieldbus Message Output Timing
● Basic Control Signals: Slave Spindle
● Delay Time from Input of START Signal to Unit Startup
･ Startup processing time of MASTER spindle for PC communication and I/O (PLC) control: Approx. 170 to
180msec
･ Startup processing time of SLAVE spindle for PC communication and I/O (PLC) control: 3msec (per axis)
Example: Processing time for a 10-axis system = (170 to 180msec) + 3msec × 10 axes
The respective SLAVE spindle are thus started up 200 to 210msec after the MASTER spindle is started
up.
Operation
Operation
Operation in
progress
･ Output Signals
･ Input Signals
Fastening
OFF: Contact is “Open” from the PLC
ON: Contact is “Closed” from the PLC
Fieldbus
Message Output
Fastening
･ Output Signals
Output started
(renewed at the end of the next operation)
2nd Axis BYPASS
1st Axis ACCEPT
1st Axis REJECT
2nd Axis BYPASS
2nd Axis ACCEPT
2nd Axis REJECT
･ Input Signals
Fastening
Operation in
progress
