Chapter 7 Fastening Instructions
PAGE 7-30

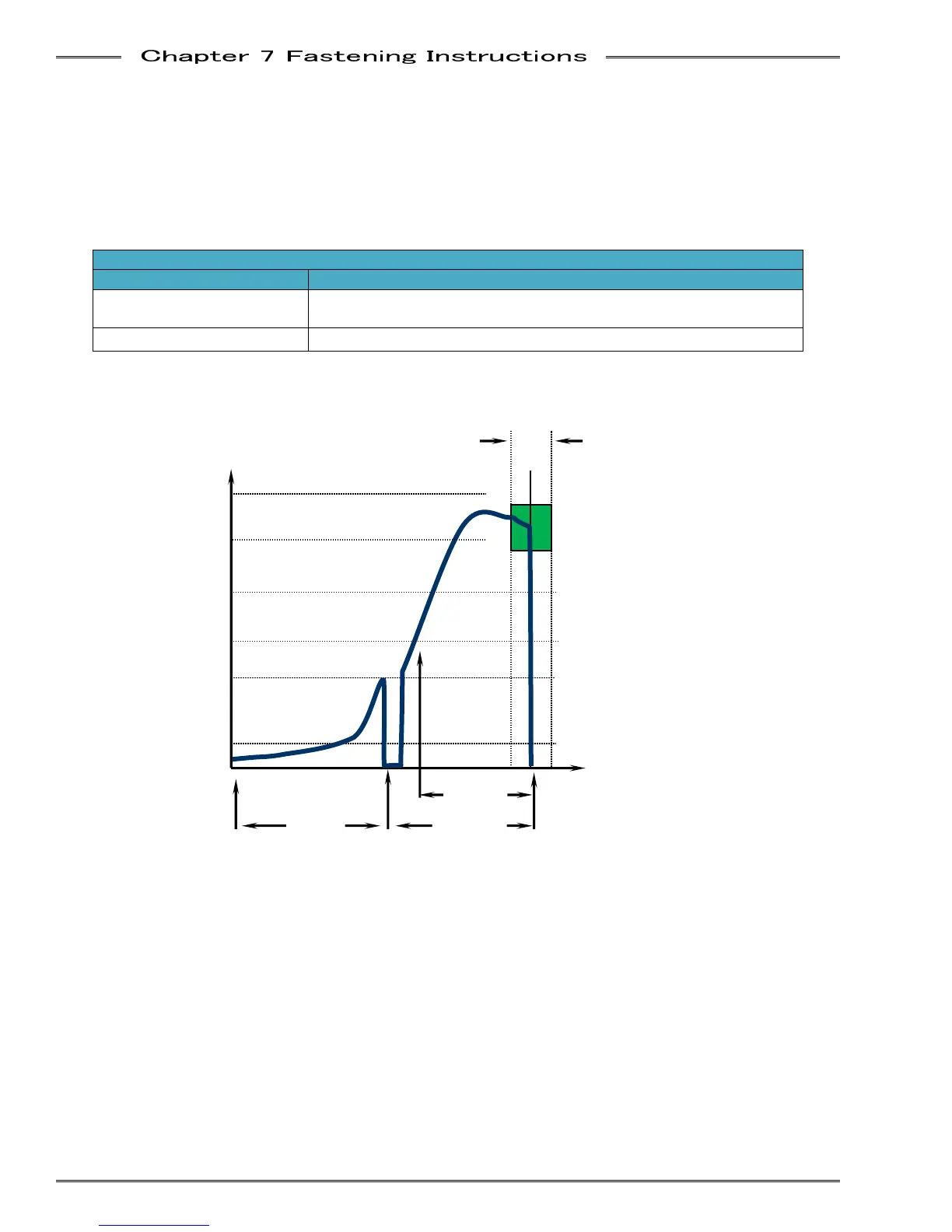

<Final Angle Check>
Final Angle checking commences upon reaching the preset SNUG TORQUE value, and continues until
completion of the fastening process.
P
In Angle Control method, the Final Angle High and Low Limits are set based upon the engineering
specification for that specific fastener. The fastening operation will stop if the Fianl Angle High Limit
is exceeded.
FINAL ANGLE HIGH LIMIT
Reduced Joint Friction
Incorrect parameter set-up.
FINAL ANGLE LOW LIMIT Reject condition caused by another monitor item reject.
Peak Torque High Limit
Peak Torque Low Limit
Torque
Angle/Time
Snug Torque
Ramp Down Start Torque
1
st
Torque
2
nd
Torque
Final Torque High Limit
Final Torque Low Limit
2
nd
Time
1
st
Time
Standard
Angle
Final Angle High Limit
Final Angle Low Limit
To Next Page
