Chapter 8 System Operation
PAGE 8- 14
When the state of the
system is changed due
to an Abnormal
occurrence or the
STOP signal set to
“OFF,” etc., transition to
the status display is
performed
automatically and the
contents indicated in
the respective display
8-3-6 Fastening Status Display
In the status view, the currently selected parameter (sequence) No. (01 to 32) is displayed in the PAR No.
display. The Spindle No. of the Unit is indicated by the 10s and 1s digits of the D-No. display. The indication
at the 100s digit of the D-No. Display differs according to the currently used system and whether the
Controller is the MASTER Axis or the SLAVE axis. (see below)
■
■■
■

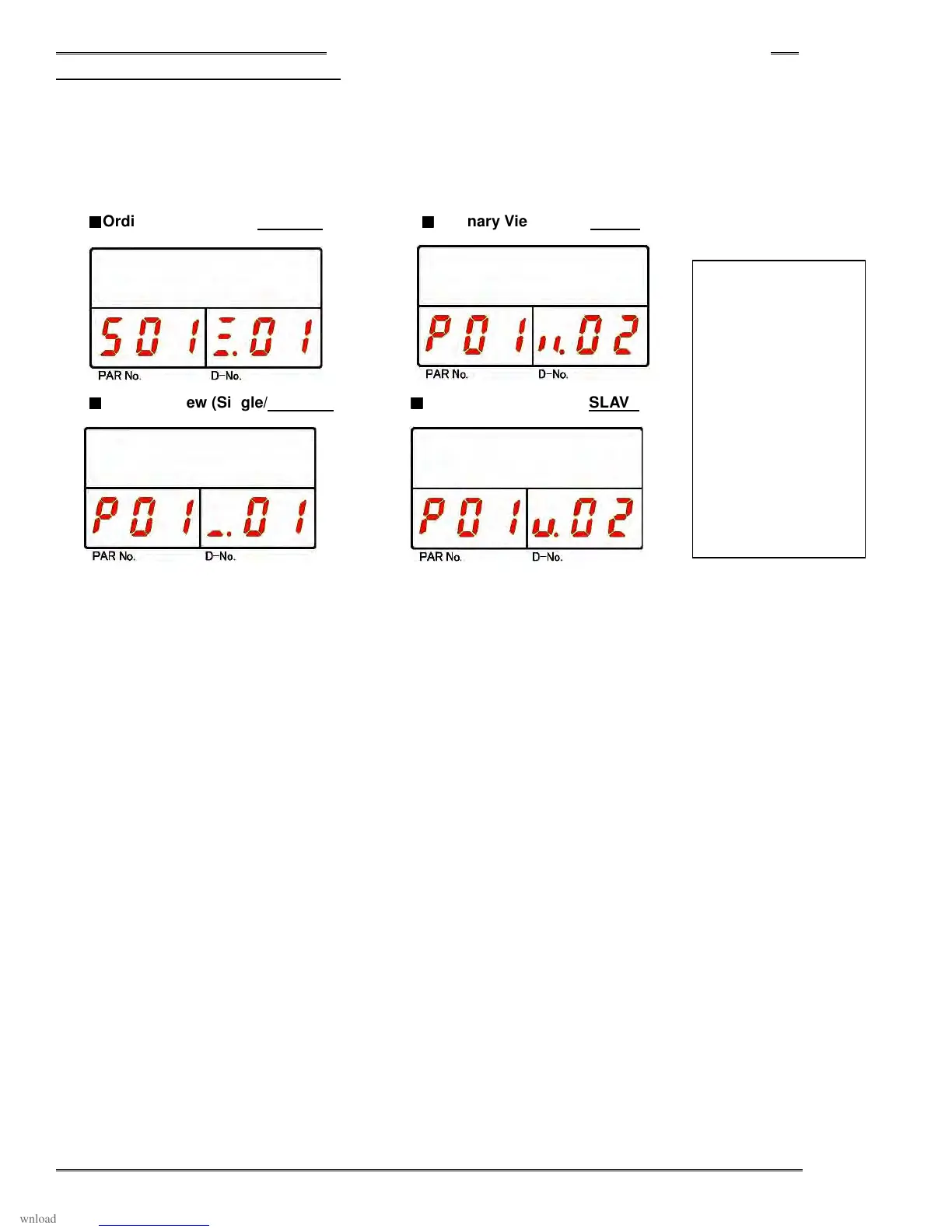

Ordinary View (Multi/MASTER Axis)
■
■■
■
Ordinary View (Multi/SLAVE Axis)
■
■■
■
Ordinary View (Single/MASTER Axis)
■
■■
■
Ordinary View (Single/SLAVE Axis)
