Chapter 3 System Description
PAGE 3-16

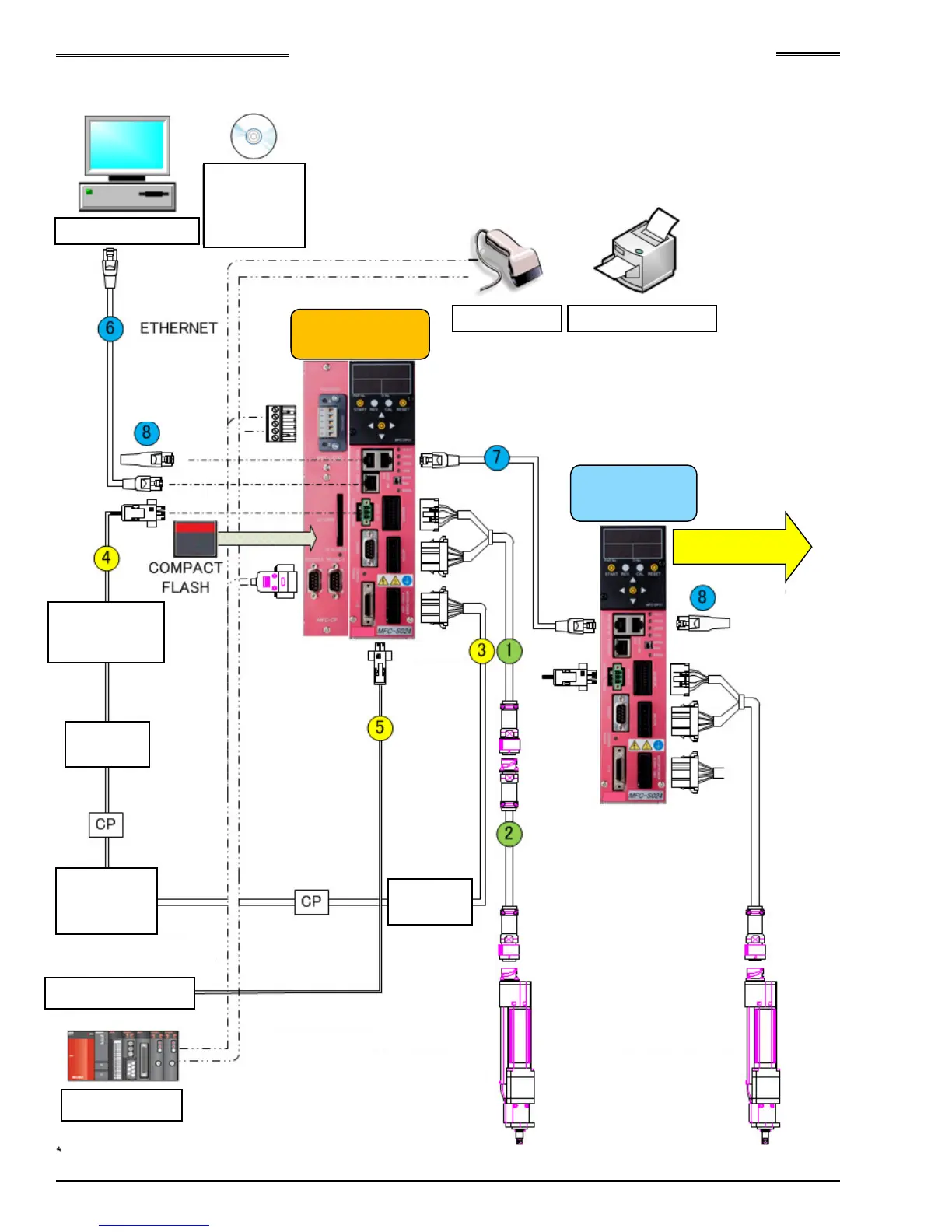

● Multi System Wiring Diagram
* Please refer to cabling chart (below) for details on the respective cables.
Maximum 32-Spdl
configuration
Host PC/Server
AFC3000
User
Console
Software
MASTER Spdl (No. 1)
Multi Control
(Barcode) Serial Printer
SLAVE Spdl (No. 2)
Multi Control
Axis Link
terminator
Axis Link
terminator
Drive Power
Cable
Control Power
Source
24V DC
Noise
Filter
3-phase Power
Source
200 to 230V AC
50/60Hz
* Must be grounded
* CP: Circuit Protector
*
Safety
stop signal
during use of
fieldbus. (controls all spindles)
Tool Unit 1
(CFT-***RS*)
Tool Unit 2
(CFT-***RS*)
Noise
Filter
External PLC
Emergency Stop Circuit
