FEC AFC3000 - Page 51

Chapter 3 System Description
PAGE 3-18
■MFC－
－－
－*024,*060 Power Cables Part # ： FEB-1260 10 Feet Long (Was FEB-1631 – parts are interchangeable)
●Minimum bending radius ： 120mm

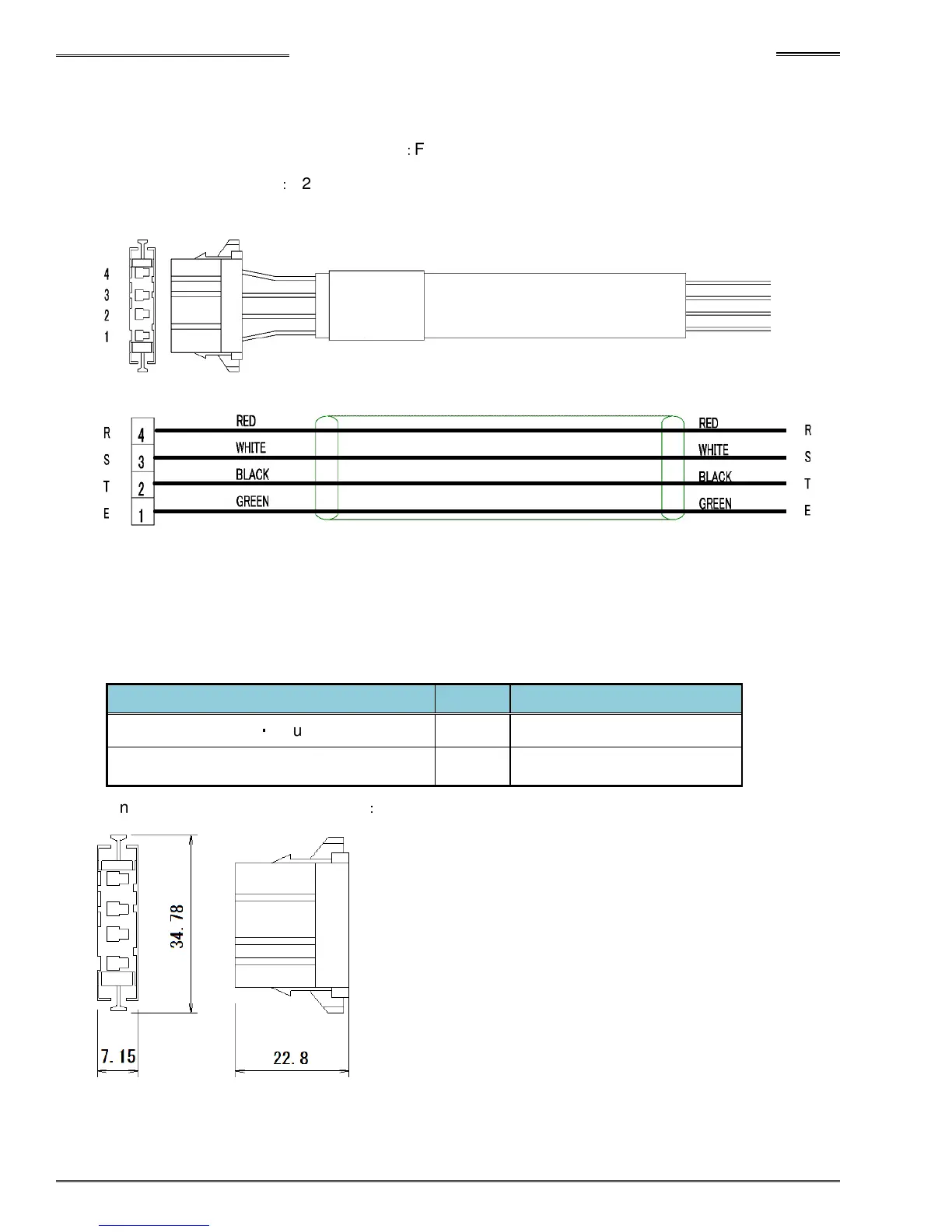

●Cable Drawing
R, S, T: 3 Phase AC Power E: Earth Ground
●Connector Model
Type
Manf.
Model No.
D3200S Receptacle ・ Housing
AMP 1-178128-4
Receptacle Contact (Pin)
(Crimp type)
AMP 1-175218-3
●Connector Size (Controller side, Unit ： mm)
Controller Side
