FEC AFC3000 - Page 52

Chapter 3 System Description
PAGE 3-19
■MFC－
－－
－S120 Power Cables (Part # ： FEB-1607) 10 Feet Long (For RM5 Motor)
(FEB-1607A for RM4 Motor – uses (4) conductor cable only and connects to either “A” or “B” side of connector)
●Minimum bending radius ： 120mm

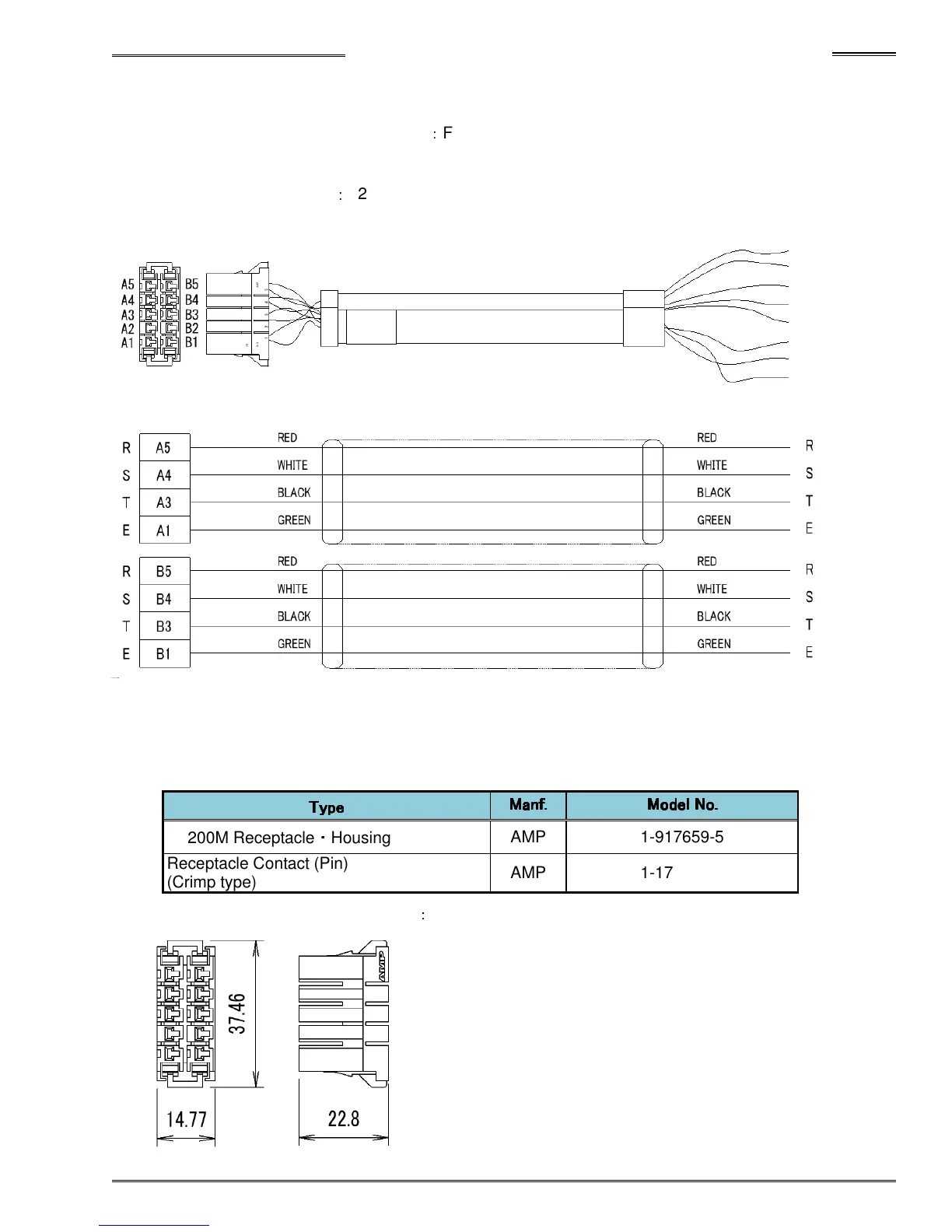

●Cable Drawing
R, S, T: 3 Phase AC Power E: Earth Ground
●Connector Model
Type
TypeType
Type
Manf.
Manf.Manf.
Manf. Model No.
Model No.Model No.
Model No.
D3200M Receptacle ・ Housing
AMP 1-917659-5
Receptacle Contact (Pin)
(Crimp type)
AMP 1-175218-3
●Connector Size (Controller side, Unit ： mm)
Controller Side
