Chapter 3 System Description
PAGE 3-23
■ Tool Cable Adapter for MFC-S120 (NFT Type RM4 Motors) FEC Part# FEB-1648
This adapter is used to adapt AFC1500 cables to AFC3000 MFC controller. It plugs into the “T/D
RESOLVER” connector on the front of the controller and provides a means to connect AFC1500 cables (2)
to the MFC controller.
The cables used for an NFT tool (using an RM4 motor): FEB-1173-xx and FEB-1605-xx (xx = length in feet)

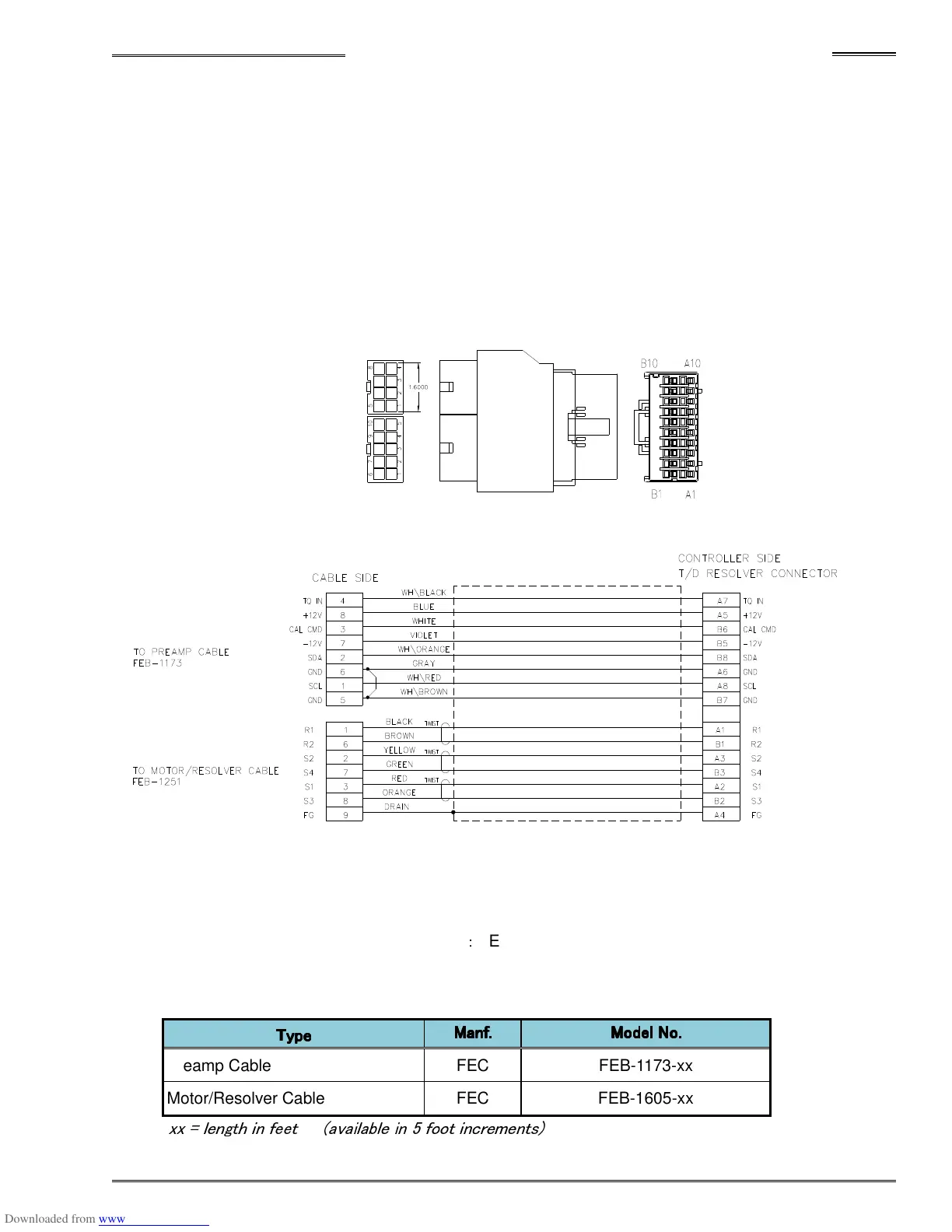

●Adapter Drawing
(Note: Obsolete Part # used prior to May/2016
：
FEB-1641-*
Length in Feet
)
●Cables used in conjunction with NFT tool and cable adapter
Type
TypeType
Type
Manf.
Manf.Manf.
Manf.
Model No.
Model No.Model No.
Model No.
Preamp Cable FEC FEB-1173-xx
Motor/Resolver Cable FEC FEB-1605-xx
xx = length in feet (available in 5 foot increments)
