Chapter 3 System Description
PAGE 3-24
20-22AWG

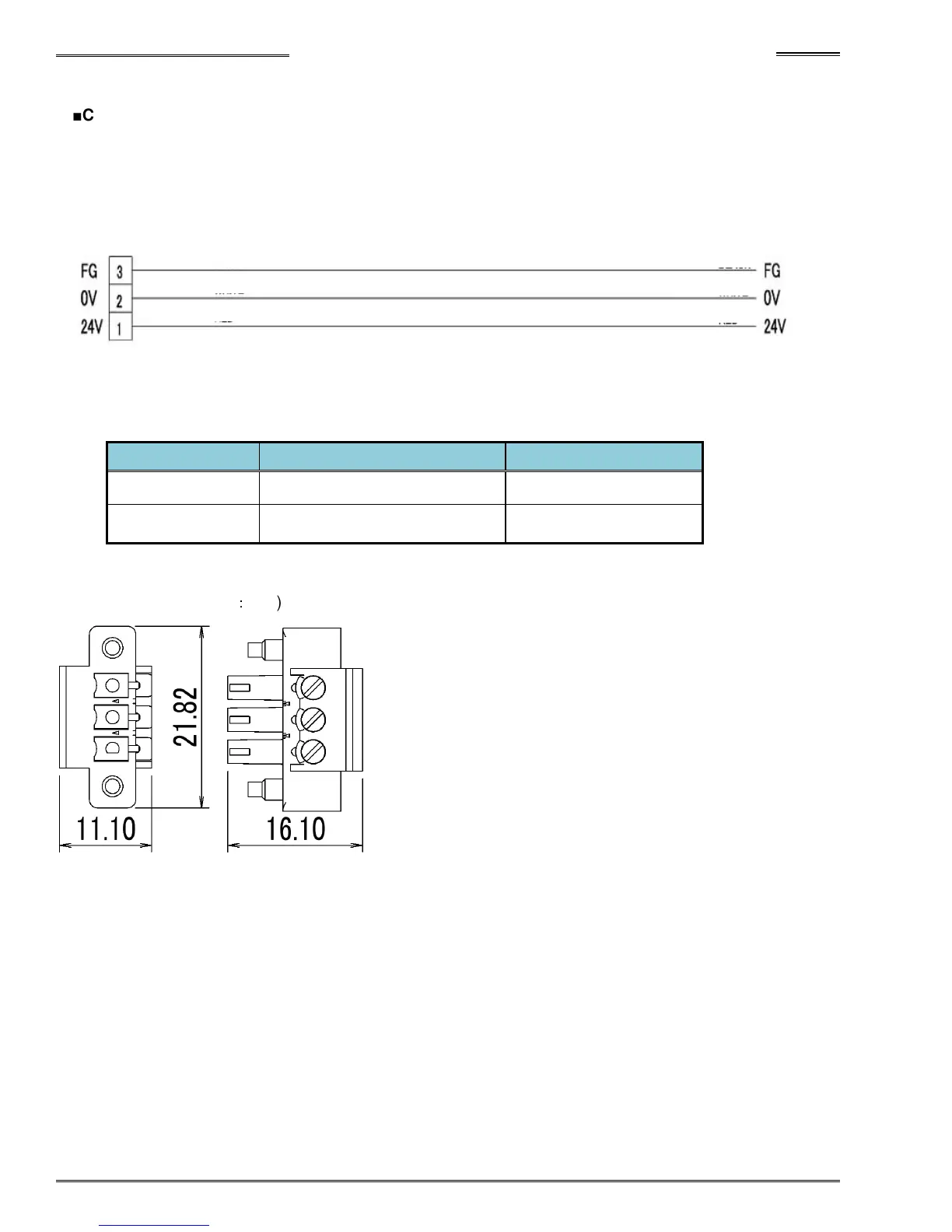

■Control Power Connector (Common for all units)
24VDC control power must be supplied for each MFC Controller. Common 20-22AWG wire can be used
to wire the supplied teriminal connector on the front of the controller.
(Wire color shown as reference only – wire to local codes)
●Connector Model (Controller side)
Type
Connector Phoenix Contact MC 1.5/2-STF-3.81
Connector Case
(optional)
Phoenix Contact KGG-MC 1.5/3
*Note: Connector is supplied with controller – wiring is responsibility of user
●Connector Size (Unit
：
mm)
Controller Side
