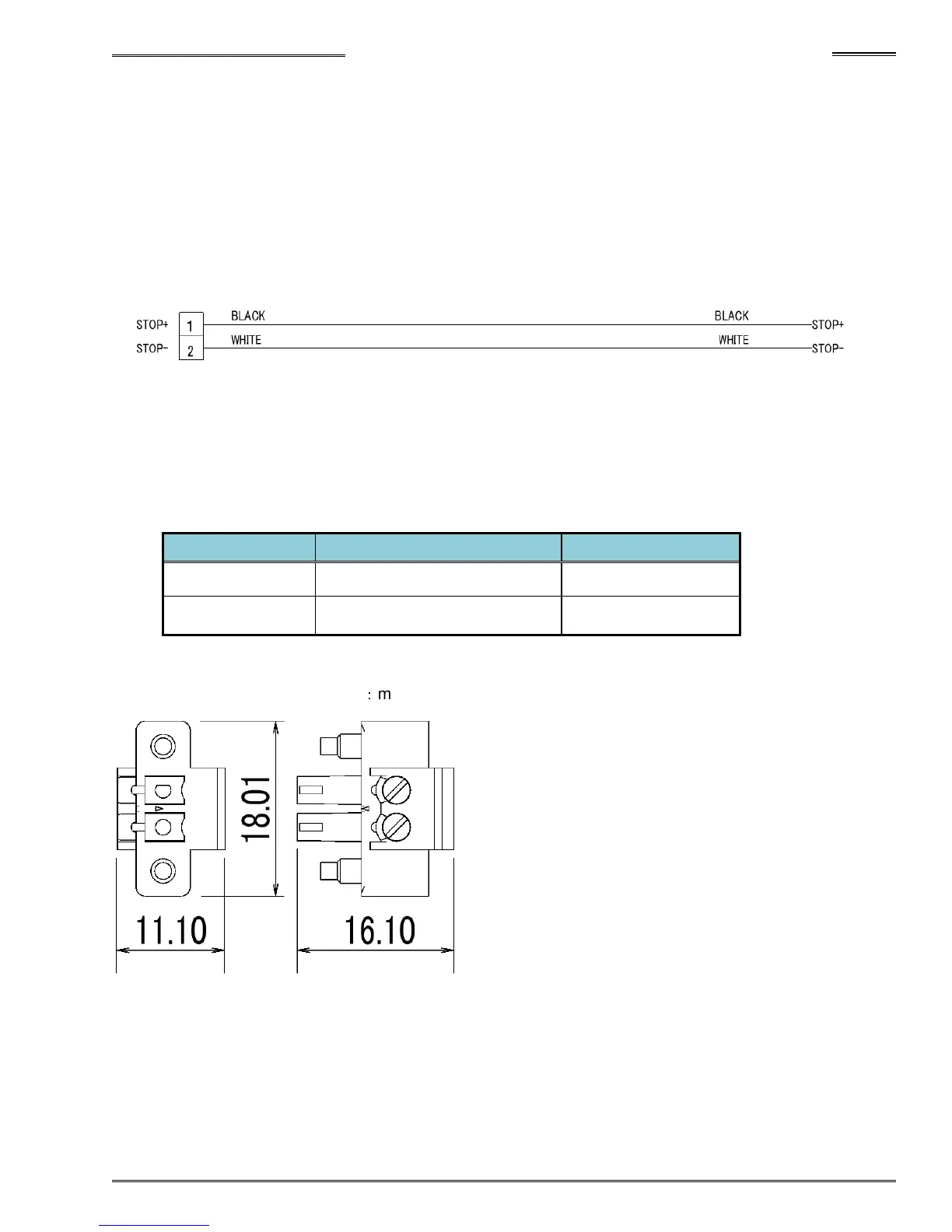

■ Auxilary Emergency Stop Signal Connector
Provides hardwired STOP signal in the case where Fieldbus is used for I/O interface. (Or a redundant
STOP signal if discrete I/O is used) Polarity of wiring must be followed as shown below. (See heading
4-10 for wiring information) Common 20-22AWG wire can be used to wire the supplied teriminal
connector on the bottom of the controller.
(Wire color shown as reference only – wire to local codes)
●Connector Model (Controller side)
Type
Connector Phoenix Contact MC 1,5/2-STF-3,81
Connector Case
(not required)
Phoenix Contact KGG-MC 1.5/2
*Note: Connector available from FEC or other sources – wiring is responsibility of user
●Connector Size (Unit side, Unit
：
mm)
Controller Side
20-22AWG
To Next Page
