Chapter 3 System Description
PAGE 3-26

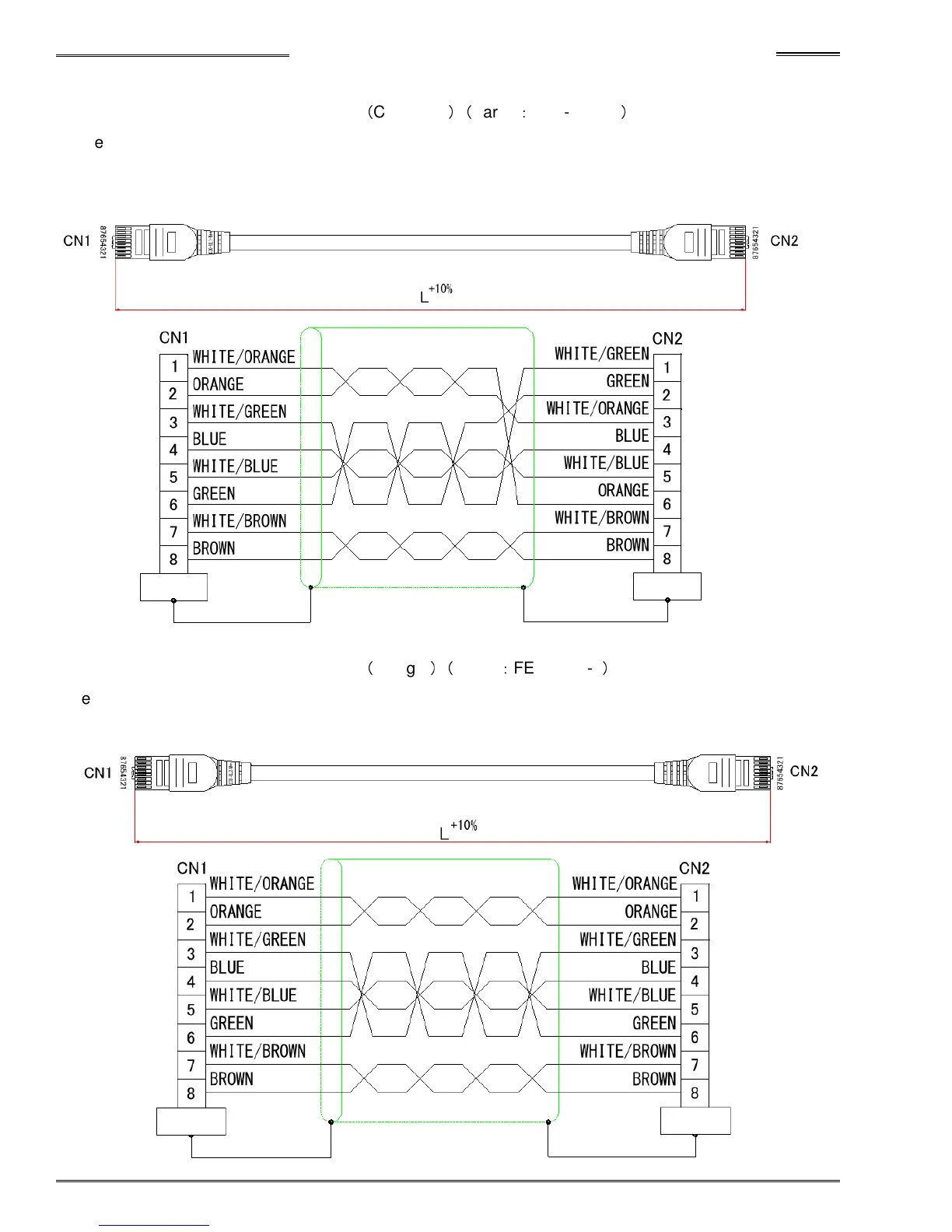

■ PC Communication Ethernet Cable
（
Crossover
）（
Part #
：
FEB-1331-3
）
(The Crossover cable is required direct from a PC to the Axis controller – Note: Newer PC’s have
auto-detect Ethernet hardware and a straight cable will work in place of a crossover cable)
●Cable Drawing
■ PC Communication Ethernet Cable
（
Straight
）（
Part #
：
FEB-1268-7
）
(7ft)
(Used for PC communication through a Ethernet Hub)
●Cable Drawing
Frame
Frame
Shield
Shield
Frame
Frame
To Next Page
