Flexim FLUXUS G704 User Manual

UMG70XV3-4EN 12.01.2009 175

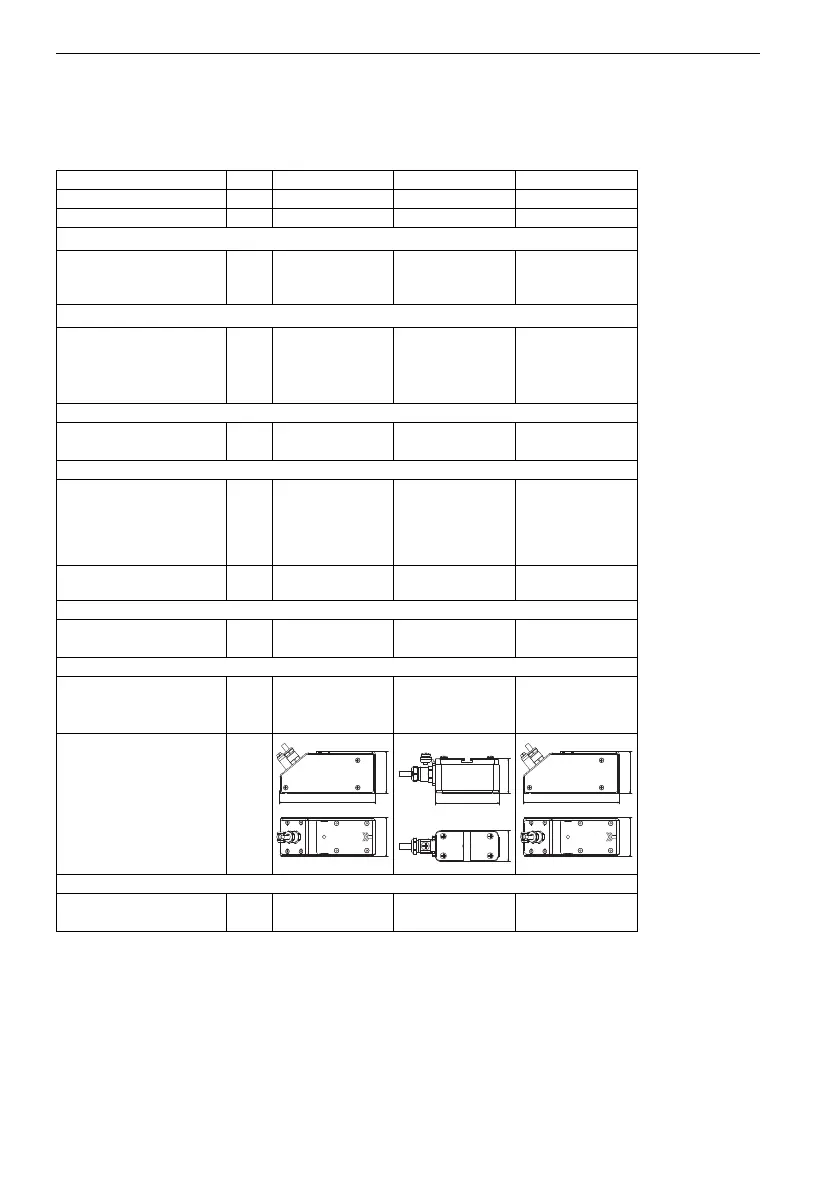

A Technical Data
Transducers
Shear Wave Transducers (for ATEX zone 1)
technical type GDK1N31 GDM1N31 GDG1N31
order code GSK-NA1TS GSM-NA1TS GSG-NA1TS
transducer frequency MHz 0.5 1 0.2
medium pressure
1
min. extended bar 20 20 20
min. bar metal pipe: 30
plastic pipe: 1
metal pipe: 30
plastic pipe: 1
metal pipe: 30
plastic pipe: 1
outer pipe diameter
2
min. extended mm 70 30 250
min. recommended mm 80 40 380
max. recommended mm 500 80 810
max. extended mm 720 120 1100
pipe wall thickness
min. mm 5 2.5 14
max. mm - - -
material
housing PEEK with
stainless steel
cap304
(1.4301)
stainless steel
316 Ti (1.4571)
PEEK with
stainless steel
cap304
(1.4301)
contact surface PEEK PEEK PEEK
degree of protection
according to EN 60529
IP 65 IP 65 IP 65
transducer cable
type 2549 2549 2549
length m 5 4 5
dimensions
length l mm 126.5 60 129.5
width b mm503050
height h mm 53.5 33.5 64
dimensional drawing
operating temperature
min. °C -40 -40 -40
max. °C +130 +130 +130
continued on next page
h
b
l
h
b
l
h
b
l
