38 UMG70XV3-4EN 12.01.2009
6 Installation of FLUXUS G704
6 Installation of FLUXUS G704
6.1 Location
Select the measuring point according to the recommendations in chapter 5. The ambient
temperature must be within the operating temperature range of the transducers.
Select the location of the flowmeter within cable reach of the measuring point. The ambi-
ent temperature must be within the operating temperature range of the flowmeter (see
annex A, section Technical Data).
If the measuring point is within an explosive atmosphere, the danger zone and gases
which may be present have to be determined. The transducers and the flowmeter have
to be appropriate for these conditions.
Observe the safety instructions in chapter 2.
6.2 Wall Installation

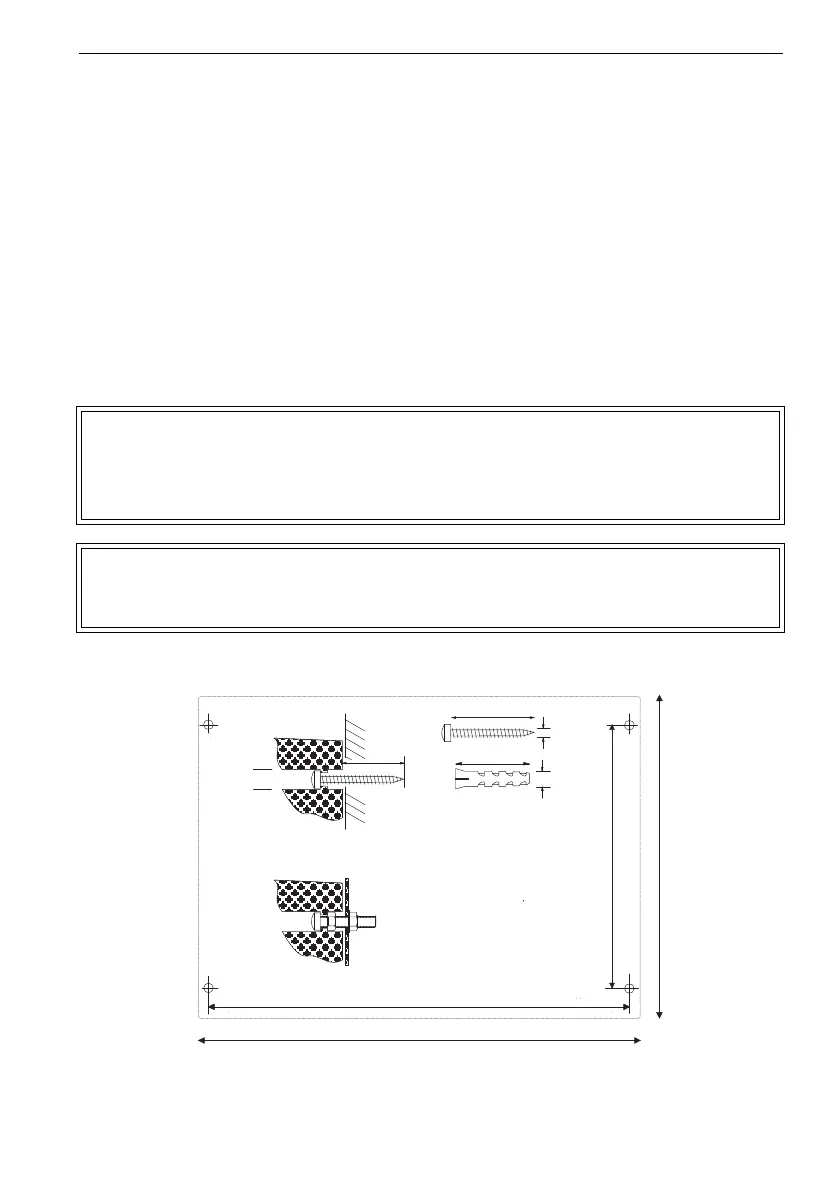

Fig. 6.1: Wall installation (dimensions in mm)
Attention! The flowmeter FLUXUS G704 must be operated outside of explosive
atmospheres.
The flowmeter FLUXUS G704 A2 must be operated outside of ATEX
zone 0 and 1.
Attention! The degree of protection of the flowmeter is only guaranteed if the
cable glands are firmly tightened and the housings have been tightly
screwed.
163
265
200
35
Ø 3.5
Ø 6
M4
25
35
280
