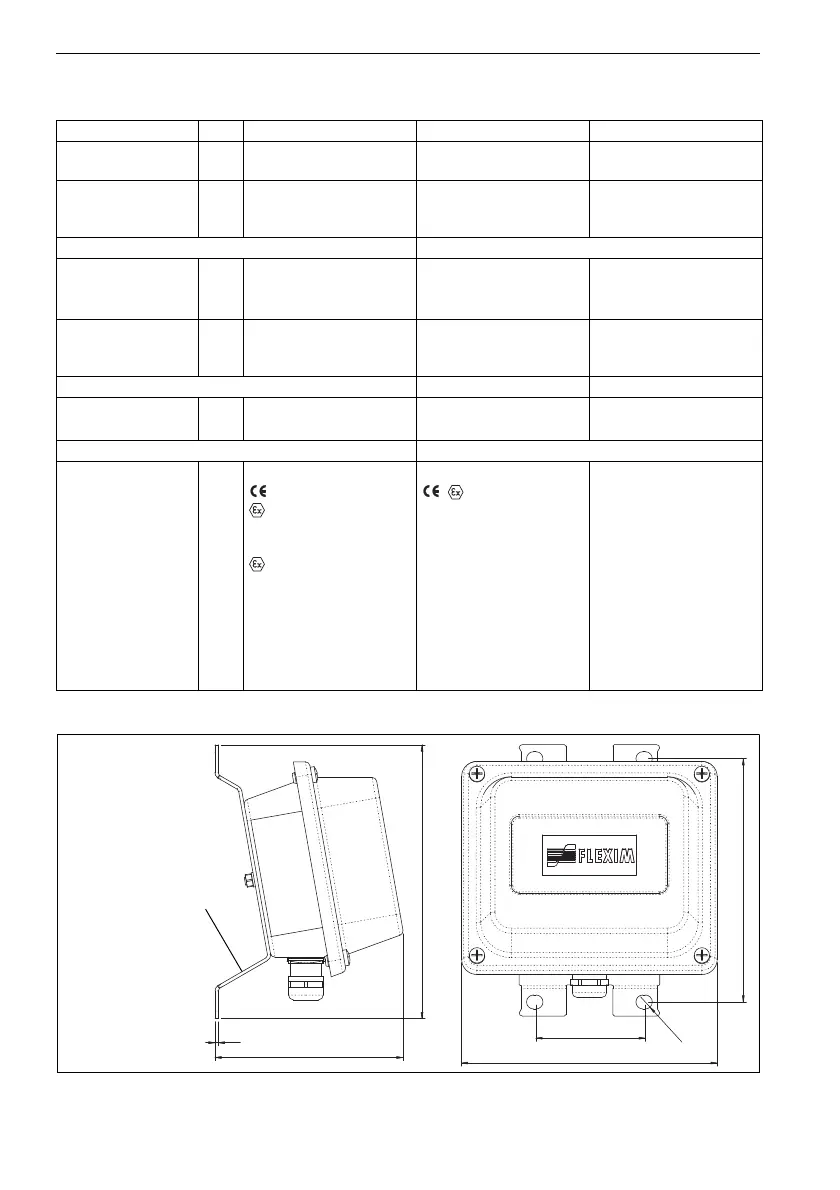

Flexim FLUXUS G704 User Manual

UMG70XV3-4EN 12.01.2009 201
A Technical Data
Junction Box
Dimensions
technical type JB01S4E3M JB02 JB03
dimensions see dimensional draw-
ing
see dimensional draw-
ing
see dimensional draw-
ing
fixation wall mounting
option:
2 " pipe mounting
wall mounting
option:
2 " pipe mounting
wall mounting
option:
2 " pipe mounting
material
housing stainless steel 316L
(1.4404)
stainless steel 304
(1.4301)
stainless steel 304
(1.4301)
gasket silicone silicone silicone
degree of protec-
tion according to
EN 60529
IP 67 IP 67 IP 67
operating temperature
min. °C -40 -40 -40
max. °C +80 +80 +80
explosion protection
ATEX zone 1 2 -
marking 0044
II2G Ex e mb II
(T6)...T4
T
a
-40...+(70) 80 °C
II 2D Ex tD A21 IP 67
T 100 °C
II3G Ex nA II
T6...T4
T
a
-40...+80 °C
-
certification IBExU06ATEX1161 - -
type of protection
junction box:
increased safety
decoupled network:
encapsulation
non sparking -
174
119
2
wall mounting
holder
70
163.5
156
Ø
9
