6 Installation of FLUXUS G704
6.4.3 Transducers (ATEX Zone 2, FM Div. 2, without Explosion
Protection) - Direct Connection
Observe the safety instructions in chapter 2.
• Remove the left blind plug for the connection of the transducers (see Fig. 6.7).
• Insert the transducer cable with the SMB connectors in the housing.
• Fix the transducer cable by tightening the cable gland.
• Connect the SMB connectors with the sockets of the flowmeter (see Fig. 6.7 and Table
6.5).

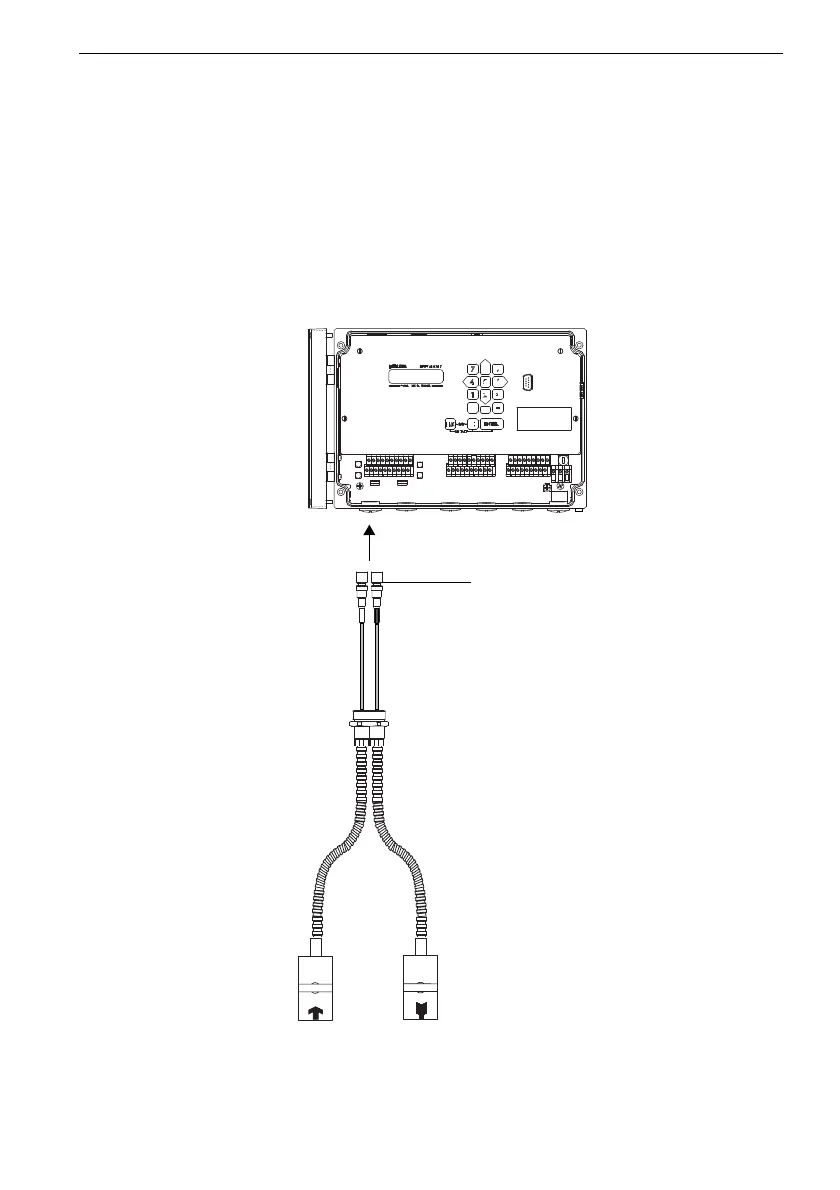

Fig. 6.7: Transducers (ATEX zone 2, FM Div. 2, without explosion protection)
- direct connection
SMB connector
transducers:
• ATEX zone 2
• FM Div. 2
• without explosion protection
