50 UMG70XV3-4EN 12.01.2009
6 Installation of FLUXUS G704
6.5 Connection of the Transducers - Connection System AS
• Remove the left blind plug for the connection of the transducers (see Fig. 6.10).
• Insert the extension cable with the AMP-Quick and SMB connectors in the housing.
• Fix the extension cable by tightening the cable gland.
• Connect the AMP-Quick and the SMB connectors with the sockets of the flowmeter
(see Fig. 6.10 and Tabelle 6.9).

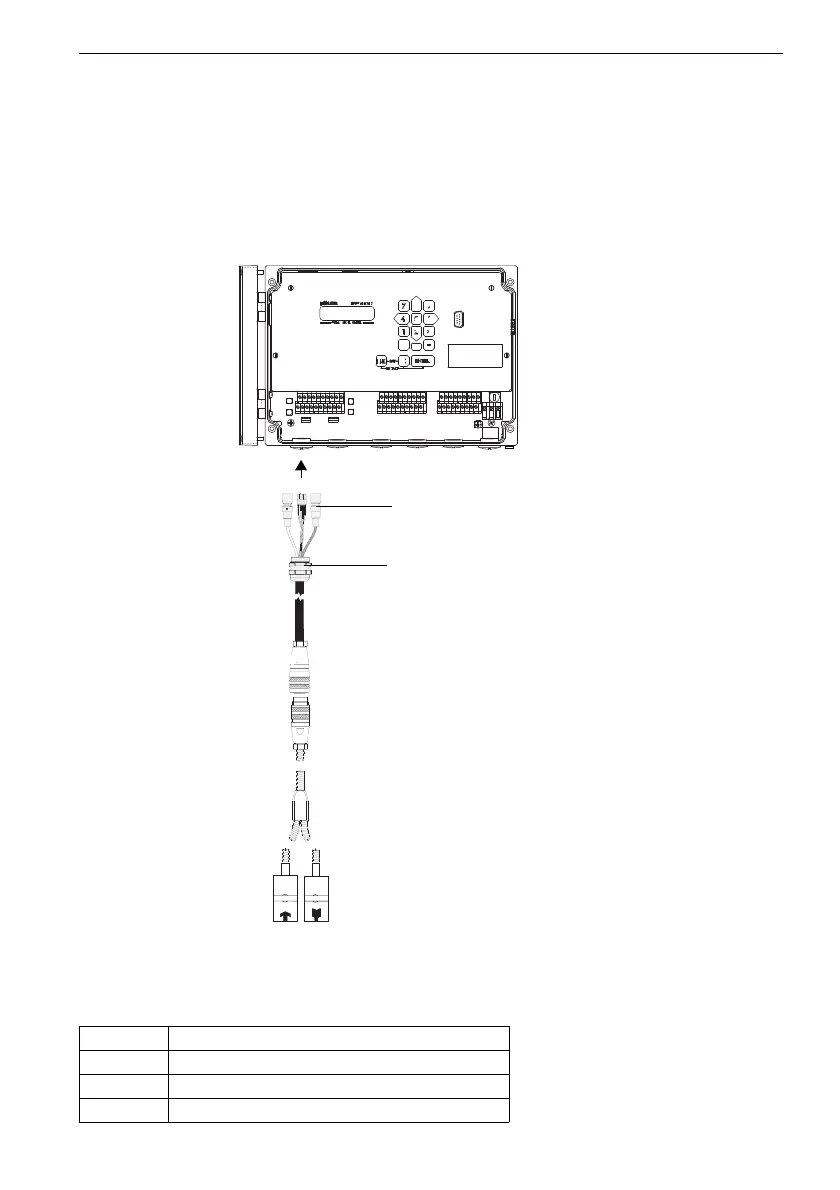

Fig. 6.10: Transducers (ATEX zone 2, FM Div. 2, without explosion protection) -
direct connection
Tabelle 6.9: Terminal assignment
terminal connection
X_AV SMB connector (white or marketd cable)
X_AR SMB connector (brown cable)
X1 AMP-Quick connector
AMP-Quick and
SMB connectors
cable gland
transducers:
• ATEX zone 2
• FM Div. 2
• without explosion protection
