Flexim FLUXUS G704 User Manual

UMG70XV3-4EN 12.01.2009 39
6 Installation of FLUXUS G704
• Remove the cover of the housing.
• At the chosen location, drill 4 holes in the wall (see Fig. 6.1).
• Insert dowels in the holes.
• Fix the housing with screws to the wall.
6.3 Pipe Installation
Installation at 2 " pipe
• Fix the pipe mounting plate (2) to the pipe (see Fig. 6.2).
• Fix the instrument mounting plate (3) with the screws (4) to the pipe mounting plate (2).
• Fix the bottom side of the housing to the instrument mounting plate (3).
Installation at pipe > 2 "
The mounting kit will be fixed with tension straps (5) instead of the shackle (see Fig. 6.2).
Push the tension straps through the holes of the instrument mounting plate (3).

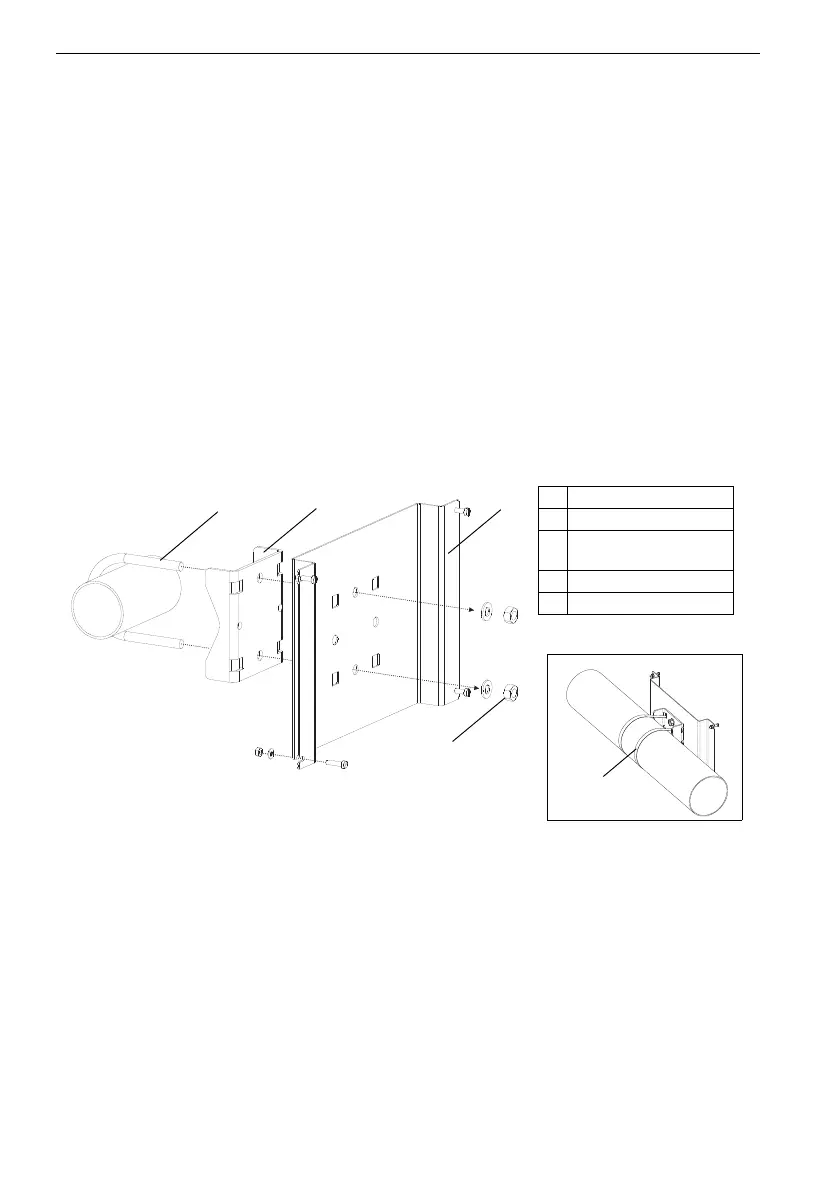

Fig. 6.2: Pipe installation set
1 shackle
2
pipe mounting plate
3
instrument mounting
plate
4nut
5 tension strap
1
2
3
4
5
