Flexim FLUXUS G704 User Manual

UMG70XV3-4EN 12.01.2009 57
6 Installation of FLUXUS G704
• Stop the measurement.
• Insert the sensor module in the lower row of terminal strip KL1 (see Fig. 6.16). The
transducers of measuring channel A are connected to SA1...SA4, the transducers of
measuring channel B to SB1...SB4.
• Edit the program branch PARAMETER once completely. Press ENTER until the main
menu is displayed again.
• The measurement can be restarted afterwards.

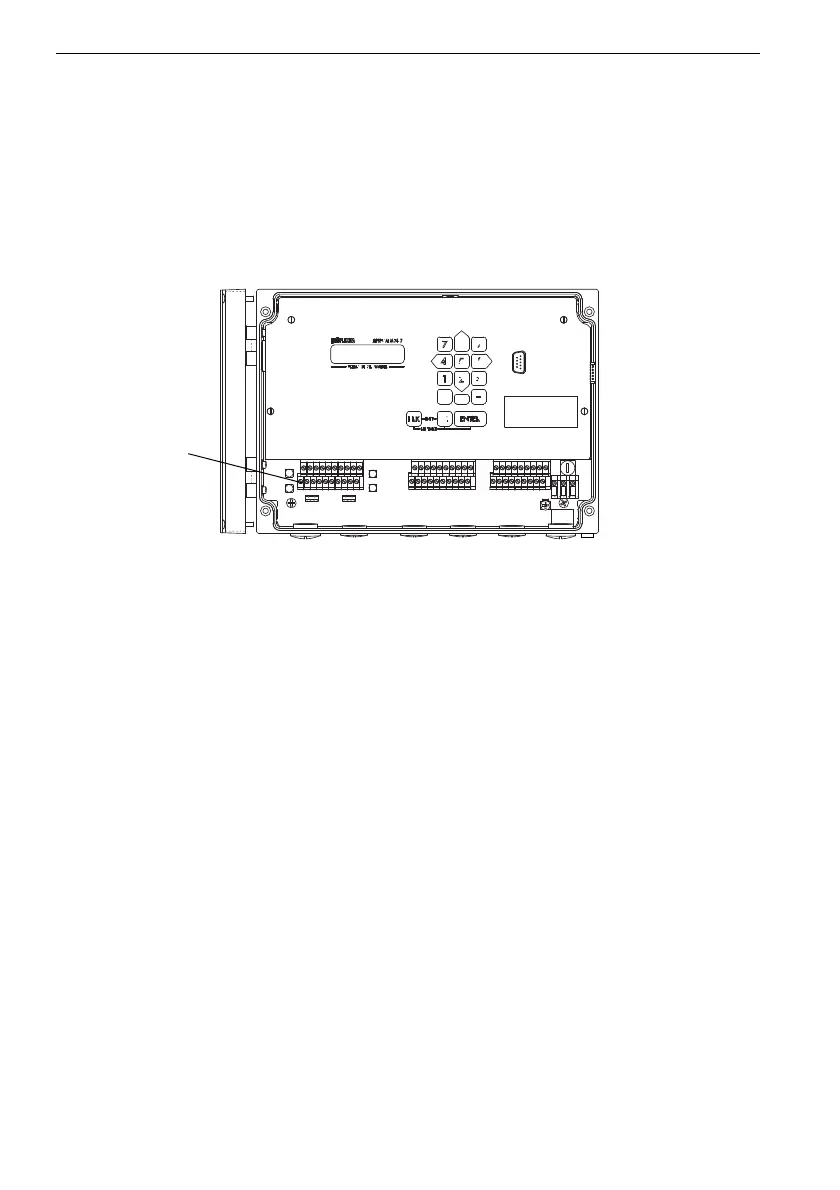

Fig. 6.16: Connection of the sensor module (SENSPROM)
sensor module
(KL1)
