UMG70XV3-4EN 12.01.2009 61
7 Installation of FLUXUS G709

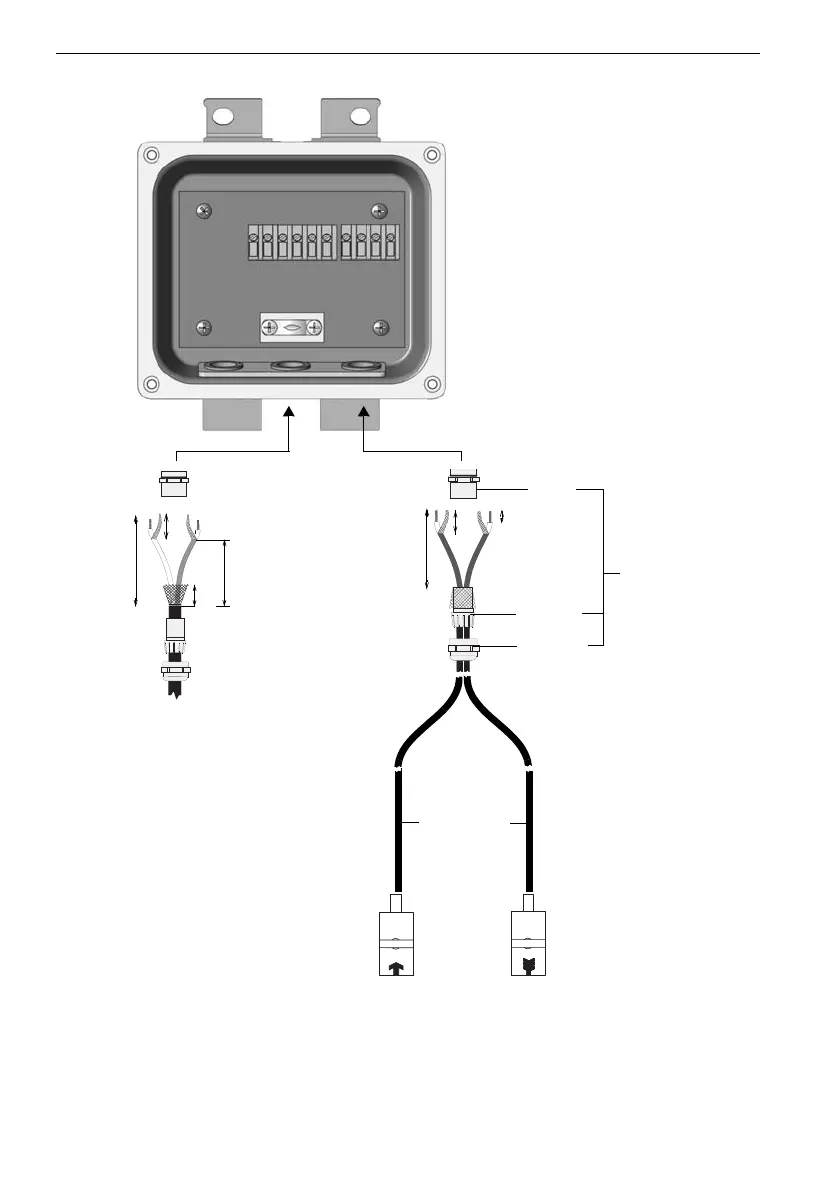

Fig. 7.2: Transducers (ATEX zone 1) - connection via junction box,
connection of extension cable and transducer cable to the junction box
20 mm
10 mm
100 mm
transducer
cable
transducers
ATEX zone 1
cable gland
basic
part
compres-
sion part
cap nut
100 mm
75 mm
12 mm
extension cable
20 mm
