11.9 PROFIBUS DP
In Profibus DPV1 interface, baud rate is detected automatically. Supported baud rates are 9.6 kbps, 19.2 kbps,
45.45 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps and 12 Mbp
instance exists. Refer to Profibus parameters, sub-block 19-,
GSD file is available on www.flintec.com .
There are LEDs near the Profibus connector which are:
A1 Operation mode LED
State
Indication
Comment
Off
Not online /No power
Check power and cable
On
On-line, data exchange
-
Flashing
On-line, clear
-
A3 Operation Error LED
State
Indication
Comment
Off
No error
Flashing (2 flash)
PROFIBUS configuration error
Check GSD file configuration.
B1 Module Status LED
State
Indication
Comment
Off
Not power or not initialized
No power or Profibus module is in
initialization state
On
Initialized
Flashing
Initialized, diagnostic event(s)
present
Diagnostic is active
B3 Module Error LED
State
Indication
Comment
Off
No error
On
Exception error
There is an exception error
11.9.1 Electrical Connection

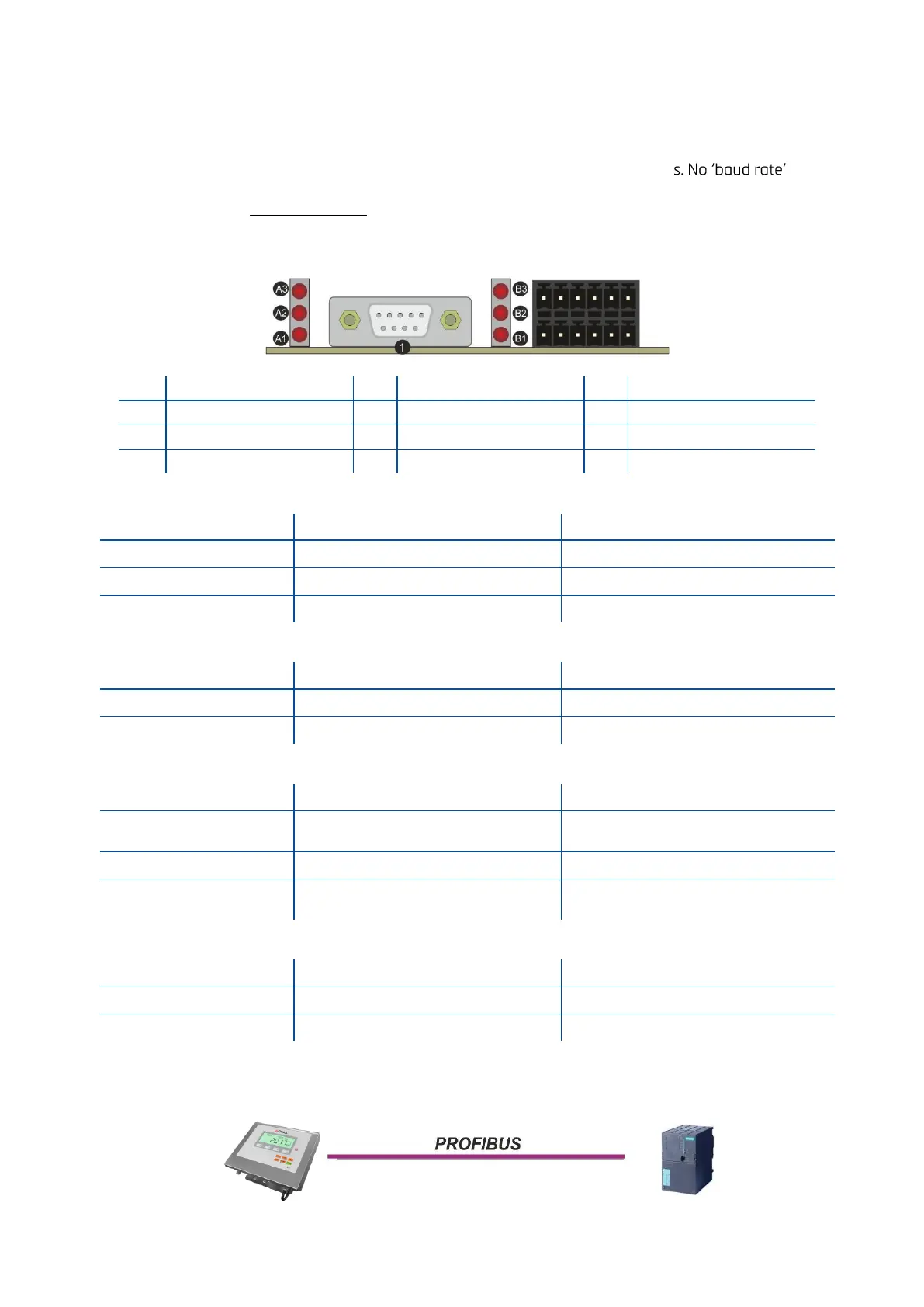

Figure 11.7 - PLC Connection
Ref.
Definition
Ref.
Definition
Ref.
Definition
A3
Operation Error LED
B3
Module Error LED
A2
Not used
B2
Not used
A1
Operation mode LED
B1
Module Status LED
1
Profibus port
