11.13 CC-LINK
After setting related parameters you can communicate with FT-111 via CC-Link network. Supported
CC-Link version is v1.10 and baud rates are 156 kbps (default), 625 kbps, 2,5 Mbps, 5 Mbps and 10 Mbps.

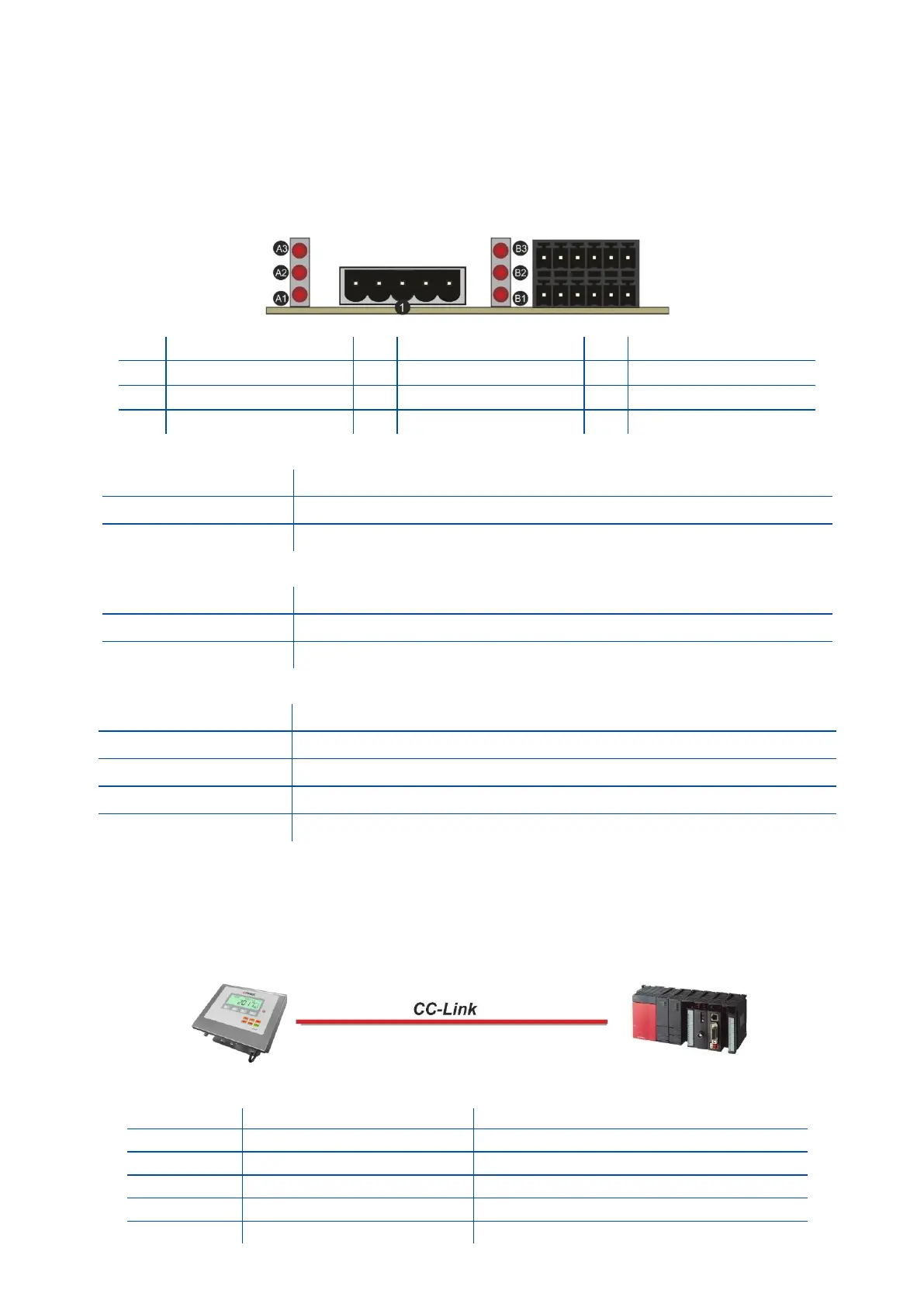

There are LEDs near the CC-Link connector which are:
A1 Operation mode LED
LED State
Description
Off
No network participation, timeout status (no power)
On
Participating, normal operation
A3 Operation Error LED
LED State
Description
Off
No error
On
Major fault (FATAL error)
B1 Module Error LED
LED State
Description
Off
No error detected (no power)
On
Major fault (Exception or FATAL event)
Flickering
CRC error (temporary flickering)
Flashing
Station Number or Baud rate has changed since startup (flashing)
In the case of red LED warning, check cabling, configuration, and station number. Power off the instrument
and reenergize the instrument 30 seconds later.
11.13.1 Electrical Connection
Figure 11.22 - PLC Connection
CC-Link Connector pin configuration
Pin
Signal
Description
1
DA
PositiveRS485 Rxd/TxD
2
DB
NegativeRS485 Rxd/TxD
3
DG
Signal ground
4
SLD
Cable Shield
5
FG
Protective Earth
Ref.
Definition
Ref.
Definition
Ref.
Definition
A3
Operation Error LED
B3
Not used
A2
Not used
B2
Not used
A1
Operation mode LED
B1
Module Error LED
1
CC-Link port
