FT-111, User Manual Rev. 2.0.0, June 2022 Page 110 of 137

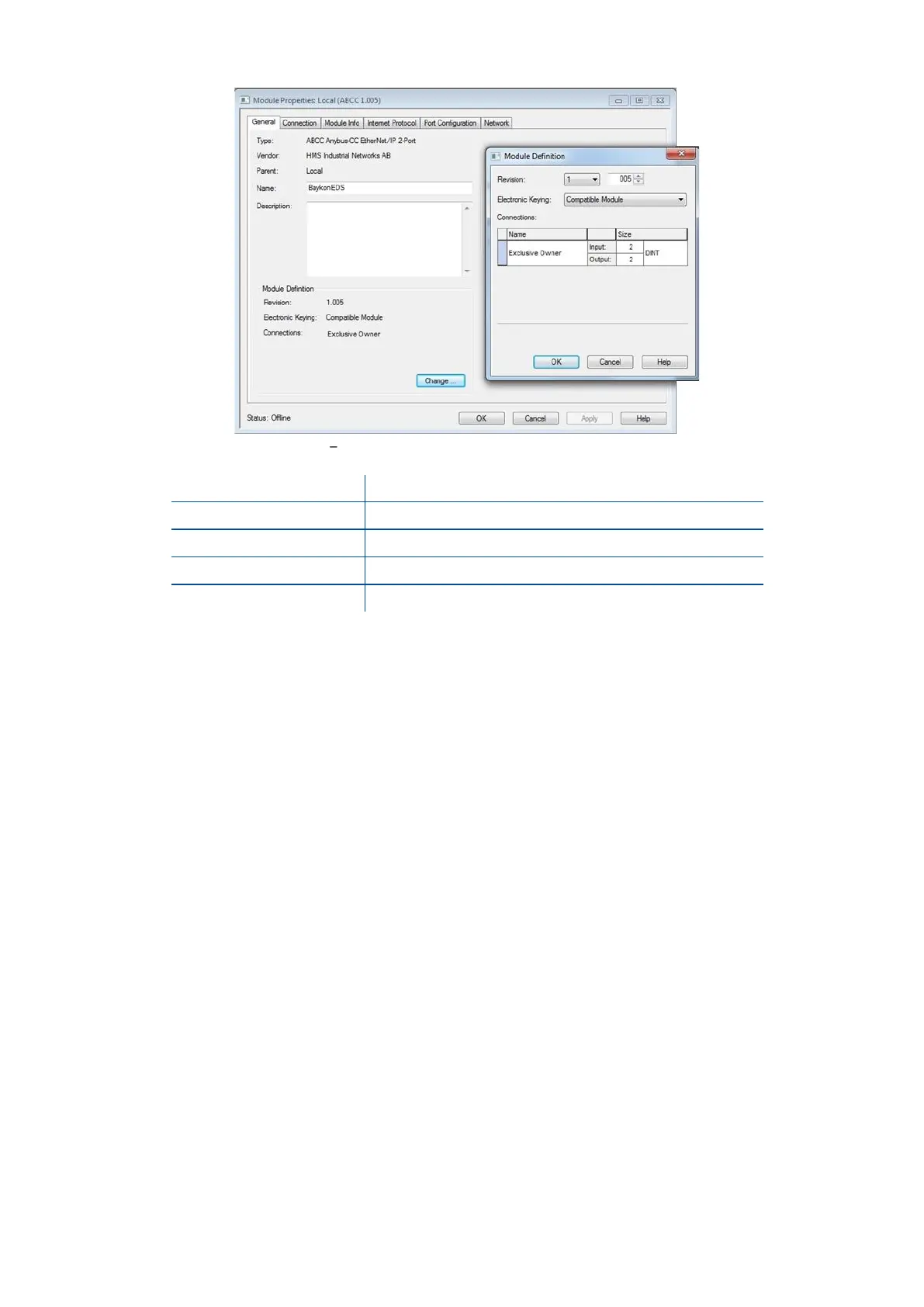

Figure 11.18 Configuration of module properties with EDS file
Data Length
Description
Input 2 words
1st Dword ( FT-111 Output to PLC Input )
Input 2 words
2nd Dword ( FT-111 Output to PLC Input )
Output 2 words
1st Dword ( PLC Output to FT-111 Input )
Output 2 words
2nd Dword ( PLC Output to FT-111 Input )
11.11.5 EtherNet/IP Data Structure
For the Data Structure see Appendix 1, page 118
