11.10.3 Profinet Parameters
Profinet parameters can be adjusted by keys in programming mode. Refer to parameter block [ 19- ].
Additionally, Profinet parameters set up is done by EtherX PC software over Local Network Area or by
IndFace2x. Both software are available on www.flintec.com .
Note: - 196.
11.10.4 GSDML Configuration
Profinet data consist of 2 pcs Input-2 words and 2 pcs Output-2 words. GSDML configuration for PLC
programmers is shown in Figure 11.13.

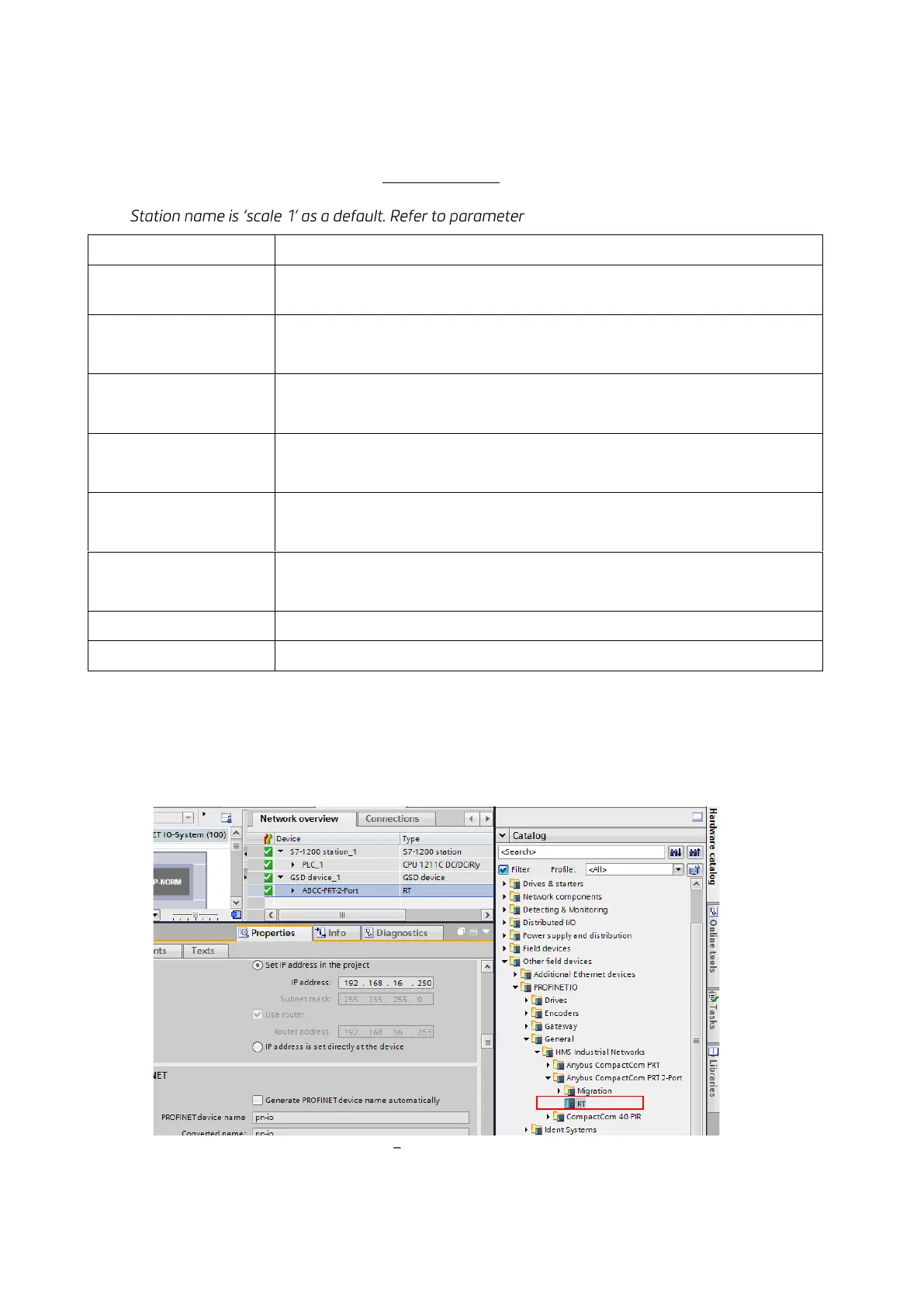

Figure 11.12 Location of Hardware catalog
RT Use with newer PLC hardware such as S7-1200 and S7-1500.
RT Migration Use with older PLC hardware such as S7-300.
Parameters
Descriptions
DHCP
Dynamic Host Configuration Protocol automates network parameters if it is
enabled.
Host Name
Device name of the instrument.
Refer to parameter 196.
IP Address
If DHCP is disabled, obtain IP address manually.
Refer to parameter 192.
Gateway
If DHCP is disabled, obtain default gateway manually.
Refer to parameter 195.
Subnet Mask
If DHCP is disabled, obtain subnet mask manually.
Refer to parameter 194.
Primary DNS
If DHCP is disabled, obtain primary DNS manually.
Refer to parameter 199.
Secondary DNS
If DHCP is disabled, obtain secondary DNS manually.
Password
Default password is 123456.
