Flintec FT-111 - Electrical Connection; Data Format

FT-111, User Manual Rev. 2.0.0, June 2022 Page 112 of 137
11.12.1 Electrical Connection

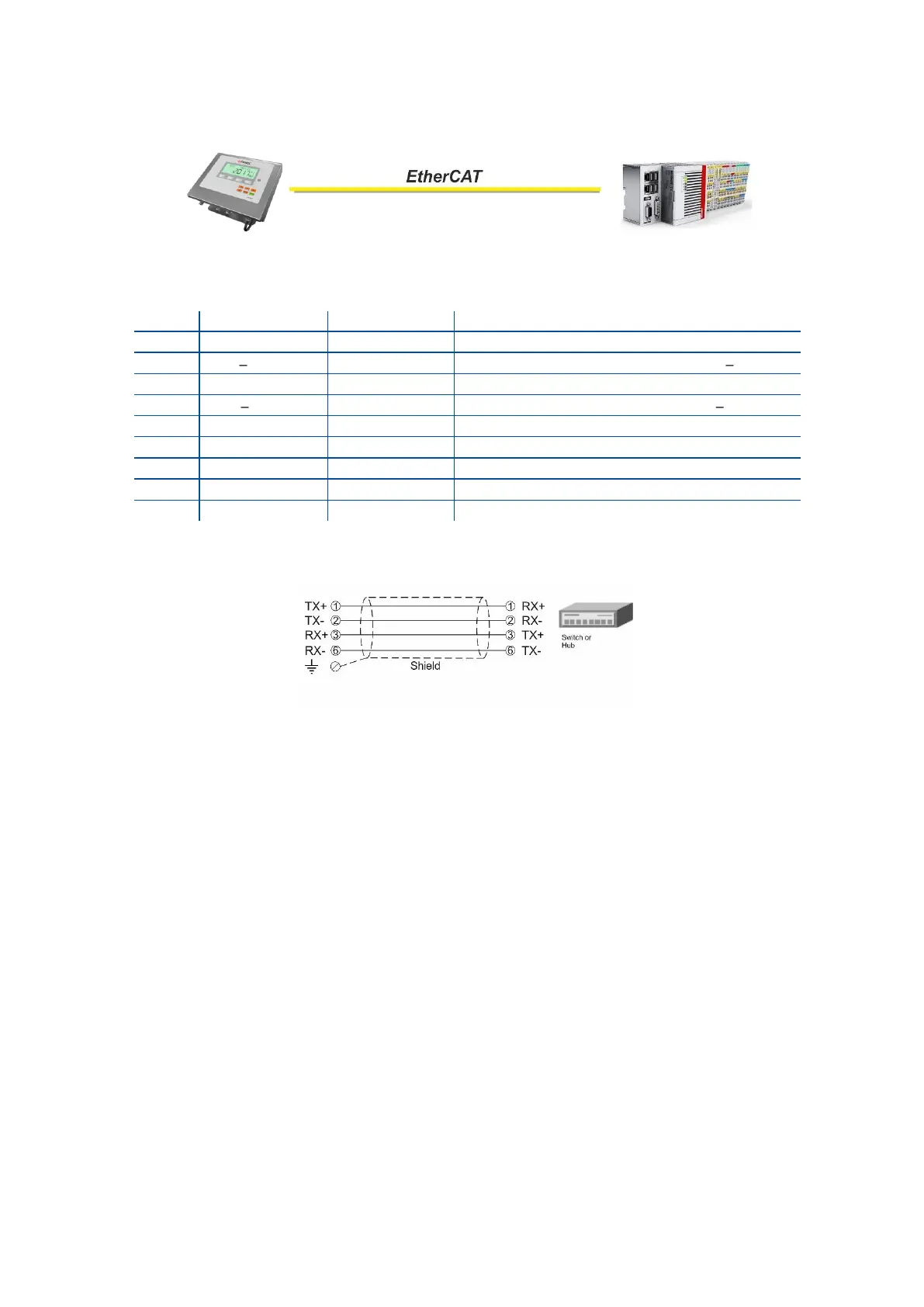

Figure 11.19 - PLC Connection
EtherCAT Connector pin configuration (RJ45)
Pin
Signal
DIR
Description
1
TX+
Out
Differential Ethernet transmit data +
2
TX
Out
Differential Ethernet transmit data
3
RX+
In
Differential Ethernet receive data +
6
RX
In
Differential Ethernet receive data
4
Not used
Terminated
5
Not used
Terminated
7
Not used
Terminated
8
Not used
Terminated
Shield
Chassis ground
The HUB connection cabling will be a direct connection as shown:
Figure 11.20 - HUB connection
Pin configuration of digital input and output connector is described on page 76.
11.12.2 Data Format
Data format of weight value can be programmable for Floating point (IEEE 754) or Integer. Refer to
parameter [ 191 ].
