11.2 ALIBI MEMORY
RELATED PARAMETERS: Main block 8--
You can fulfil your weight data recording obligations with the alibi memory in certified operation without
having paper archive. The weight data is saved into the alibi memory after every weighing operation
together with date and time. The alibi record number may also be found on the printout data.
The alibi memory recording principle is a loop memory which is deletes the oldest record after the capacity
limit 99 999 reached to overwrite the latest weighing. You can quickly access to the record of specific
weighing by entering the suitable search criteria.
11.2.1 Installation of Alibi SD card
Alibi memory requires the Alibi SD card at the SD1 card slot which is between load cell terminal and metal box
of the analogue digital converter as shown in the pictures below. If you install the alibi memory SD card,
order Alibi SD pack from Flintec or dealer.

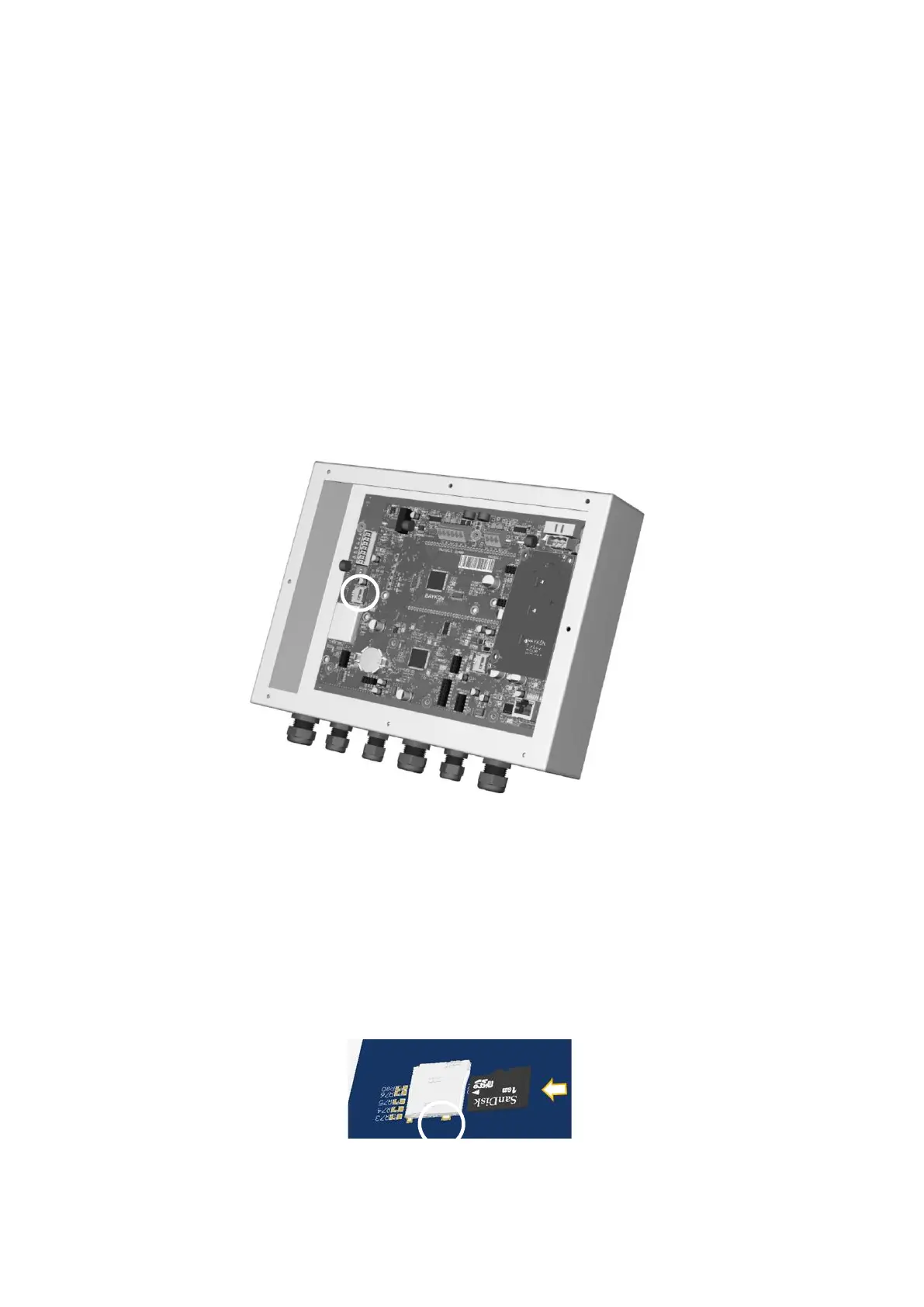

Figure 11.3- Location of Alibi SD card slot
Inserting or removing the Alibi SD card
1. De-energize the instrument and wait 30 seconds before interfering with the instrument in safe
area.
2. Remove screws of the backplane.
3. The location of the alibi card is between load cell terminal and metal box of the analogue digital
converter which is named as SD1.
4. Insert the Alibi SD card into the slot until it locks into place. Or remove the SD card by pressing it
gently. Do not use screwdriver to install or remove SD card.
5. Mount the backplane to the body.
6. Energize the instrument.
