Flintec FT-111 - Electrical Connection

FT-111, User Manual Rev. 2.0.0, June 2022 Page 108 of 137
C,D, E, F LINK/Activity LED
LED State
Description
Off
No link, no activity
Green
Link (100 Mbit/s) established
Green, flickering
Activity (100 Mbit/s)
Yellow
Link (10 Mbit/s) established
Yellow, flickering
Activity (10 Mbit/s)

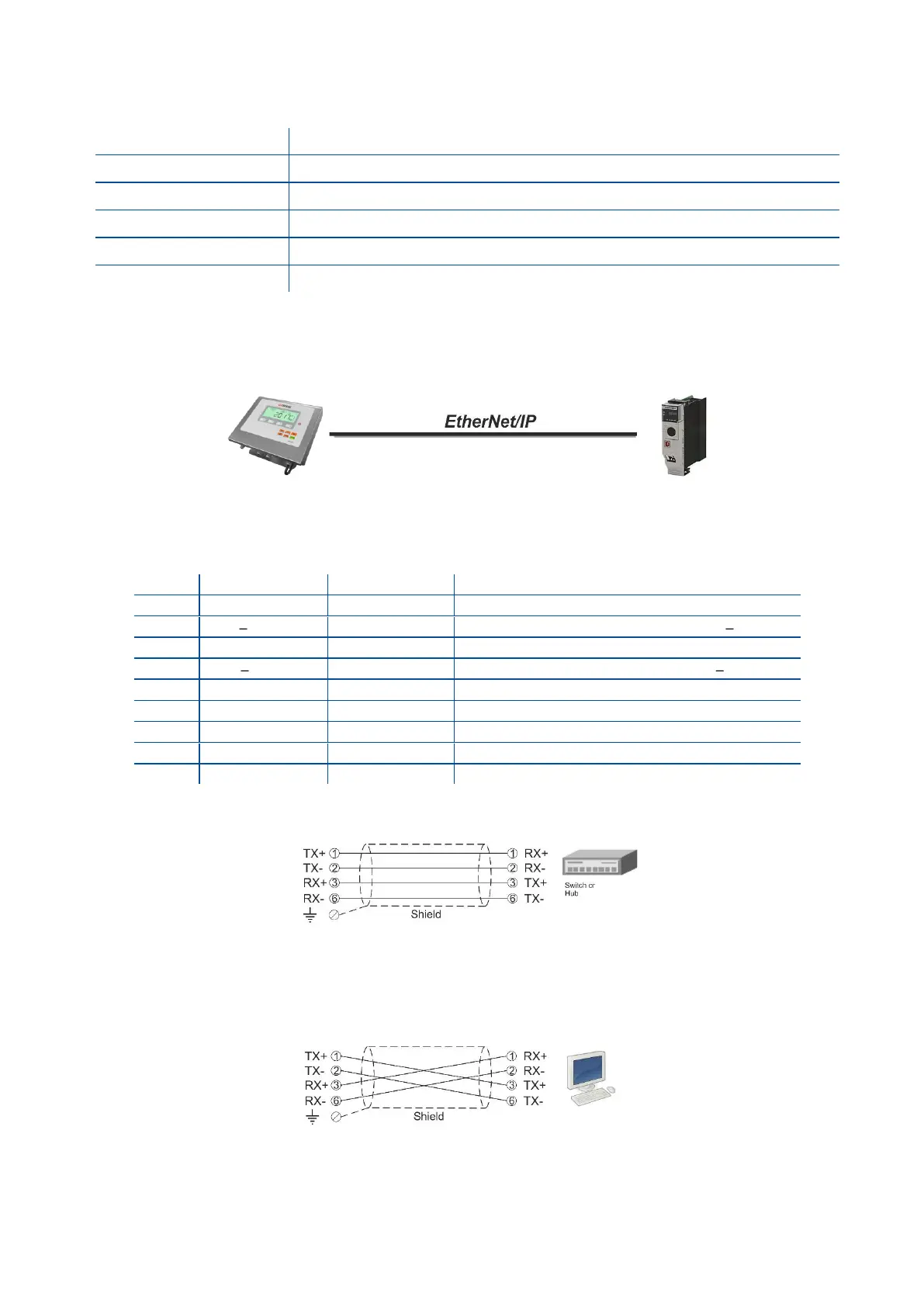

11.11.1 Electrical Connection
Figure 11.14 - PLC Connection
EtherNet/IP Connector pin configuration (RJ45)
Pin
Signal
DIR
Description
1
TX+
Out
Differential Ethernet transmit data +
2
TX
Out
Differential Ethernet transmit data
3
RX+
In
Differential Ethernet receive data +
6
RX
In
Differential Ethernet receive data
4
Not used
Terminated
5
Not used
Terminated
7
Not used
Terminated
8
Not used
Terminated
Shield
Chassis ground
The HUB connection cabling will be a direct connection as shown below:
Figure 11.15 - HUB connection
The PC connection cabling will be done via cross cable as shown below. IP address blocks and gateway
address of weighing terminal and PC should be the same in cross connection.
Figure 11.16 - Cross PC connection
Pin configuration of digital input and output connector is described on page 76.
