FT-111, User Manual Rev. 2.0.0, June 2022 Page 125 of 137
(1) Write this command after writing values to 1
st
Dword (Output) then apply this command with New CMD.
(2) To access the related value, read 1
st
Dword (Input).
Programming steps of frequent used commands:
Reading a weight value:

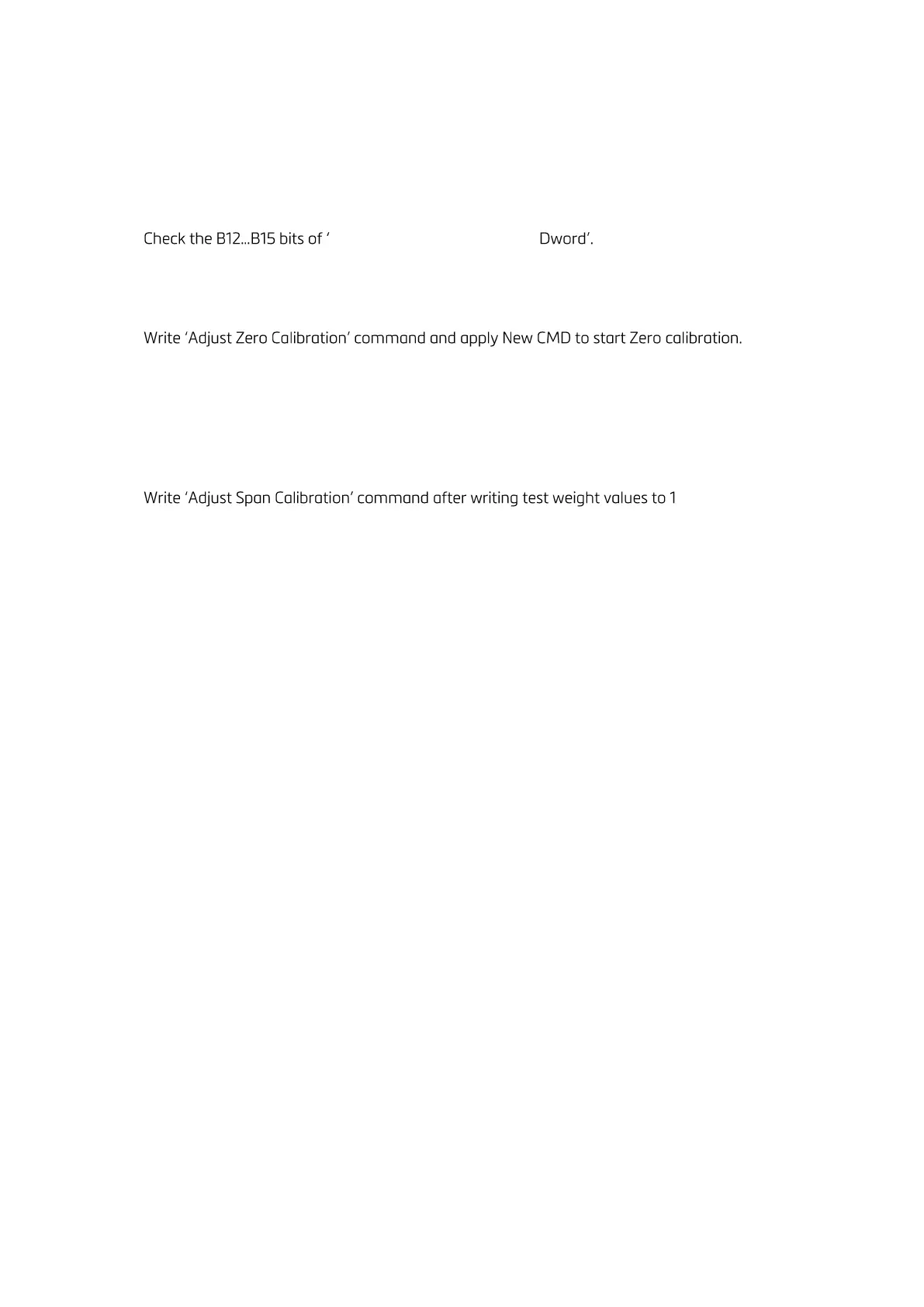

1. FT-111 Output to PLC Input 2
nd
2. If there is not any error, read the weight value ( gross, net or tare ).
Zero Calibration procedure:
1. Check the Bit-0 of Calibration Status. it should be '1'(set) to start adjustment.
2.
3. Check the Bit-1 of Calibration Status. it is '1'(set) during zero calibration process.
4. The Bit-0 of Calibration Status changes to '1'(set) at the end of the Zero calibration.
5. If the Bit-3~Bit-10 of Calibration Status is '1'(set), check the description to understand the calibration
error.
Span Calibration procedure:
1. Check the Bit-0 of Calibration Status. it should be '1'(set) to start adjustment.
2.
st
Dword, then apply this
command with New CMD to start Span calibration.
3. Check the Bit-1 of Calibration Status. it is '1'(set) during span calibration process.
4. The Bit-0 of Calibration Status changes to '1'(set) at the end of the Span calibration.
5. If the Bit-3~Bit-10 of Calibration Status is '1'(set), check the description to understand the calibration
error.
