Application examples

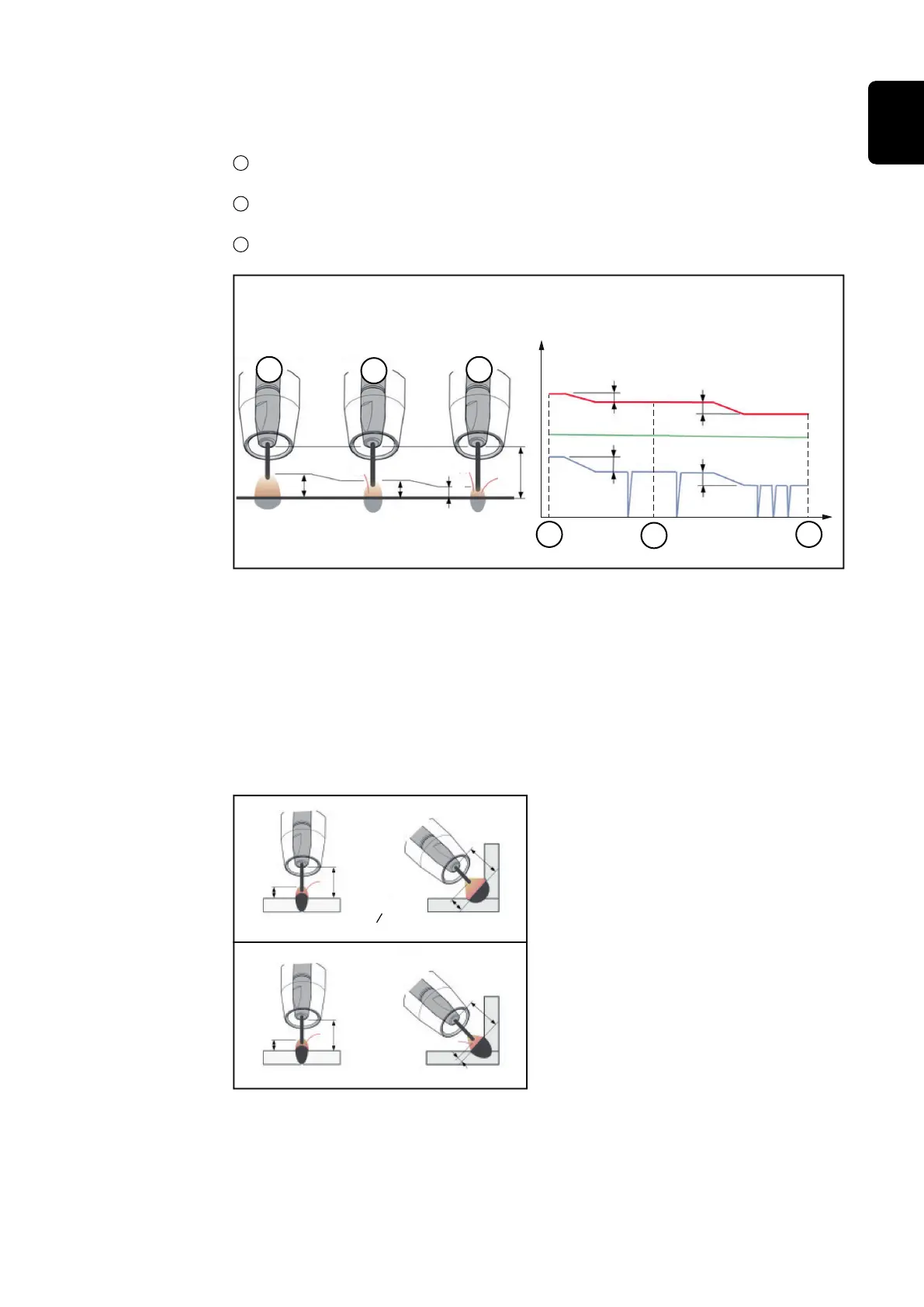

Arc length stabilizer = 0 / 0.5 / 2.0
1
Arc length stabilizer = 0
2
Arc length stabilizer = 0.5
3
Arc length stabilizer = 2
I [A]
v
D
[m/min]
U [V]
t [s]
L
1
> L
2
> L
3
1
2
3
1
2
3
I
v
D
U
L
1
L
2
L
3
*
*
*
Arc length stabilizer = 0 / 0.5 / 2.0
Activating the arc length stabilizer reduces the arc length until short circuits
start to occur. In this way, the advantages of a short, stable and controlled arc
can be used more effectively.
Increasing the arc length stabilizer causes a further shortening of the arc length
(L1 ==> L2 ==> L3). The advantages of a short, stable and controlled arc can be
used more effectively.
Arc length stabilizer with change of weld seam profile and position
L
1
= L
2
L
1
L
2
*
*
*
L
1
L
2
L
1
= L
2
Arc length stabilizer not activated
A change of weld seam profile or weld-
ing position can negatively affect the
welding result
Arc length stabilizer activated
Since the number and duration of the
short circuits is controlled, the proper-
ties of the arc stay the same if the
weld seam profile or welding position is
changed.
I ... Welding current v
D
... Wire speed U ... Welding voltage
* ... Number of short circuits
