Fronius TPS/i COMPACT - Connections, Switches and Mechanical Components

Connections, switches and mechanical compon-
ents
Connections,
switches and
mechanical com-
ponents
(1)
(2)
(3)
(4)
(5)

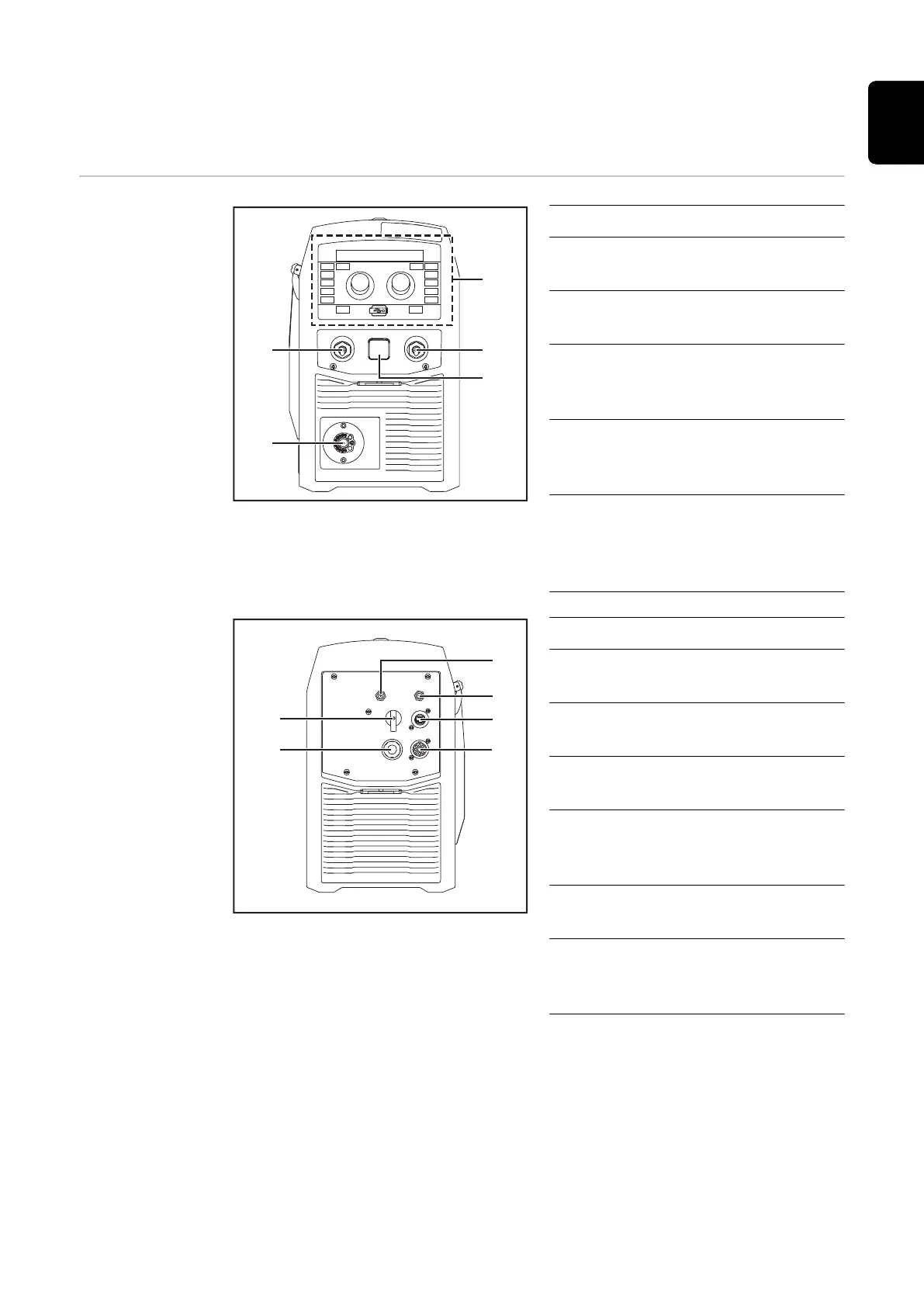

Front
No. Function
(1) Control panel with display
for operating the power source
(2) (+) current socket with bayonet
latch
(3) Blanking cover
reserved for the TMC connec-
tion socket of the TIG option
(4) Welding torch connection
for connecting the welding
torch
(5) (-) current socket with bayonet
latch
used to connect the grounding
cable during MIG/MAG welding
(11)
(6)
(7)
(10)
(8)
(9)
Rear
No. Function
(6) MIG/MAG shielding gas con-
nection socket
(7) Blanking cover/TIG shielding
gas connection socket (option)
(8) Blanking cover/Ethernet con-
nection socket (option)
(9) Blanking cover/SpeedNet Con-
nector connection socket (op-
tion)/external sensor (option)
(10) Mains cable with strain relief
device
(11) Mains switch
for switching the power source
on and off
