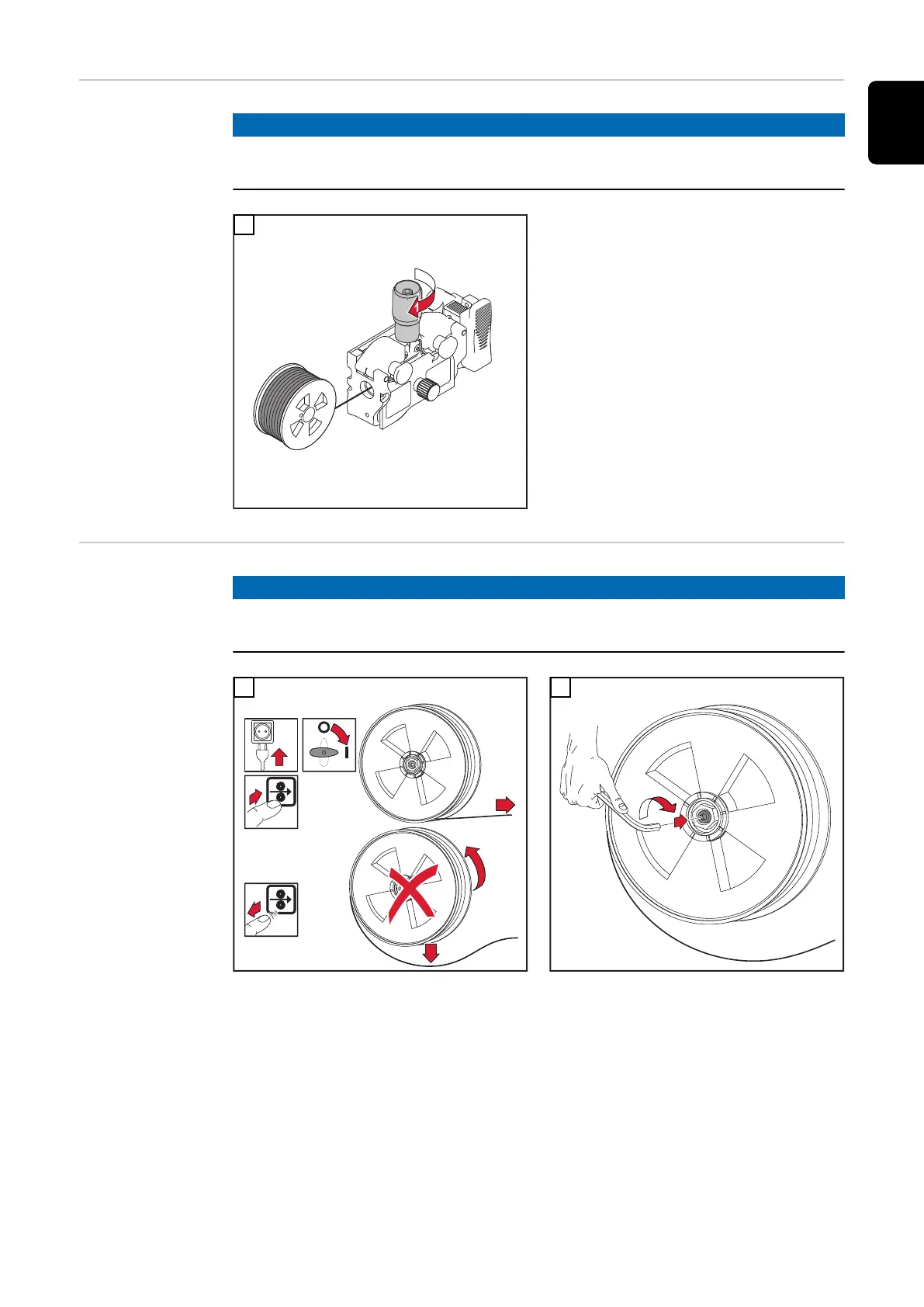

Fronius TPS/i COMPACT - Setting the Contact Pressure; Adjusting the Brake

Setting the con-
tact pressure
NOTE!
Set the contact pressure in such a way that the wire electrode is not deformed
but nevertheless ensures proper wirefeeding.
1
Contact pressure standard values for
U-groove rollers
Steel:
4 - 5
CrNi
4 - 5
Tubular cored electrodes
2 - 3
Adjusting the
brake
NOTE!
After releasing the torch trigger the wirespool should stop unreeling.
Adjust brake if necessary.
4
3
STOP
6
7
5
1
2
1
2
1
2
